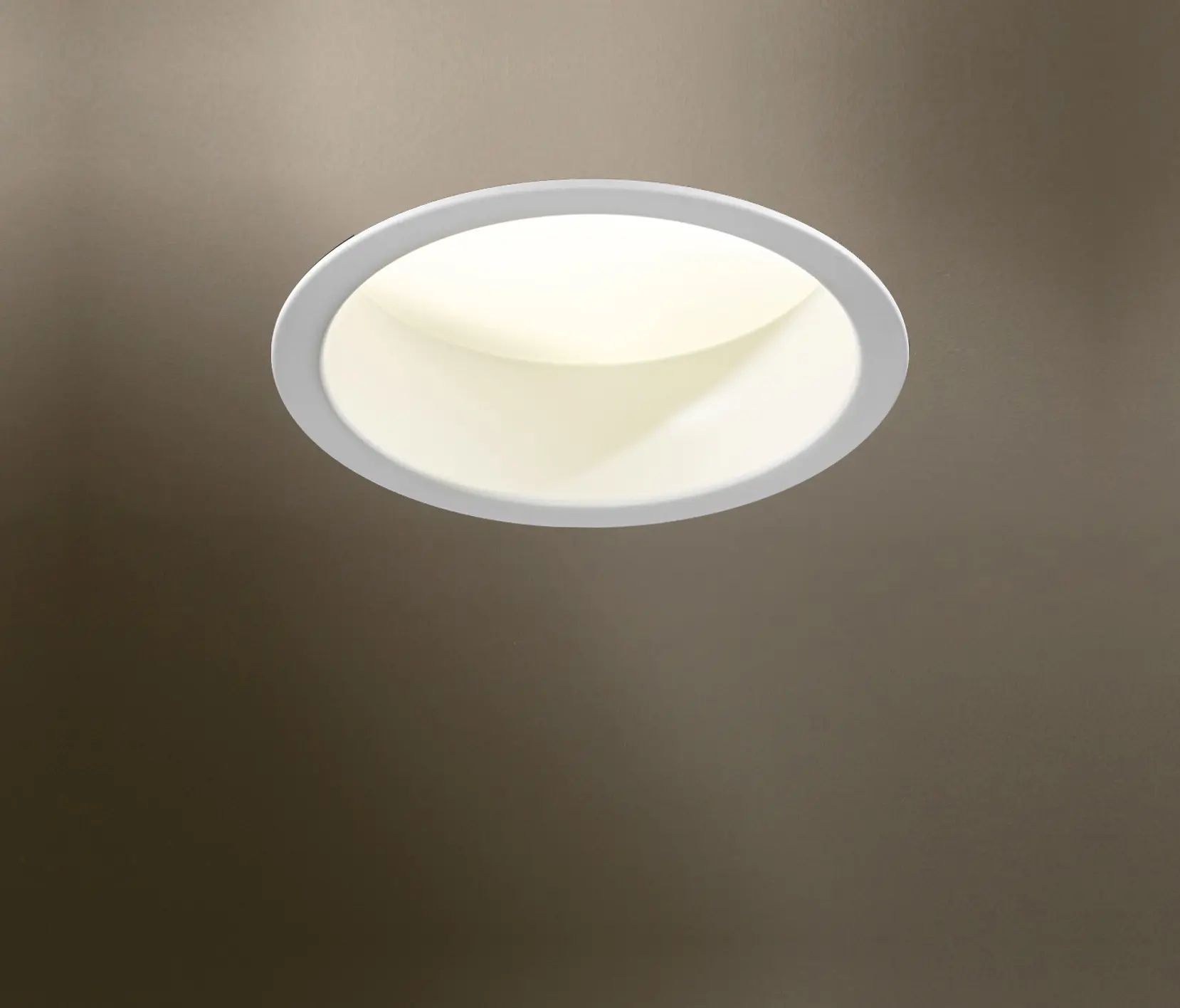

Siebe TC-DEL/TC-TEL

The SIEBE is a recessed downlighter for general lighting applications in an architectural environment. The design of the SIEBE is timeless and pure, it just gives an idea of a hole in the ceiling. The fixture is a well balanced compromise between efficiency and light comfort due to its innovative reflector. The diffussor is recessed in the fixture which gives the SIEBE also good anti-glare properties. The SIEBE is very easy to install in all types of ceilings (plasterboard, concrete, system, rockwool, etc…) without the need of extra accessories. Lamp replacement is also a piece of cake.

The SIEBE is standard available in textured white finish, other colours are also available on demand.

Dimming is possible by simply connecting the dimmable ballasthousing to the fixture.

Materials and finish:

Installation bracket: Galvanized Steel

Housing: Powdercoated Aluminium

Diffussor: Tempered float borosilicate glass

Reflector: Silver/Alumium + Mirror polished

Installation and lamp replacement:

First of all is installing the installation bracket on the ceiling, this can be done without extra tooling for all types of false ceiling systems by simply clamping, for other ceiling systems the bracket can be attached with standard screws or a fixation kit. In this case the ceiling needs to be finished by plaster.

Second thing is connecting the ballasthousing to the lamphousing. This lamphousing can now be fixed on the installation bracket and with the 3 screws you can also adjust the fixture to correct level.

After this you can install the lamps and then you can snap on the diffussor on the housing.

Lamp replacement: Removing the diffussor by pulling, changing lamps, and refitting the diffussor (diffussor fits with snaps)

Technical data:

Cut-out: ø 280mm

Installation height : 180mm

Luminaire dimensions: ø300 X185mm

Weight: 2,2 kg

Adjustability: Diffuse Light

Accessories:

230114 – Ballast Housing 2X26/32/42W EVG not dimmable

230123 – Ballast Housing 2X26/32/42W EVG 1-10V dimmable

Electrical data:

Lamp type: TC-DEL 2X26W/TC-DEL 2X32W/TC-TEL 2X42W

Lamps: 2

Lampholders: G24q-3/Gx24q-3/Gx24q-4

Control gear: Separate ballasthousing

Input supply voltage: 230V-50Hz via ballasthousing

Connector block: WIELAND GST 18i3

Glow wire resistance: 960°

IP rating: IP20

Protection classification: II
