Eclips HIPAR30

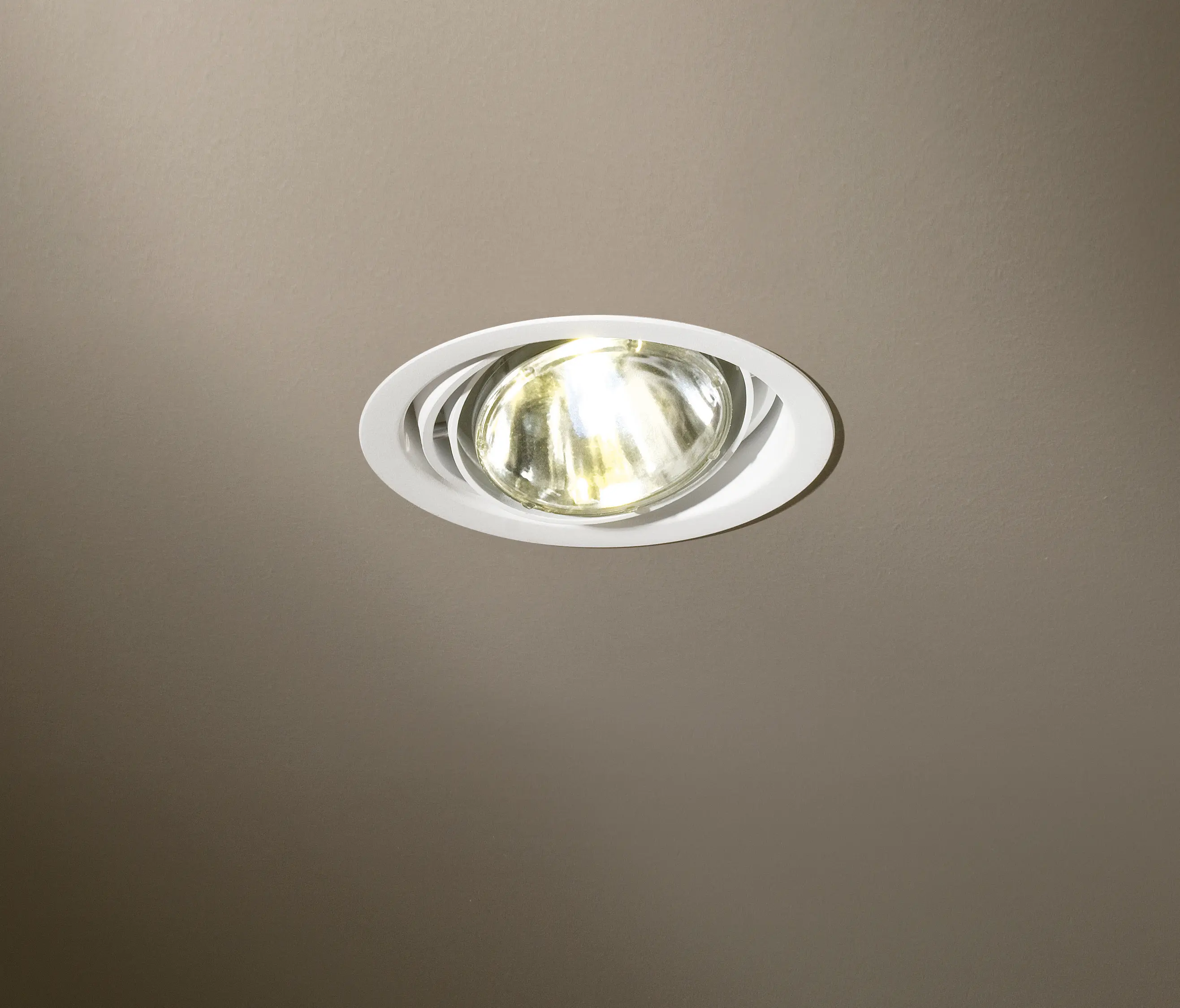

The ECLIPS is a recessed fixture for double lamps which fits into the range of the ECLIPS fittings. The fixture is easy to install with 4 torsion springs. The frame has an oval shape. The complete body & lamprings are 100% made out of aluminium.

The Fixture exists in 2 finishes; textured white powdercoated & textured black powdercoated..

Installation frames and boxes are also available.

Materials and finish:

Housing and lamprings: 100% Aluminium (AlMgSi0,5) + powdercoated

Installation and lamp replacement:

The luminaire fits into an oval hole into the ceiling and is hold by 4 torsion springs.

Lamp replacement is very easy by just pulling on the lamps (hold by springs), and unscrewing the G53 socket

Technical data:

Cut-out: 2X diameter 158 with center distance of 140mm

Installation height: 115mm

Luminaire dimensions: 318X178X115mm

Weight: 2,5 kg

Adjustability: Lamp can be oriented in all directions by gimble system

Accessories: 341077 – Installation Box for plaster / 341097 – Installation Box for concrete

Electrical data:

Lamp type: QR111 20-100W

Lamps: 2

Lampholders: G53

Control gear: Remote transfo

Input supply voltage: 12V-50Hz

Connector block: 2x2,5mm²

Glow wire resistance: 960°

IP rating: IP20
