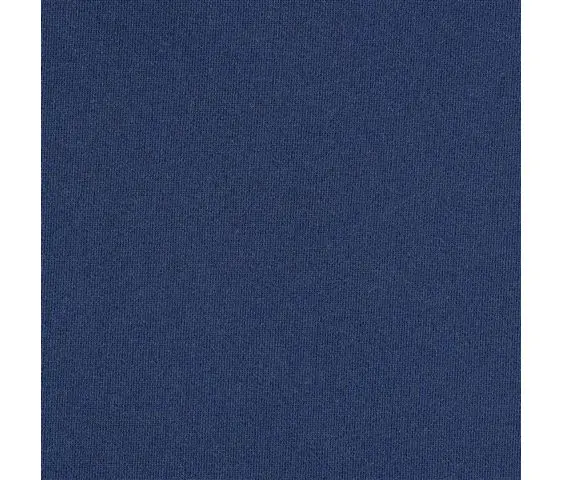

K303620

TOTAL WEIGHT 685 ± 65 g/m2

WIDTH Min. 1,37 m

THICKNESS 1.15 ± 0.16 mm

SUBSTRATE Polyester

TENSILE STRENGTH warp >= 343 N / fill >= 215 N

ELONGATION warp >= 40 % / weft >=97 %

TEAR STRENGTH warp >= 29 N / weft >= 26 N

STITCHING STRENGTH längs >= 50 N / quer >= 26 N

ADHESION warp >= 37 N / weft >= 29 N

CROCKING RESISTANCE dry: good / wet: good

COLD CRACK RESISTANCE Roller method -23 °C

FIRE RETARDANCY:

FMVSS 302

UNE 23.727-90 / M2

DIN 4102 B2

NFP 92503 / M3

IMO A 652 (16)

FAR 25.853 b(4)

Ap. F Part. 1 (a) (1) (ii)

FTMS 5903

Boston Fire IX-1

California tech. Bulletin 117

Criteria A & B

SURFACE PROTECTION Silverguard Permablok
