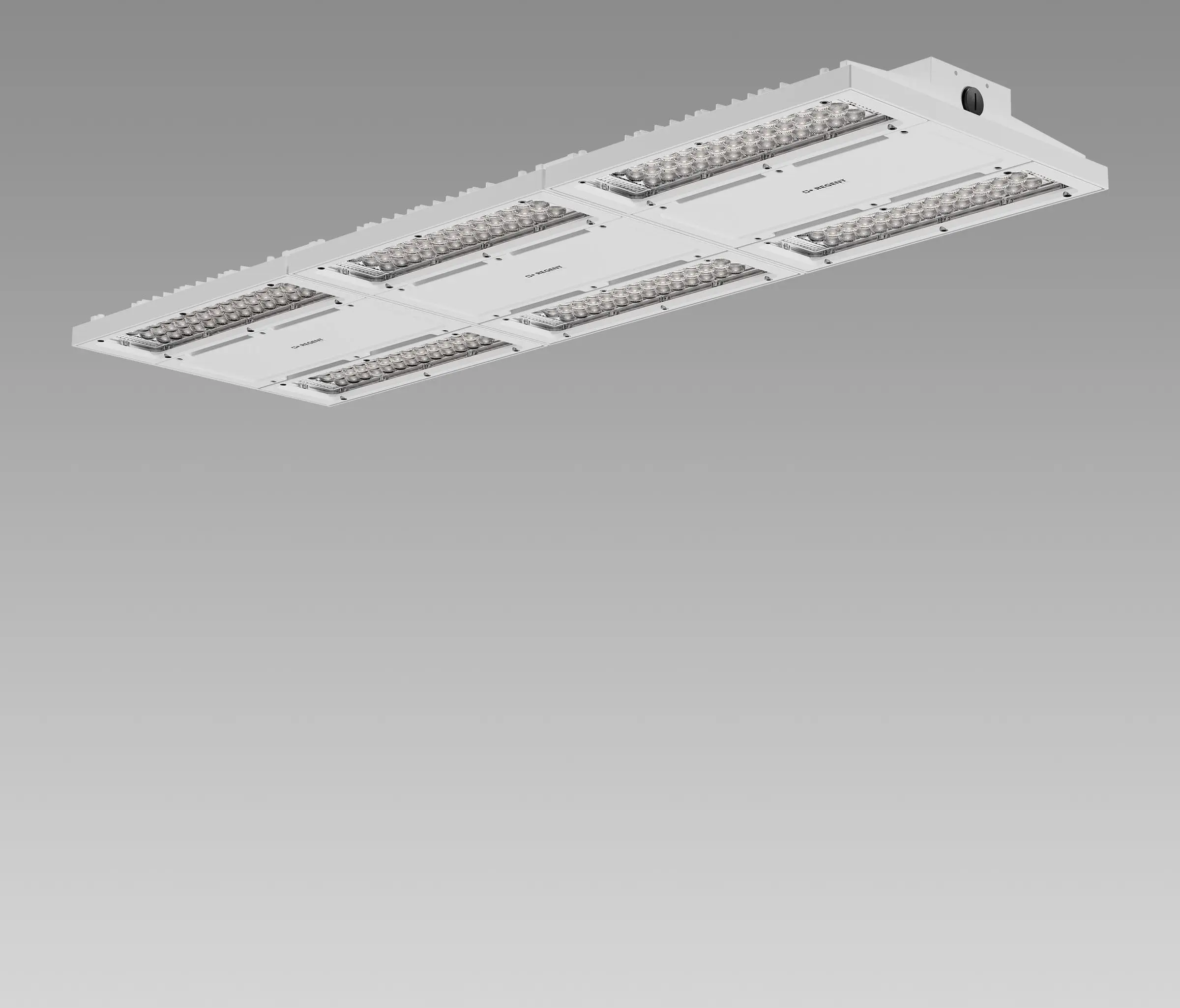

Arny 2

If you are looking for a truly powerful lighting solution, our high-bay luminaire ARNY 2 marks the end of your quest. Thanks to its extraordinarily high lumen output, ARNY is especially suitable for applications in high-ceilinged spaces. With an IP rating of IP66, and a cover made of PC or a combination of PMMA, this luminaire meets the stringent requirements laid down for industrial applications, even in heavily polluted environments. A further unique feature: the entire system is IP54-rated when ARNY 2 is mounted on tried and tested TRAQ mounting rail. In order to provide solutions that are as tailor-made as possible, ARNY 2 is available in three different sizes; impact-resistant versions, and versions for application under extreme temperatures, are also available.

FEATURES

Extremely high luminous flux of up to 48'000 lm

Excellent thermal management – LED modules and control gear housing are thermally separated

IP66 protection rating

IP54-rated when mounted on TRAQ track

High luminous efficacy of up to 160 lm/W

Lens module available in 2 versions: PMMA (e.g. for environments subject to oil or chemicals) or PC (protected against ball shots)

Integrated sensors (PIR) optional

Mounting accessories to be ordered separately

SPECIFICATIONS

For pendant mounting and mounting on ceilings, walls and mounting rail TRAQ

Housing made of die-cast aluminium, white

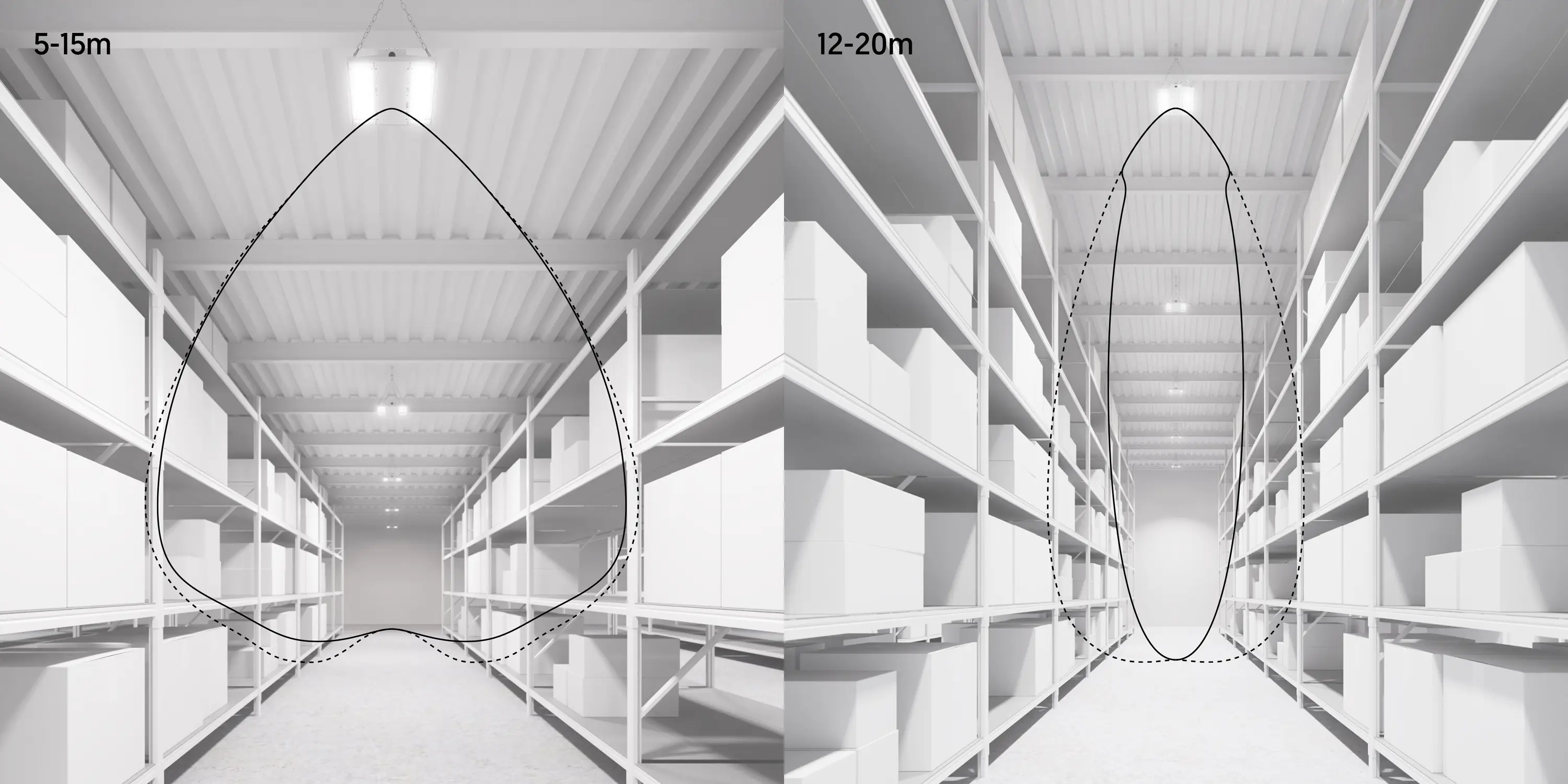

Beam angle: wide or narrow beam

Dimmable digital DALI2

Flicker-free light with amplitude dimming

for ambient temperatures –20 to +55 °C or –30 to +65 °C (for extreme temperatures)

Impact strength IK10 (PC) or IK08 (PMMA)
