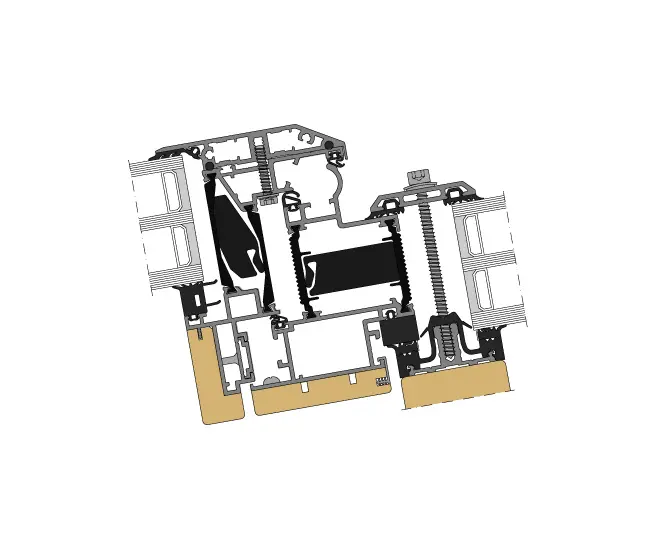

FRAME+ 100/120 RI-T
- Inicio/Contramarcos/
FRAME+ 100/120 RI-T
Acerca de este producto
Architonic ID: 20748988
Use | Application:
- rooflight window
- opening element integrated in the THERM+ glass roof systems
Characteristic:
- Aluminium timber rooflight windows
Dimension:
- building depth of 100 or 120 mm
- sash weight up to 225 kg
- max. sash dimensions 3.500 x 1.500 mm resp. 2.100 x 2.500
Concepto
- Aluminium timber window with identical processing technology of standard aluminium windows
- Real wood cladding on the inside as a decorative element, perfectly suited to the optical appearance of the curtain wall; wide range of different types of wood
- Real wood cladding on the inside with simple screw connection technique on production or construction site, exchangeable after installation
- Integral sash made of dimensionally stable aluminium-THERMORIT composite construction without considering the interior timber frame, therefore exchangeable at any time
- Compensation of glass infill thickness by special clip gaskets
Este producto pertenece a la colección:
Especificaciones
Material
Aluminio, Metal
