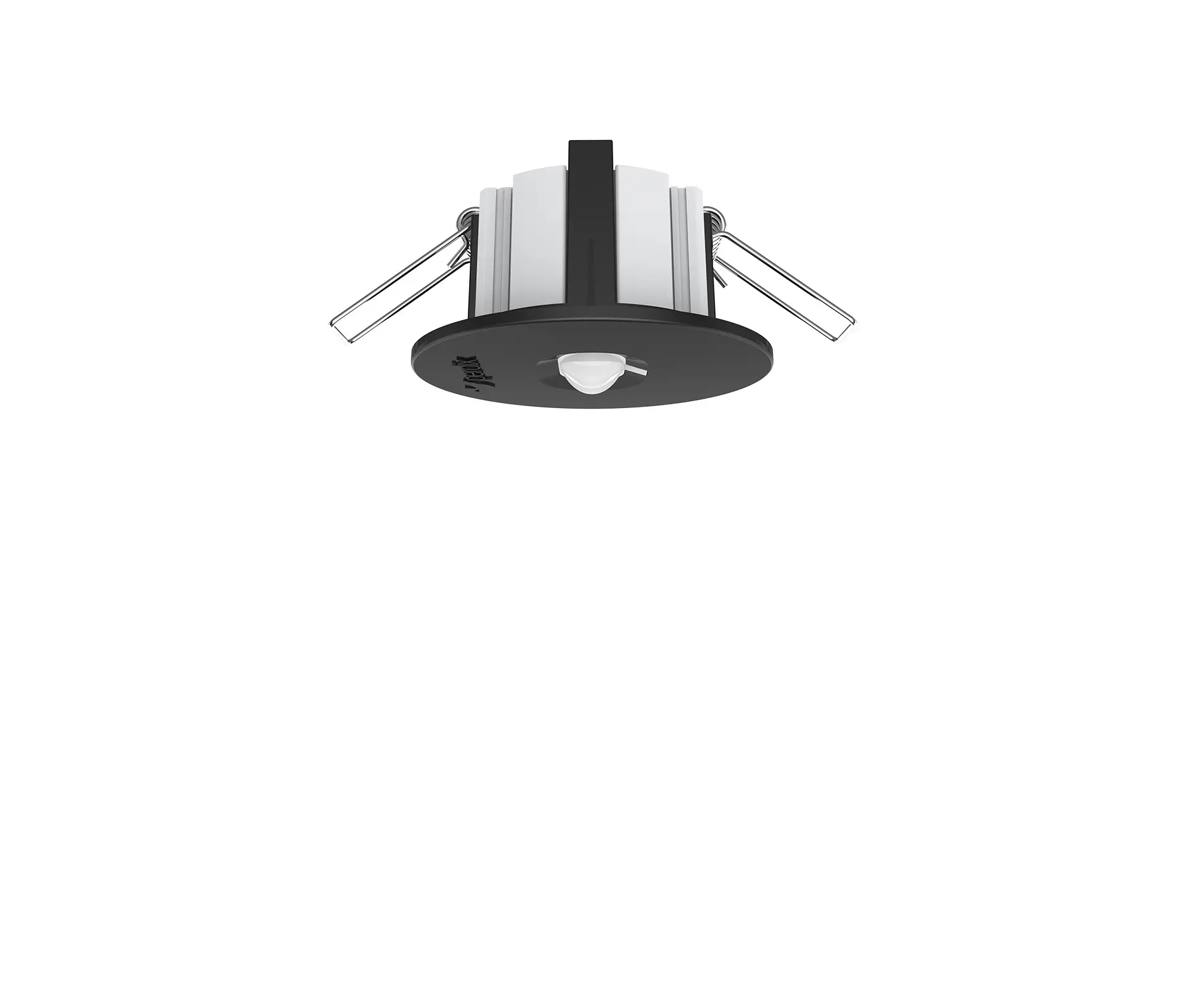

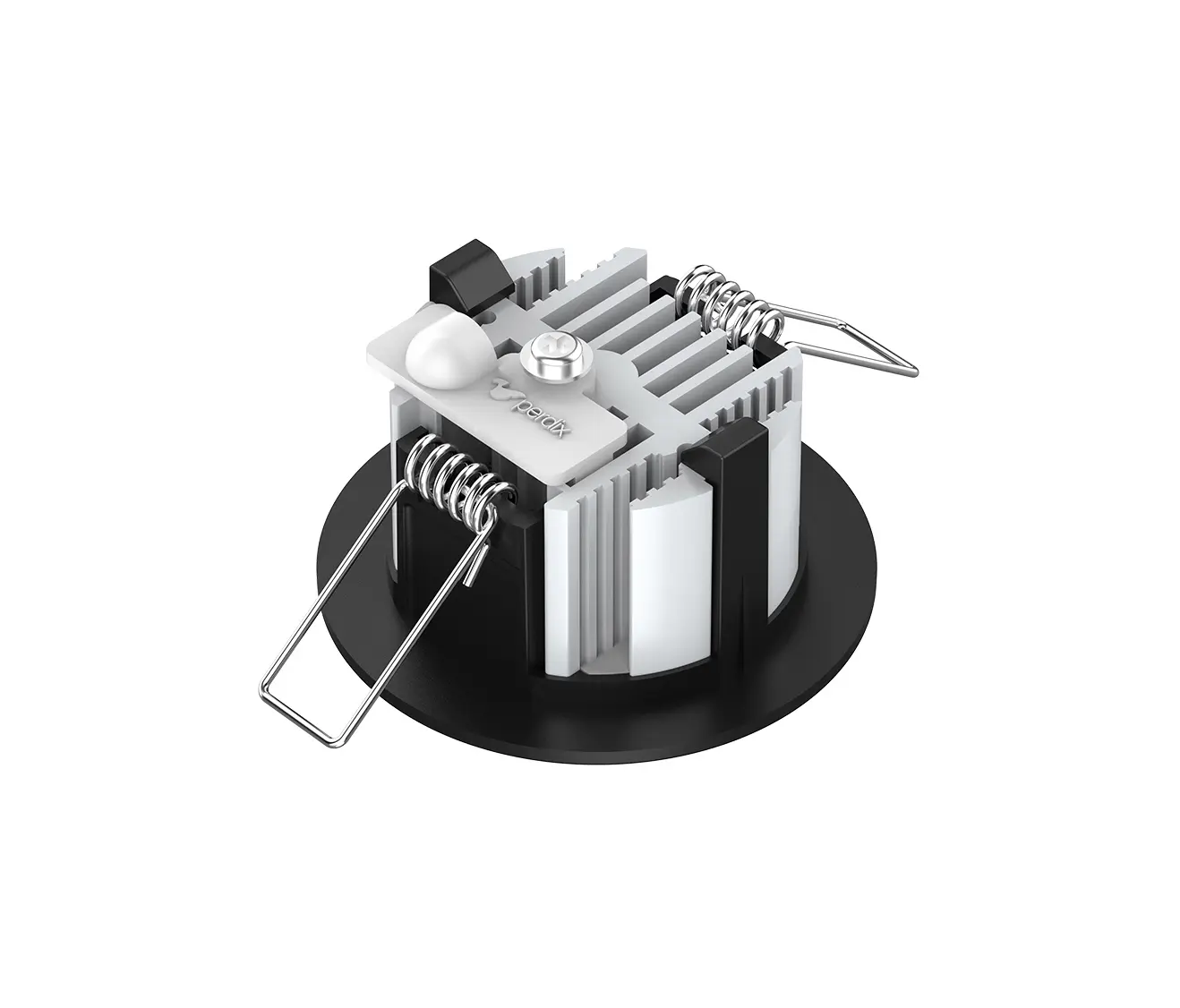

EMER® circle 1.0
Architonic ID: 20732942
Luminaire type: LED emergency light spot downlight module
Material: polycarbonate
Optics: lens 150° beam angle (anti-panic lighting) | C0°: 165° C90°: 65° (escape route lighting)
Light color | Color temperature: 4000 Kelvin (neutral white)
Color tolerance: 3-step MacAdams binning
Color rendering Ra: 80
Version: white (RAL9016) | silver (RAL9006) black (RAL9005) | other RAL colors a. A
Protection class: IK03 | protection class II | IP20
Light control: with self-test | emergency light: 3 hours
Service life: 50'000 hours at 80% luminous flux
Guarantee | Service: 5 years
Miscellaneous: all extension rings and lens optics (anti-panic and escape route lighting) included in the scope of delivery
Measurements:
ppot downlight: h: 30mm
outer diameter: ø55mm, ø80mm and ø140mm
cut-out ø45mm, ø68mm and ø120mm all in one
emergency battery kit: h: 25mm | w: 35mm | L: 190mm
Concepto
The EMER®SIGN emergency luminaires come with a self-test function and an integrated battery with a 3-hour burning time. All safety luminaires include pictograms according to SN EN ISO 7010. They are available as surface-mounted, recessed, pendant, and track versions.
The EMER®CIRCLE 1.0 is the recessed version of the emergency exit luminaire and comes with extension rings. The EMER®CIRCLE 2.0 can be used as a recessed or surface-mounted version. Both models include a self-test function and an integrated battery with a 3-hour burning time.
The EMER®TRACK are emergency luminaires | anti-panic lighting with a self-test function and an integrated battery with a 3-hour burning time for track systems. They are suitable for shops, museums, etc.
