Loop Cone Table #169

Loop Cone Table may be combined with different seating elements. This enables a large number of combinations. For instance Loop Cone Table may be combined with Loop Arc to create a wave pattern of seating with tables interposed. Using HopOp seating bollards on the other hand creates round groups of seating.

TECHNICAL DATA

Material

Rotation moulded polyethylene, 6 mm thick, dyed.

UV-resistant, stands up to weather, wear and tear. The material is suitable for granulation and recycling.

Surfaces and friction

The products have a textured/granulated surface due to abrasive blasting of the mold. This process enhances the friction and makes the surface less slippery. Top: Smooth surface.

Dimensions

Top: Ø1130mm

Bottom: Ø810mm

H700mm

Combinations

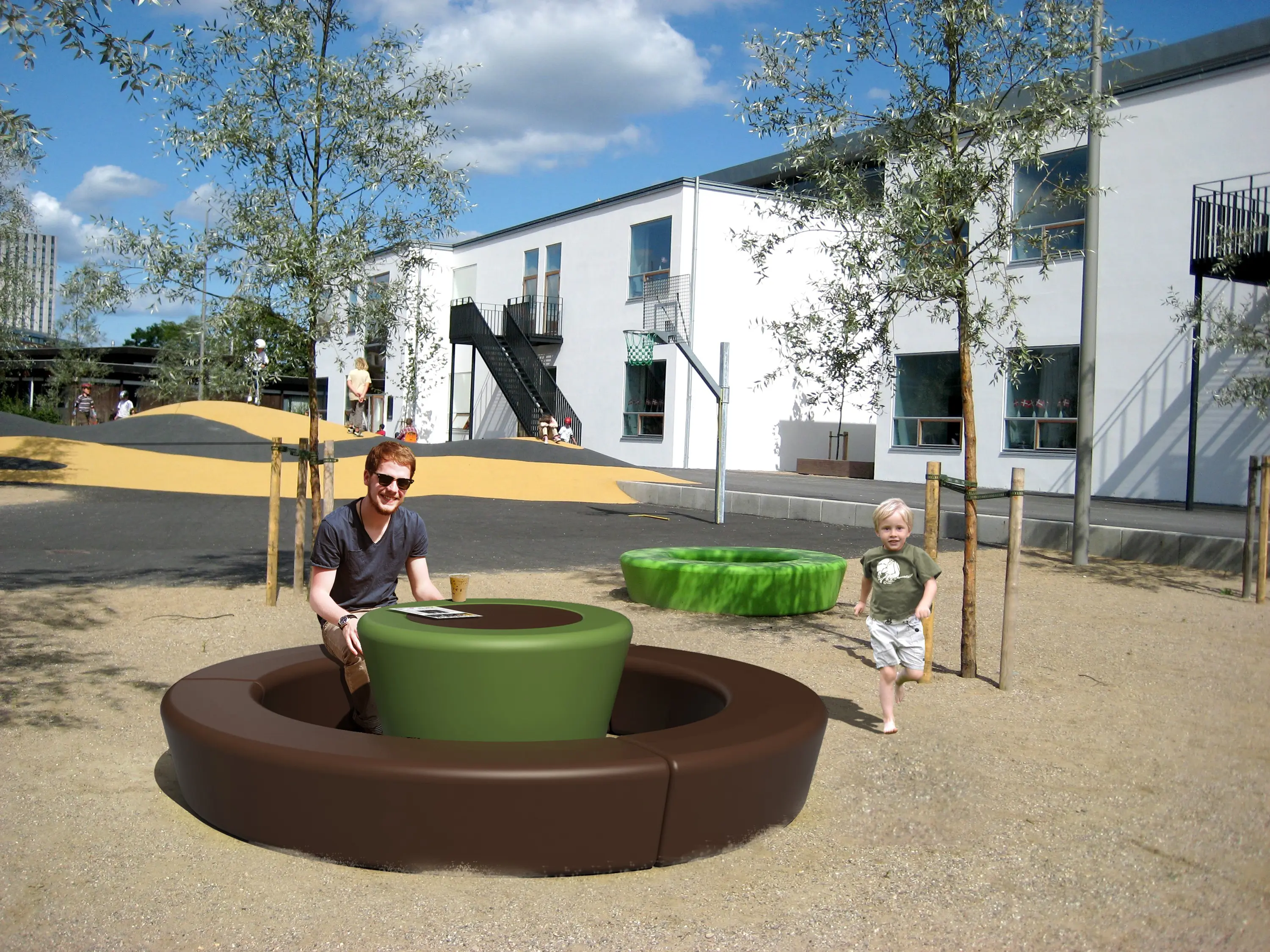

Loop Cone Table can be combined with various numbers of HopOp (recommended no: 6), or Loop Arc, winding around the table or forming a ring (requires 3 x Loop arc).

Color Choices

Loop Cone Table is composed of Loop Cone + Tabletop, which must be ordered separately. Loop Cone and tabletop

Mounting

For surface fixation or fill with water/sand. Brackets to be ordred separately. Please see mounting instruction.

Recycled and ecolabelled*

Recycled version is made from 100% recycled polyethylene plastic, of which 85% comes from internal waste and production surplus, while 15% comes from. polyethylene bags.

Recycled version is ecolabelled, promoting circular economy and fulfils UN’s sustainable development goal no.12 – Responsible consumption and production.

Recycled version is available in anthracite variant, yet colour can vary from order to order.

Maintenance

This product withstands most cleaning agents and chemicals and can be cleaned using a high-pressure cleaner. The colour can be revived using vinyl cleaner.

Product code

169 0101 Loop Cone red / 22kg

169 0102 Loop Cone lime green / 22kg

169 0103 Loop Cone orange / 22kg

169 0104 Loop Cone yellow / 22kg

169 0109 Loop Cone purple / 22kg

169 0111 Loop Cone sandstone / 22kg

169 0113 Loop Cone grey / 22kg

169 0117 Loop Cone blue / 22kg

169 0115 Loop Cone pastel blue / 22kg

169 0116 Loop Cone mocha brown / 22kg

169 0118 Loop Cone olive green / 22kg

169 0150 Loop Cone white / 22kg

169 0120 Loop Cone recycled anthracite / 26kg 178 0101 Tabletop f. Loop Cone red / 5kg

178 0102 Tabletop f. Loop Cone lime green / 5kg

178 0103 Tabletop f. Loop Cone orange / 5kg

178 0108 Tabletop f. Loop Cone anthracite / 5kg

B11 Bracket for surface mounting

Loop Cone Table is a combination of Loop Cone + Tabletop. When ordering, use product code 169 + 178.

Standard colours (approx. RAL)

Red: RAL 3020

Orange: RAL 2003

Lime green: RAL 120 70 60

Variant colours (approx. RAL)

Yellow: RAL 1018

Purple: RAL 4004

Sandstone

Grey: RAL 7015

Blue: RAL 5010

Pastel blue: RAL 5024

Mocha brown: RAL 8028

Olive green: RAL 6025

White: RAL 9003 Recycled: Anthracite*
