Mid-Fill F-48

Name: Mid-Fill F-48
Brand: Banker Wire
SKU: F-48

Mallas metálicasporBanker Wire

Inicio

Mallas metálicas

Mid-Fill F-48

Acerca de este producto

Architonic ID: 20719998

SKU: F-48

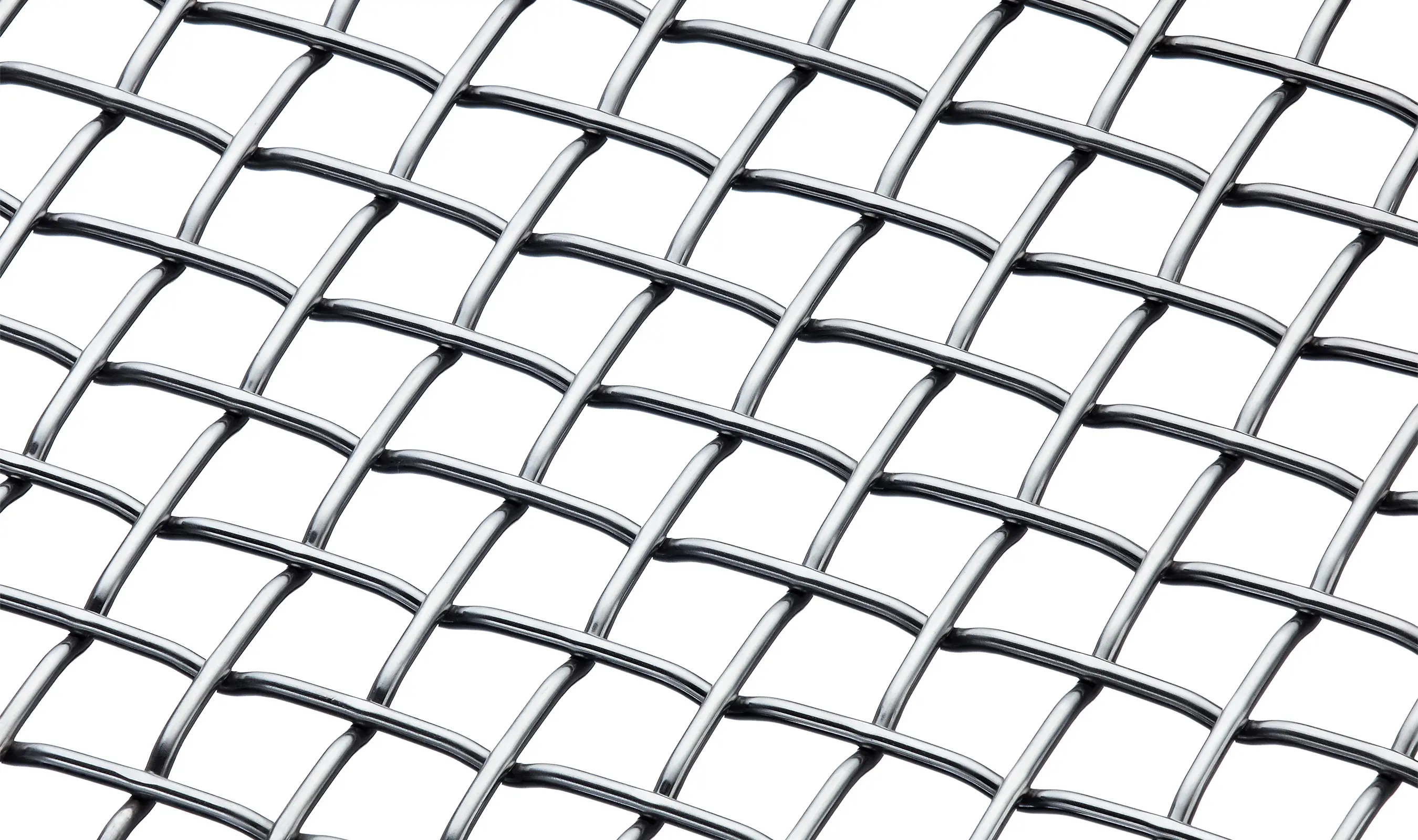

The F-48 architectural wire mesh pattern is a strong flat top crimp design suitable for all applications. The F-48 Mesh:Diameter ratio along with the typical Flat Top weave characteristics, creates a mesh with a heavy surface mass. Flat top weaves can be scaled and customized to suit many different functions. From fine spacings and diameters to coarse and heavy diameters. Rectangular patterns are easy to create as well to achieve a desired aspect ratio.

PATTERN DETAILS

PERCENT OPEN:70.2%

OVERALL THICKNESS:0.324

CRIMP STYLE:FTFT

ASPECT RATIO:1.00:1

OPENING LIMITATION:0.838

WEIGHT:1.77 lbs./sq. ft.

Concepto

Mid-fill architectural woven wire mesh provides an intricate pattern that can serve as a decorative mesh that is available in a number of raw materials. These patterns can also be designed with a number of secondary finishes to bring out color and texture.

Este producto pertenece a la colección:
