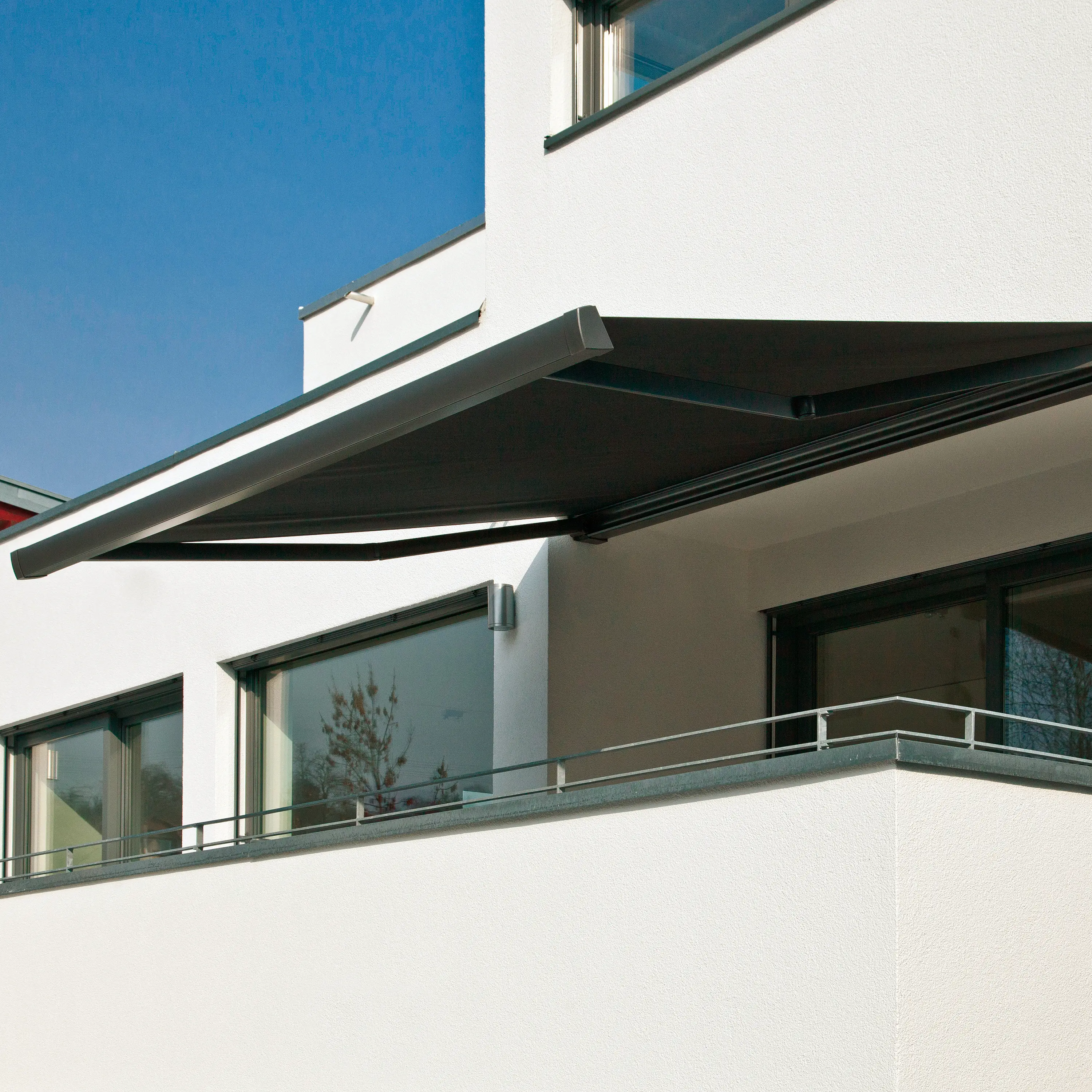

Innovative articulated arm awning in a slim design with a one-piece aluminum cassette and matching front profile for year-round protection of the fabric and technology from the weather. Fabric roller made of galvanized sheet steel (Ø 78 mm) as well as lateral functional bearings with integrated tilting joint including roll-up protection. Inclination angle adjustable via adjusting screws from 5° to 45°. Crossed articulated arms, power transmission by means of a hinge. The awning is pushed into the side covers from below and secured using a special spring element and concealed screws. Drive via manual crank operation or various electric drives. Seams in the direction of failure made by means of ultrasound using welding and bonding technology.
System width: 191 to 500 cm
Projection: 150 to 350 cm
Tilt: 5° to 45°
Concepto
MHZ awnings
Timelessly elegant classics
The MHZ awnings provide you with beautiful and intelligent sun protection. As articulated arm, window or facade awnings, they do a first-class job both optically and technically- even in large quantities. They keep out sunlight and heat and ensure a pleasant climate. In our collection you will find over 140 different color and fabric variants. The fabrics are lightfast, colorfast and have a dirt and water-repellent surface. MHZ awnings reliably protect you from harmful UV rays. We manufacture our awning fabrics to measure. We process them either with a high-quality UV-resistant sewing thread or using innovative welding and bonding technology.
- Made to measure according to your wishes
-Elegant look
-Optional: closed construction
-Mounting on wall, ceiling or niche
-Comfortable operation
- High-quality made-up
