Acerca de este producto
Architonic ID: 20273731
MECHANICAL DATA
Mounting: ceiling
Luminaire body: aluminum
Power supply: inside the luminaire
OPTICAL DATA
Light distribution: symmetrical, asymmetrical
Lighting: direct
Contains light source: yes
Type of source: LED
Wiring: standard
Lenses available: 10°, 20°, 30°, 40°, 60°, 45x10°, 8° wall-washing, 45° wall-washing, asymmetrical
OTHER DATA
AVAILABLE ON REQUEST DALI, 1-10V, 6500K, amber, red, blue, green, CRI>90
Application: lighting of external communication routes or building facades
1019lm / 8W / 2700K / Ø140 H=140mm
1095lm / 8W / 3000K / Ø140 H=140mm
1165lm / 8W / 4000K / Ø140 H=140mm
2028lm / 16W / 2700K / Ø140 H=140mm
2191lm / 16W / 3000K / Ø140 H=140mm
2331lm / 16W / 4000K / Ø140 H=140mm
Concepto

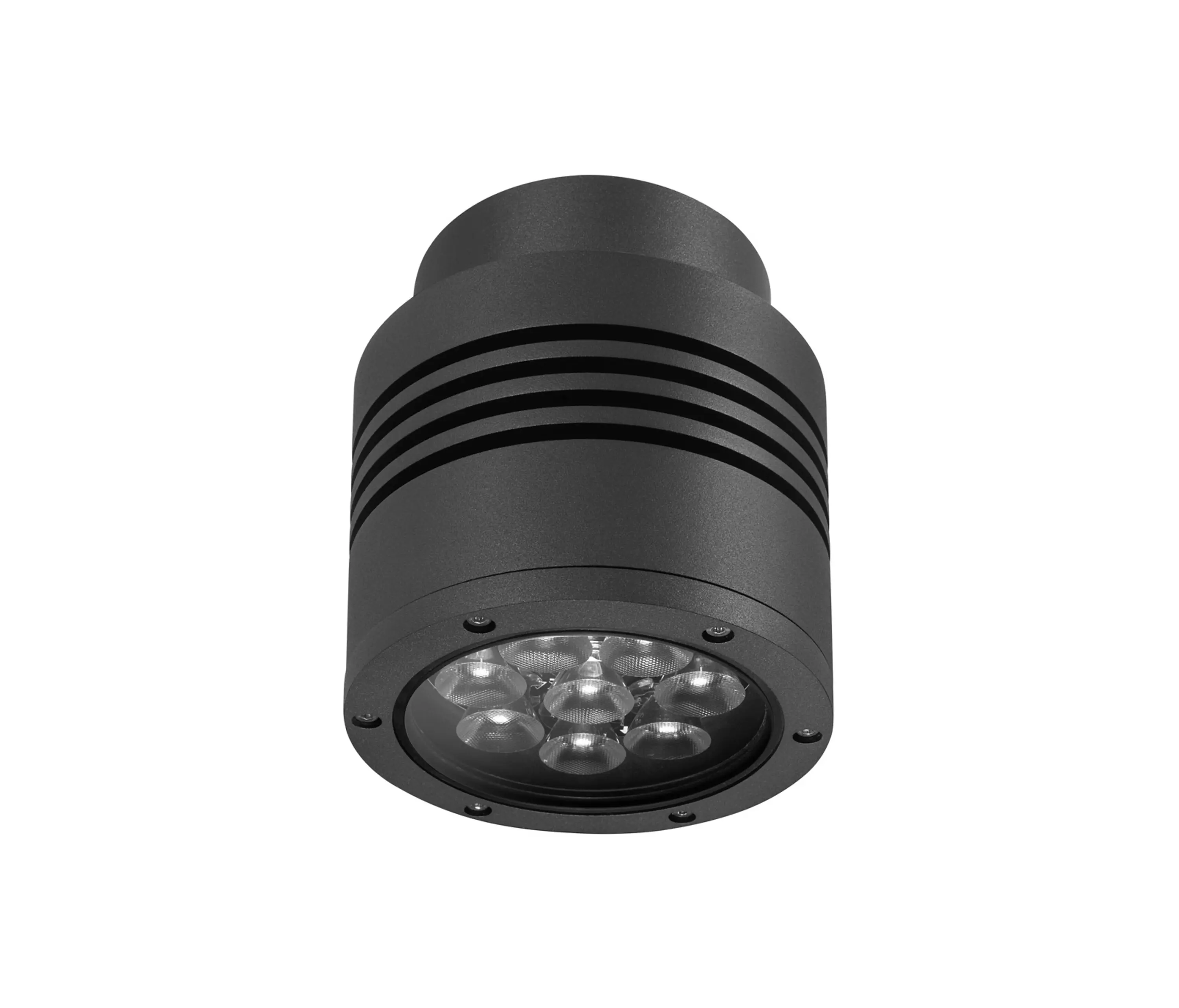

Outdoor PDN luminaire mounted directly to the ceiling. It enables lighting of external communication routes or building facades. The optics mounted in the luminaire allows to adjust the light beam angle (from narrow to wild) to the user’s needs.
Este producto pertenece a la colección:
Especificaciones
Category
Iluminación general
Feature
Lámparas LED
Usage
Exterior / Jardín
