NODO | INTRO - System, Track
- Inicio/Perfiles de iluminación/
NODO | INTRO - System, Track
Acerca de este producto
Architonic ID: 20019117
SKU: 11010-11310-11510

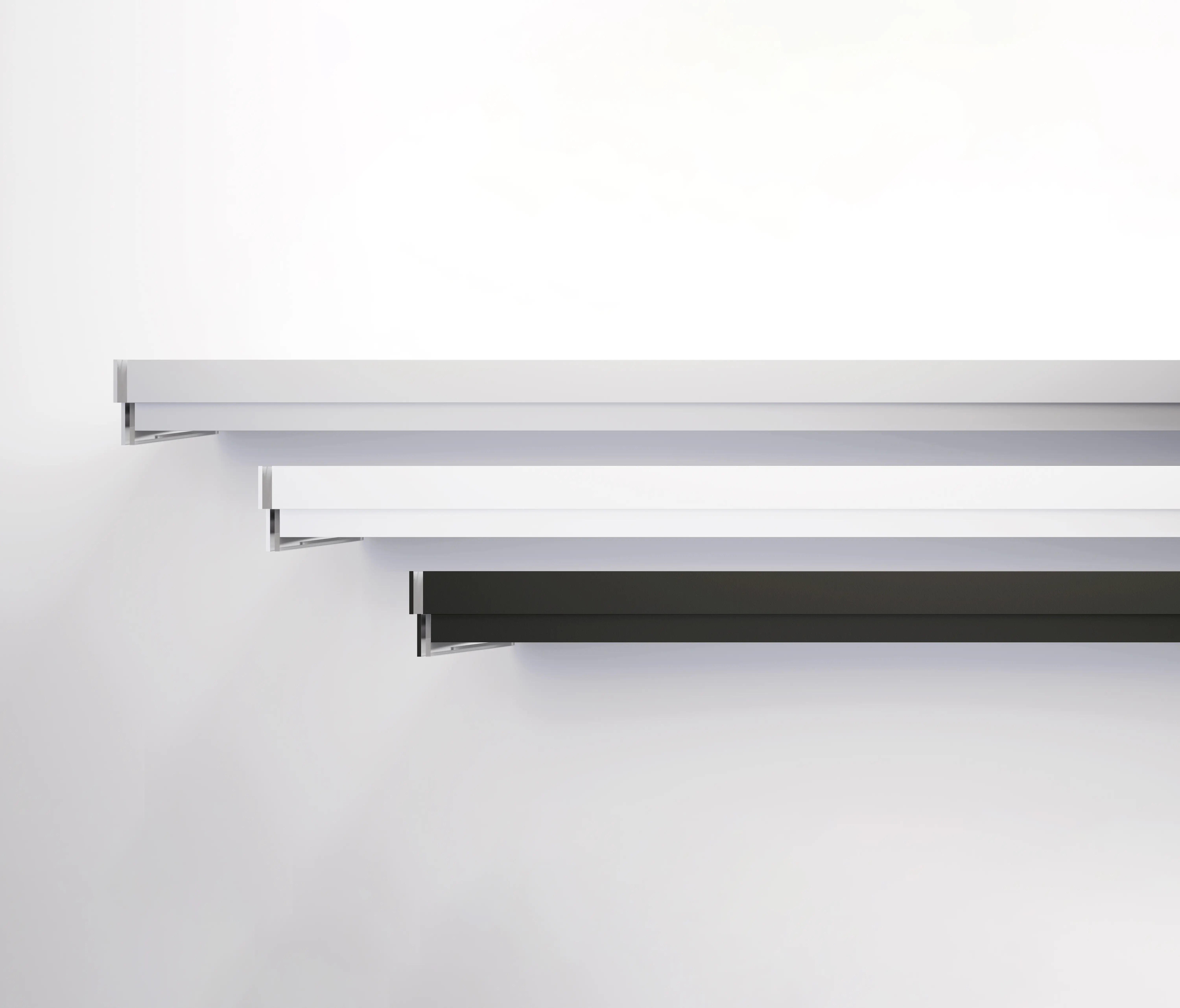

Track made of extruded aluminium size customizable.
Electrical copper conductors inserted in a profile of insulating material [glow wire 850°].
With a single-phase AC connection, the maximum load is 16A [3840W]. The 3-phase version of NODO track, if connected to 3-phase alternating current, allows a maximum load of 16A per phase [3 x 3840W = 11520 W].
The track has grooves that enable anti-glare installation of 8 mm LED strips on both sides [Side Light] and LED strip up to 20 mm on the back [Up Light] if suspended.
The track can be completed with supports, terminals, joints, power feeds and if necessary dust proof / steam seals. NODO allows elements to be powered at any point on the track.
Concepto
NODO, a subtle electrical revolution.
NODO is an innovative track that lets you position and move lighting fixtures wherever and whenever you want with a simple gesture and without tools.
A 3-PHASE SOLUTION
PHASE 1 PROJECT
Opportunity of modifying the placement of the sockets at any moment, even after work has been finished. No need for ducts in walls where you cannot or prefer not to break. Ultra-flat shape, does not require formwork.
PHASE 2 INSTALLATION
Smart-ON system for quick and safe electrical connections. Easy to install, no courses needed.
PHASE 3 USE
Possibility to change the positioning of sockets, lights and accessories without tools. Shuttle system for easy and intuitive use. Elimination of masonry wall charges.
