TrendVario 6200+

The TrendVario 6200+ can be combined with other TrendVario models

The TrendVario 6200+ can be driven through, which means it can be easily combined with the TrendVario 6100, 6200+ and 6300, as well as the 6100+ and 6300+ (which can also be driven through), as an additional row of parking. As no second access lane is required, this sort of combined parking system enables you to have even more parking spaces within the same floor area.

The TrendVario 6200+ accommodates two vehicles, one above the other. The parking spaces are moved vertically and horizontally and transported to the desired position.

For maximum operating safety, the access level is secured from the entire system by gates.

You can also enhance your TrendVario 6200+ with our premium accessoires.

SPECIFICATION:

For independent parking

Can be combined with the TrendVario 6100, 6100+, 6300, 6300+ and 6200+

4 rows behind each other and 4 grids next to each other – up to 28 parking spaces are possible

Building height: from 330 cm

Pit depth: not required

Vehicle dimensions: height 150 cm to 220 cm, length 500 cm to 520 cm

Usable platform width: 230 cm to 270 cm

Platform load: 2,000 kg per parking space, optionally 2,600 kg or max. 3,000 kg

Horizontal access to all parking levels

Platform coating: StandardGrip, optional AluLongLife or EasyWalk

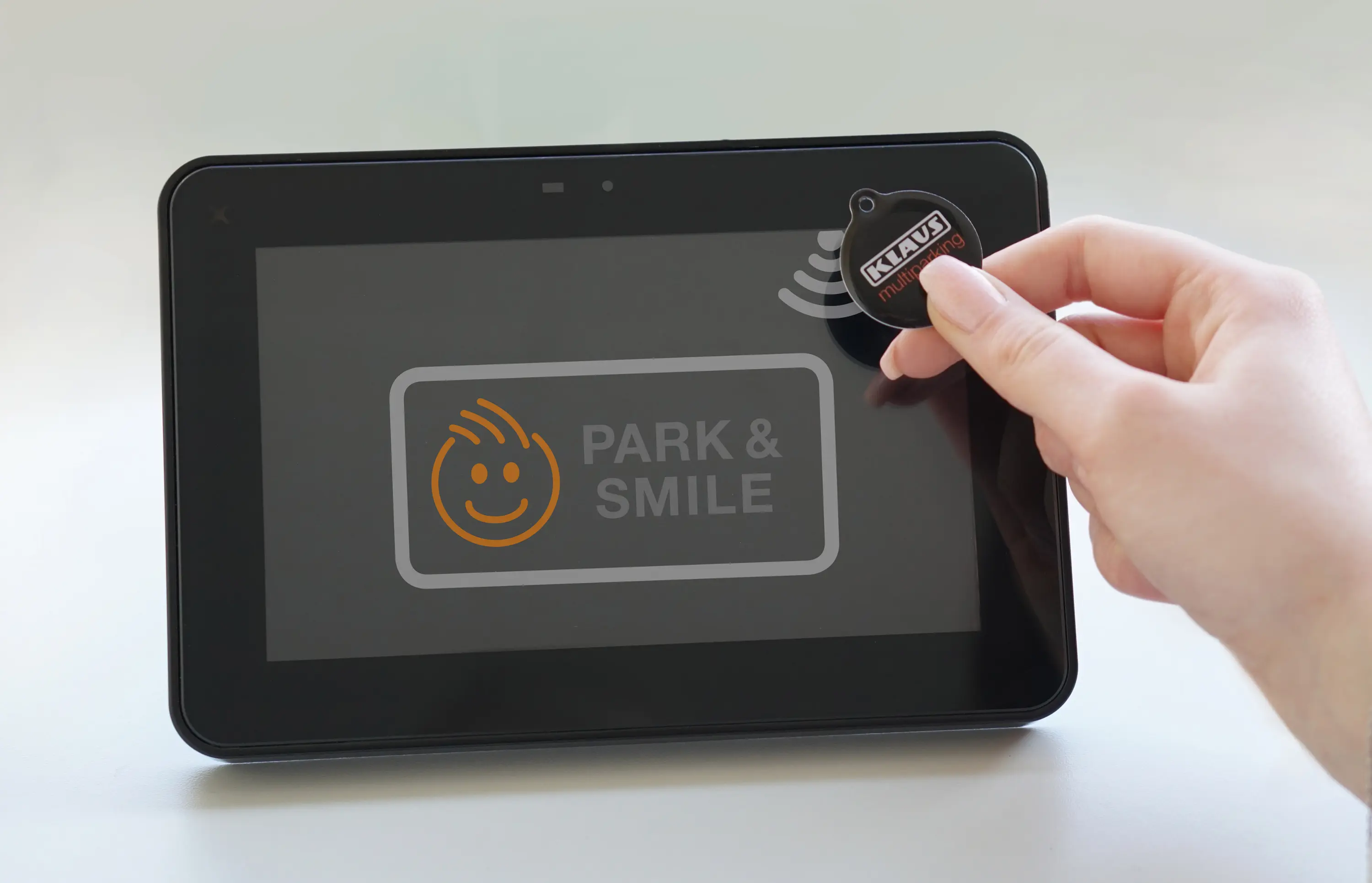

Operation via SmartChip, SmartPortable or SmartApp

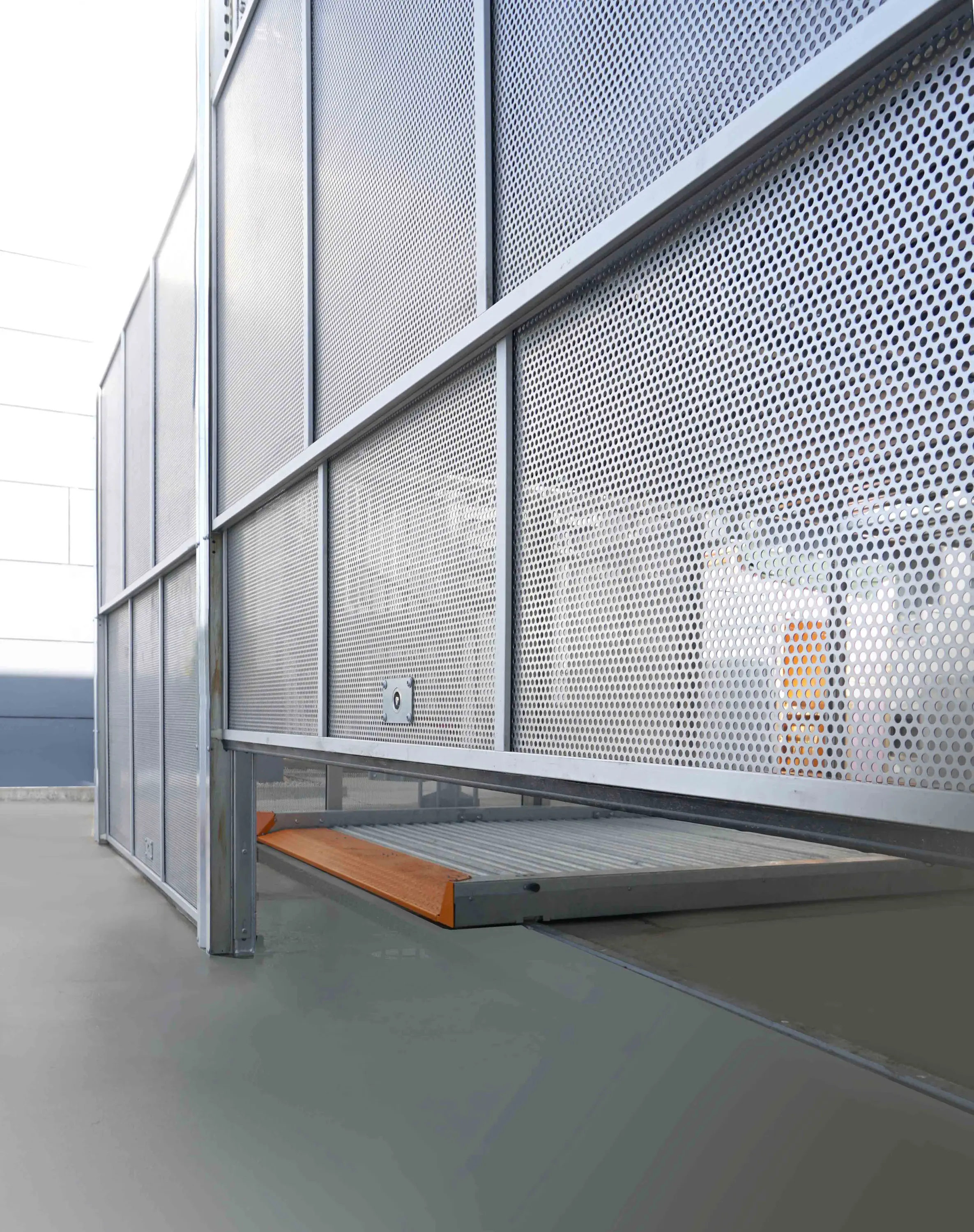

SPECIFICATION GATES:

Standard gates: KLAUS V-Gates, vertical gates, electrically

Electrically sliding gates as an option

Remote control as an option

Gate frame made from extruded aluminium profiles with two vertical centre stay bars for the vertical gate and one vertical centre stay bar for the sliding gate

Standard gating material: perforated aluminium plate

Optional for sliding gates:

Around 50 individual variations are possible in different materials and colours

Glass (laminated safety glass), wood (Nordic spruce), aluminium, steel and many other options available.

Interchangable panels and segments

FIELD OF APPLICATION:

In residential and commercial buildings in large cities

For additional parking spaces in office buildings or residential and commercial buildings

To increase capacity in underground car parks or parking garages, e.g. of hotels

More parking spaces for car dealerships, car rental companies or vintage car collections

Ideal in the case of constructions abutting property lines
