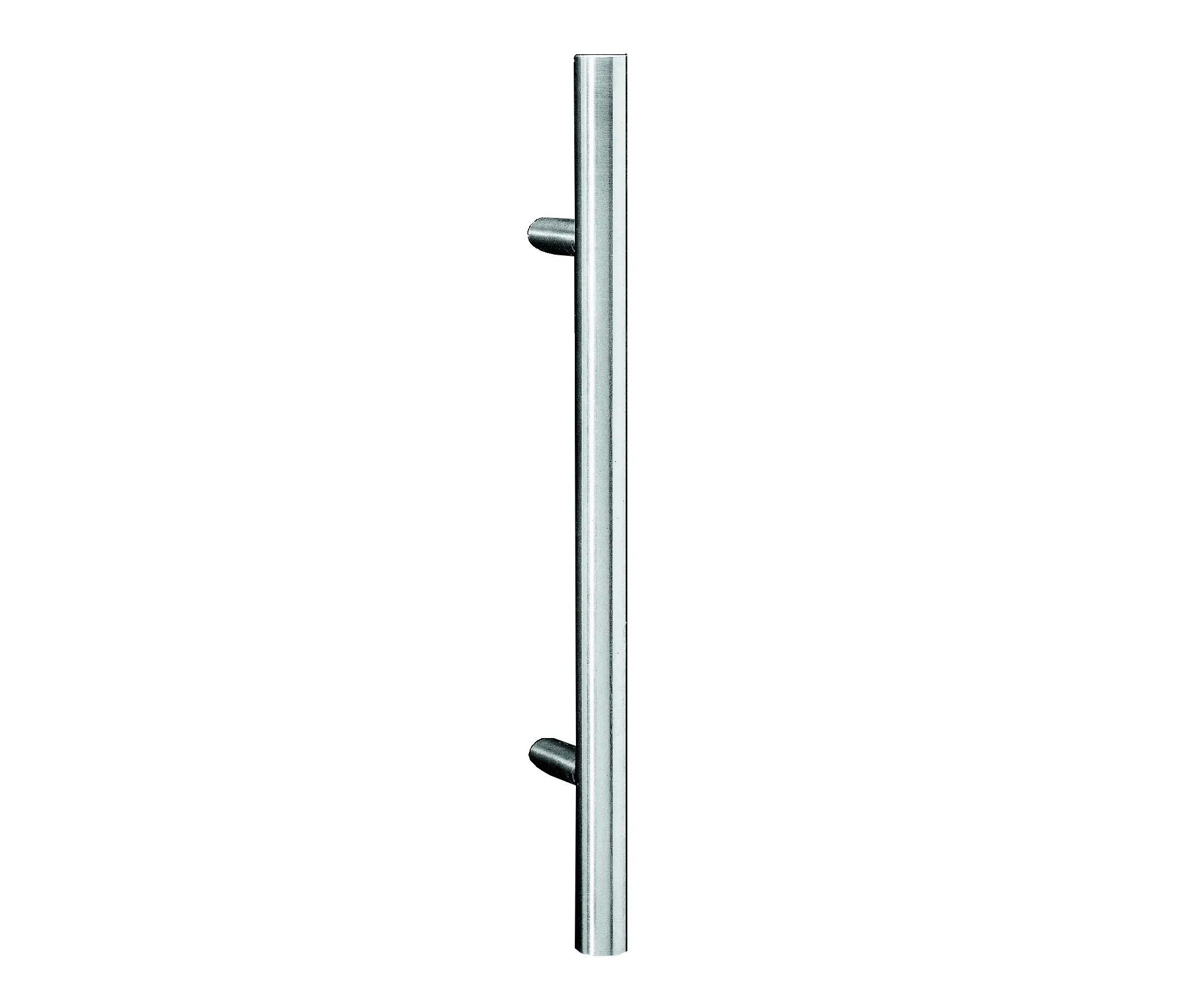

Pull handle ES3 G (71)

Pull handle ES 3G

45° cranked

by KARCHER DESIGN

T shape, stainless steel

2 fixing points

stainless steel

Overall: 300 / 400 / 500 / 600 / 700 / 800 / 1000 / 1200 / 1400 / 1600 / 1800 / 2000 mm

Handle diameter: 32 mm

Fixing with M8

single bolt through fixing

or back to back pair fixing

For timber, metal, PVC or glass door

Finish: satin stainless steel (finish code 71)

Karcher article no.:

ES3-300 71 cranked (Overall 300 mm, fixing centre 200 mm)

ES3-400 71 cranked (Overall 400 mm, fixing centre 250 mm)

ES3-500 71 cranked (Overall 500 mm, fixing centre 300 mm)

ES3-600 71 cranked (Overall 600 mm, fixing centre 400 mm)

ES3-700 71 cranked (Overall 700 mm, fixing centre 500 mm)

ES3-800 71 cranked (Overall 800 mm, fixing centre 600 mm)

ES3-1000 71 cranked (Overall 1000 mm, fixing centre 800 mm)

ES3-1200 71 cranked (Overall 1200 mm, fixing centre 1000 mm)

ES3-1400 71 cranked (Overall 1400 mm, fixing centre 1200 mm)

ES3-1600 71 cranked (Overall 1600 mm, fixing centre 1400 mm)

ES3-1800 71 cranked (Overall 1800 mm, fixing centre 1500 mm)

ES3-2000 71 cranked (Overall 2000 mm, fixing centre 1600 mm)

Bolt fixings:

EZ1060 back to back fixing as pair for timber, metal or PVC door

EZ1061 back to back fixing as pair for glass door

EZ1062 bolt through fixing for glass door with cover caps on the opposite side

EZ1063 secret face fixing for timber doors

EZ1064 secret face fixing for frame/PVC doors

EZ1065 bolt through fixing for timber or frame door with cover caps on the opposite side

EZ1066 bolt through fixing without cover caps (single fixing)
