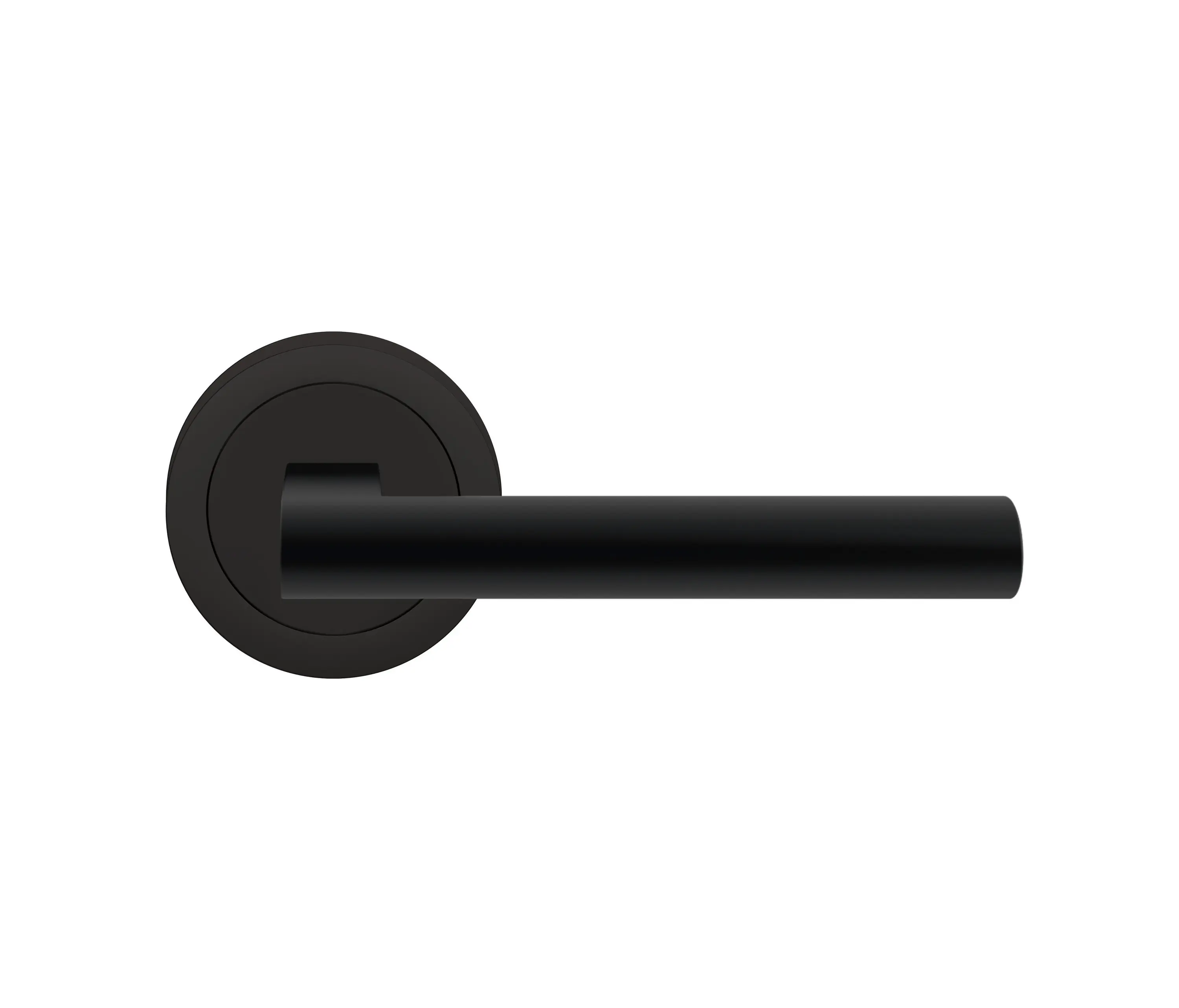

Madeira UER45 (83)

Lever sets for standard doors acc. to DIN EN 1906, category of use 3

PLAN DESIGN rose EZ180Q with lever

Clip rose

with 7mm lugs

thread in bushing

nylon floating bearing

sprung loaded inner plate with attached lever

Heavy duty bolt through M4 fixings

8mm offset drilled spindle

Mounting versions: flush (Karcher milling template Z600D) or surface mounting.

Door thickness: 40-50mm, depending on mounting and door version (rebated or flush)

For a flush mounting the leftover wood must be at least 4 mm.

Options:

OS – without escutcheon

BB – supplied with lever key escutcheons

PZ – supplied with euro profile escutcheons

BAD – supplied with bathroom turn/release set

Attention: Before mounting check length of profile cylinder

Karcher article no.:

EPLXX OS 83 – without escutcheon

EPLXX BB0 83 – supplied with lever key escutcheons

EPLXX PZ0 83 – supplied with euro profile escutcheons

EPLXX BAD 83 – supplied with bathroom turn/release set
