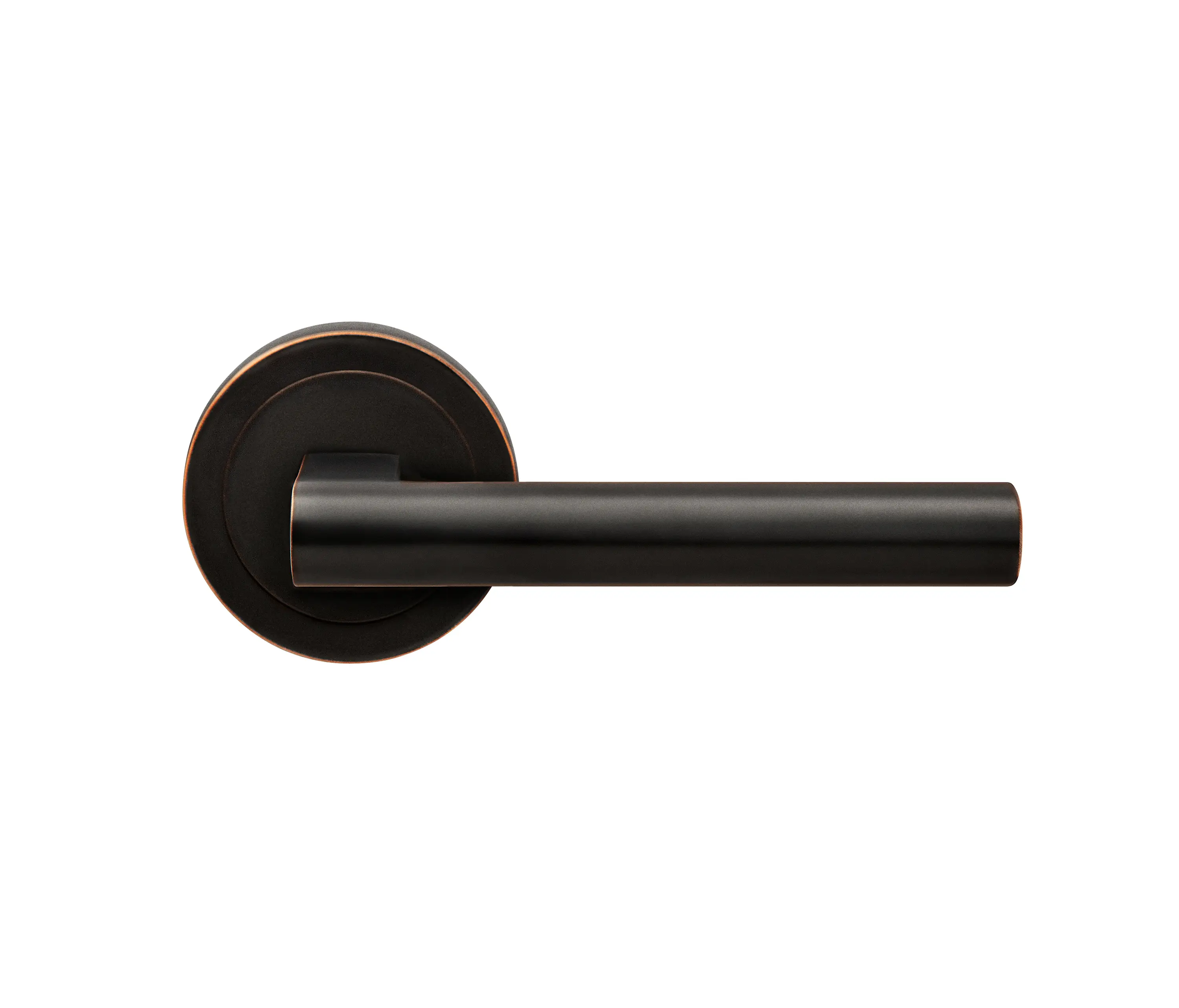

Madeira UER45 (81)

Lever sets for standard duty for residential interior use and light duty for commercial interior use.

Madeira– UER 45 Ø 2 5/8 x 7/16“

Standard Features:

• 3 piece rose

• concealed bolt-through fixing

• sprung

• door range 1 1/4“ (31 mm)- 2“ (51 mm) standard

• T- and Lip-Strike with dust box

• stainless steel faceplate

• backsets: 2 3/8“ (60 mm) or 2 3/4“ (70 mm)

• functions: Passage (PAS), Privacy (PRI), full dummy (DUM), dummy left (DUM L), dummy right (DUM R)

• available with UL-Latch

• 28° latch with attached face plate

• rate of satin stainless steel 304

• hub 5/16“ (8 mm)

• door prep 2 1/8“

• available finish: satin stainless steel

Options:

PAS- passage latch, backset and T-strike plate

PRI – privacy latch backset and T-strike

DUM – Full Dummy

DUML – Half Dummy Left

DUMR- Half Dummy Right

Special options (to be ordered separately)

UZ2570 PAS – Passage Latch with backet 2 3/4” (70mm)

UZ3070 PRI – Privacy Latch with backet 2 3/4” (70mm)

UZ2500 LS – Full Lip strike

UZUL P67 – UL-Latch

Finish: satin stainless steel (finish code 81)

Karcher article no.:

UER45 PAS60 81 – with passage latch, backset 2 3/8” (60mm) and T-strike plate

UER45 PAS70 81 – with passage latch, backset 2 3/4” (70mm) and T-strike plate

UER45 PRI60 81 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate

UER45 PRI70 81 – with privacy latch, backset 2 3/4” (70mm) and T-strike plate

UER45 DUM 81 – full dummy

UER45 DUML 81 – half dummy left

UER45 DUMR 81 – half dummy right
