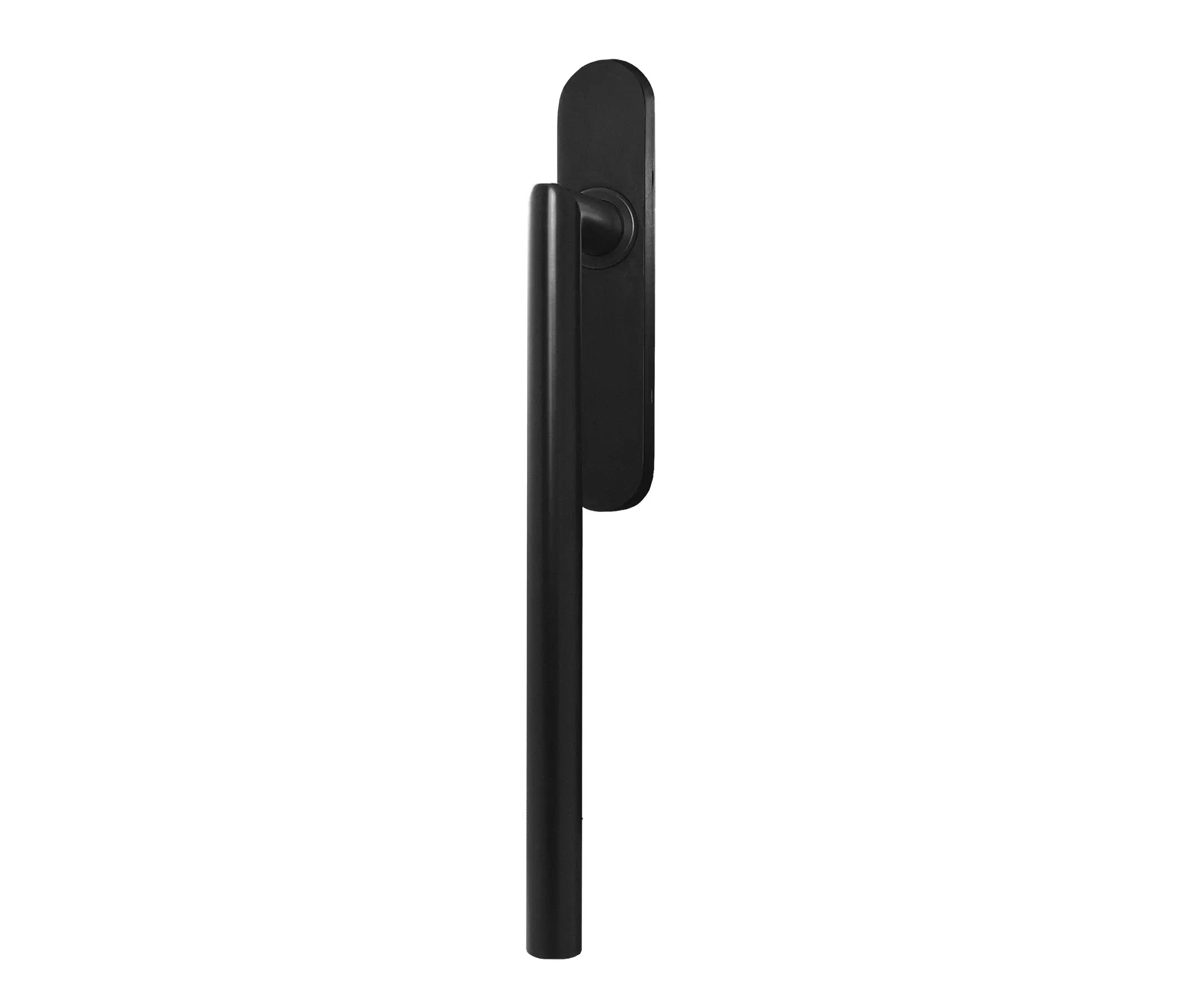

EHSSET28 (83)

Lift and slide door handle EHS28

KARCHER DESIGN

secret face fixing plate 160mm x 34mm x 14,5mm

fixed with M6 x 25 threaded screws

sprung loaded inner plate with attached lever

nylon floating bearing

solid spindle 9/10mm

screw fixing centre 80 mm

diameter of handle: 19mm

Finish: satin stainless steel (finish code 71)

Karcher article no.:

EHS28 UN 71 Inner plate with lever handle, blank

EHS28 PZ 71 Inner plate with lever handle, Euro Profile 69 mm

EHSSET28 UN 71 Sliding door handle set, Inner plate with lever handle+outside sliding door handle,

blank

EHSSET28 PZ 71 Sliding door handle set, Inner plate with lever handle, Euro Profile 69 mm + outside

sliding door handle, blank

EHSSET28 DD 71 Sliding door handle set, Inner + outside plate with lever handle, Euro Profile 69 mm

Finish: oil rubbed bronze (finish code 81)

Karcher article no.:

EHS28 UN 81 Inner plate with lever handle, blank

EHS28 PZ 81 Inner plate with lever handle, Euro Profile 69 mm

EHSSET28 UN 81 Sliding door handle set, Inner plate with lever handle+outside sliding door handle,

blank

EHSSET28 PZ 81 Sliding door handle set, Inner plate with lever handle, Euro Profile 69 mm + outside

sliding door handle, blank

EHSSET28 DD 81 Sliding door handle set, Inner + outside plate with lever handle,Euro Profile 69 mm

Finish: cosmos black (finish code 83)

Karcher article no.:

EHS28 UN 83 Inner plate with lever handle, blank

EHS28 PZ 83 Inner plate with lever handle, Euro Profile 69 mm

EHSSET28 UN 83 Sliding door handle set, Inner plate with lever handle+outside sliding door handle,

blank

EHSSET28 PZ 83 Sliding door handle set, Inner plate with lever handle, Euro Profile 69 mm + outside

sliding door handle, blank

EHSSET28 DD 83 Sliding door handle set, Inner + outside plate with lever handle,Euro Profile 69 mm
