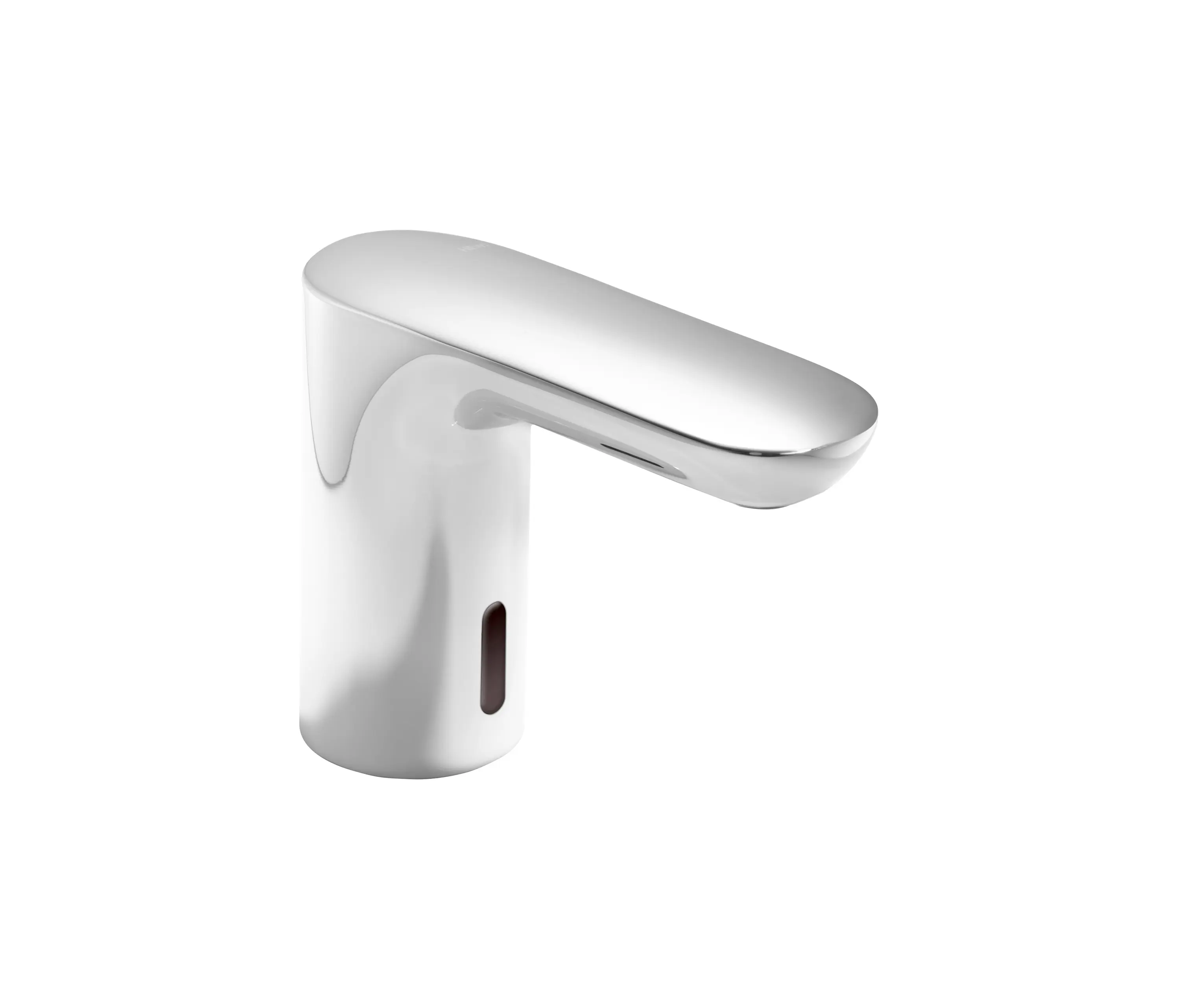

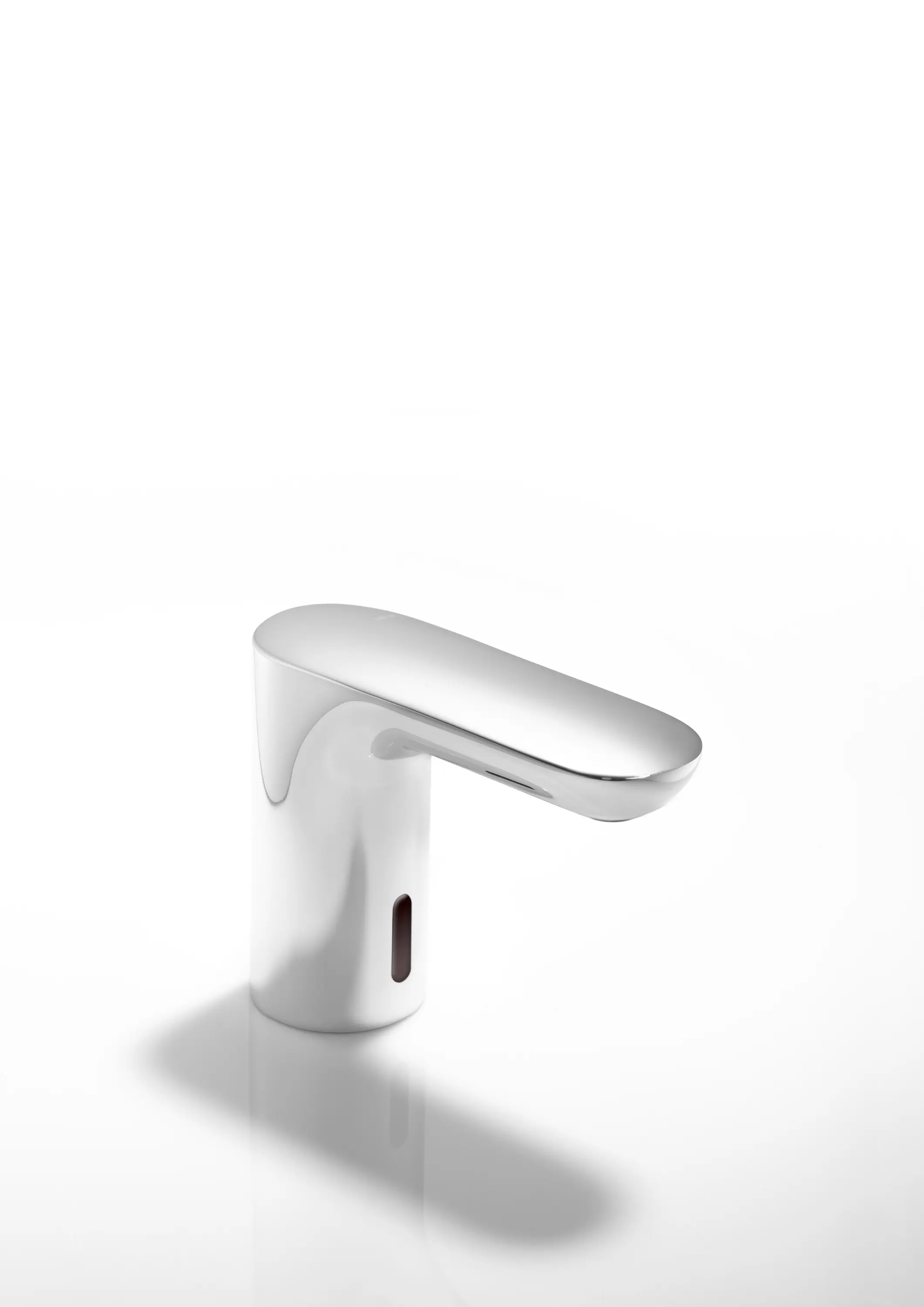

SENSORIC Electronic washbasin fitting

Electronic washbasin fitting

- high-quality chrome-plated, round

- Flow rate 5 l/min

- Mains operation 230 V

- for cold and mixed water

- Cold water: 3/8" T-distributor necessary, see accessories Art. No. 111736

- Laminar jet controller with dynamic flow control 5 l/min, angle adjustable and anti-theft protection

- adjustable, active, nuisance tripping-resistant infrared sensors

- Electronic module with adjustable sensing range, hygiene flushing, continuous flushing and cleaning mode

- Sensor parameters preset in the factory: after-run time: approx. 1-2 s, continuous running: 4 min, sensing range: 200 mm, cleaning mode: 60 s, hygiene flushing is deactivated

- asymmetrical sensing range, stable object detection

- settings and service also possible by means of app via smartphone, see accessories Art. No. 65713

- safety shutdown in the event of failure of the operating voltage, user-defined settings are retained

- without temperature adjustment lever: highly hygienic, vandal and misuse resistant

- the preset temperature lies within the comfort zone from 30°C to 36°C

- Temperature settings and adjustment can be easily made during installation due to side access

- Connection via flexible pressure hoses with woven-in hot-cold marking 450 mm long, G 3/8"

- integrated dirt trap screens

- Brass fitting body

- 118 mm high, projection: 158 mm

- rigid outlet

- not including waste fittings

- Noise class 1

- suitable for thermal disinfection according to DVGW W 551

- conforms EN 15091

- with WELL Label

Article no.: HEWI AQ1.12S20040
