    Inicio/Sistemas de videoconferencia/

    mi 55

Acerca de este producto

Architonic ID: 1396144

Año de Lanzamiento: 2014

MI55

Korpusbreite: 740 mm

Bildschirmausschnitt: 570 x 1015 mm

46" Hochformat

MI55IA

mit interaktivem Bildschirm

Korpusbreite: 1222 mm

Bildschirmausschnitt: 1015 x 570 mm

MI55VC

für Videokonferenz

Korpusbreite: 1422 mm

Bildschirmausschnitt: 1218 x 684 mm

MI Familie

Höhe: 1975 mm

Korpustiefe: 90 mm

Sockeltiefe: 270 mm

Frontseite: ESG

Rückwand: abnehmbar

Höhenverstellung

elektronisch um 250 mm verstellbar

Höhe: 1975- 2225 mm

Fahrwerk

additiv montierbar; Leichtlaufrollen D 100 mm

Standfläche: 570 x 1015 mm

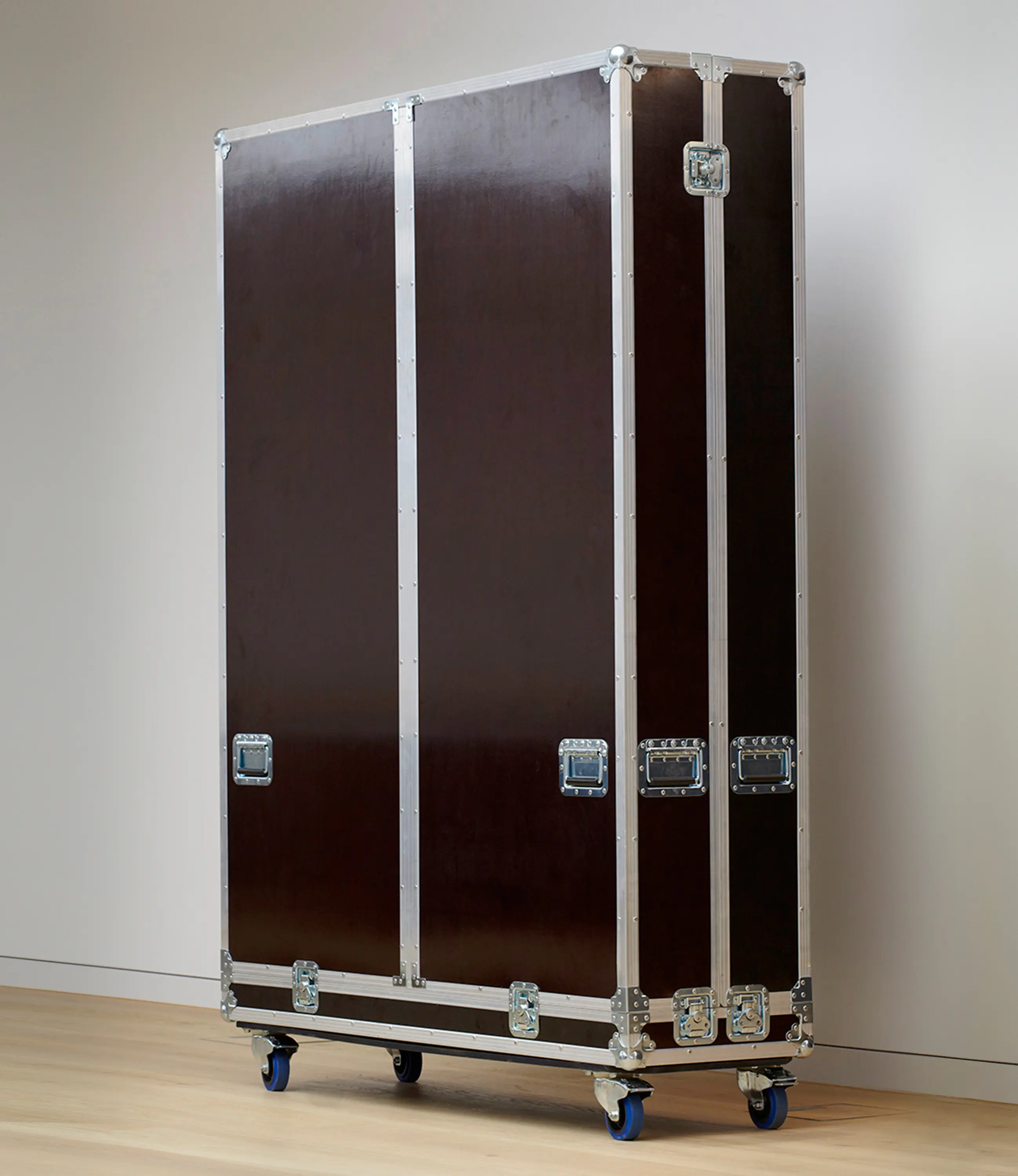

Flightcase

für den sicheren Transport über größere Strecken oder längere Aufbewahrung;

Korpusmaße Flight-Case MI Standard

1490x430x2175 mm

Korpusmaße Flight-Case MI mit elektromotorischer Höhenverstellung

1490x430x2050

Patent-Nr.

40 2013 005 383.2

Concepto

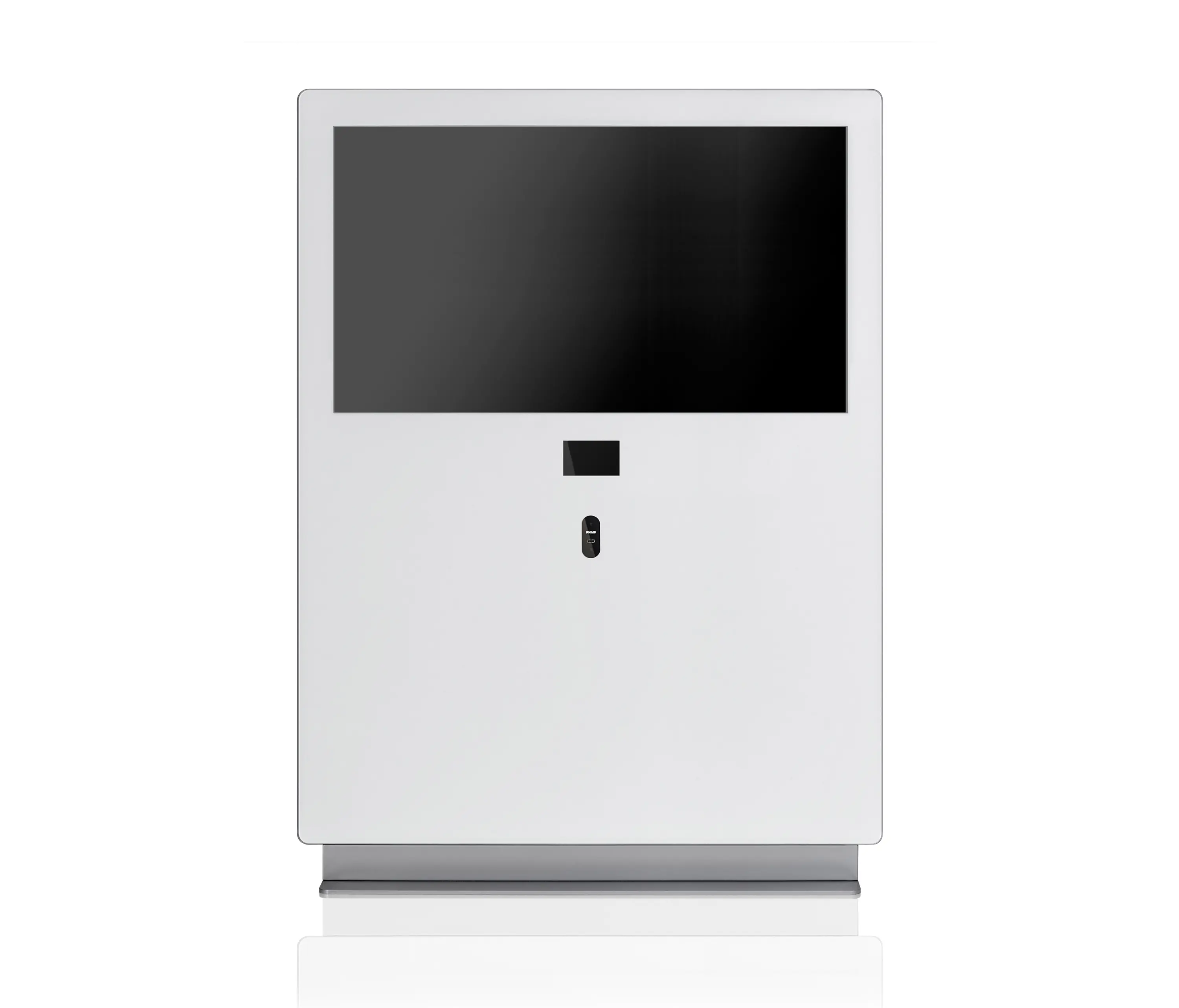

The panels in the MI product family provide sensitive technology with a protective housing in an attractive, neutral design. The panels are fitted individually with the components selected to suit their use and are installed as a complete system. As a pure presentation medium, fitted with an interactive screen or in an expanded design for video conferencing, the MI panels are child's play to operate.

External appliances can be added using standardised interfaces.

55" monitors produced by any manufacturer can be installed in the panels in the MI family. The monitors are positioned behind toughened safety glass fronts with an anti-reflective coating on the back which only allow the screens to be viewed.

This therefore guarantees that the exterior is completely neutral even if monitors made by several different manufacturers are used.

The steel frame all round provides support for the whole structure. The back wall is removable and thus provides technical staff with direct, convenient access to the technical equipment.

As an option, the MI55IA can be supplied with an interactive screen that is suitable for a wide range of applications including use as a whiteboard. Fitted with a camera, behind glass and underneath the screen, the MI55VC becomes a sturdy video conferencing tool. The two loudspeakers here are behind the front which is protected with a screen.
