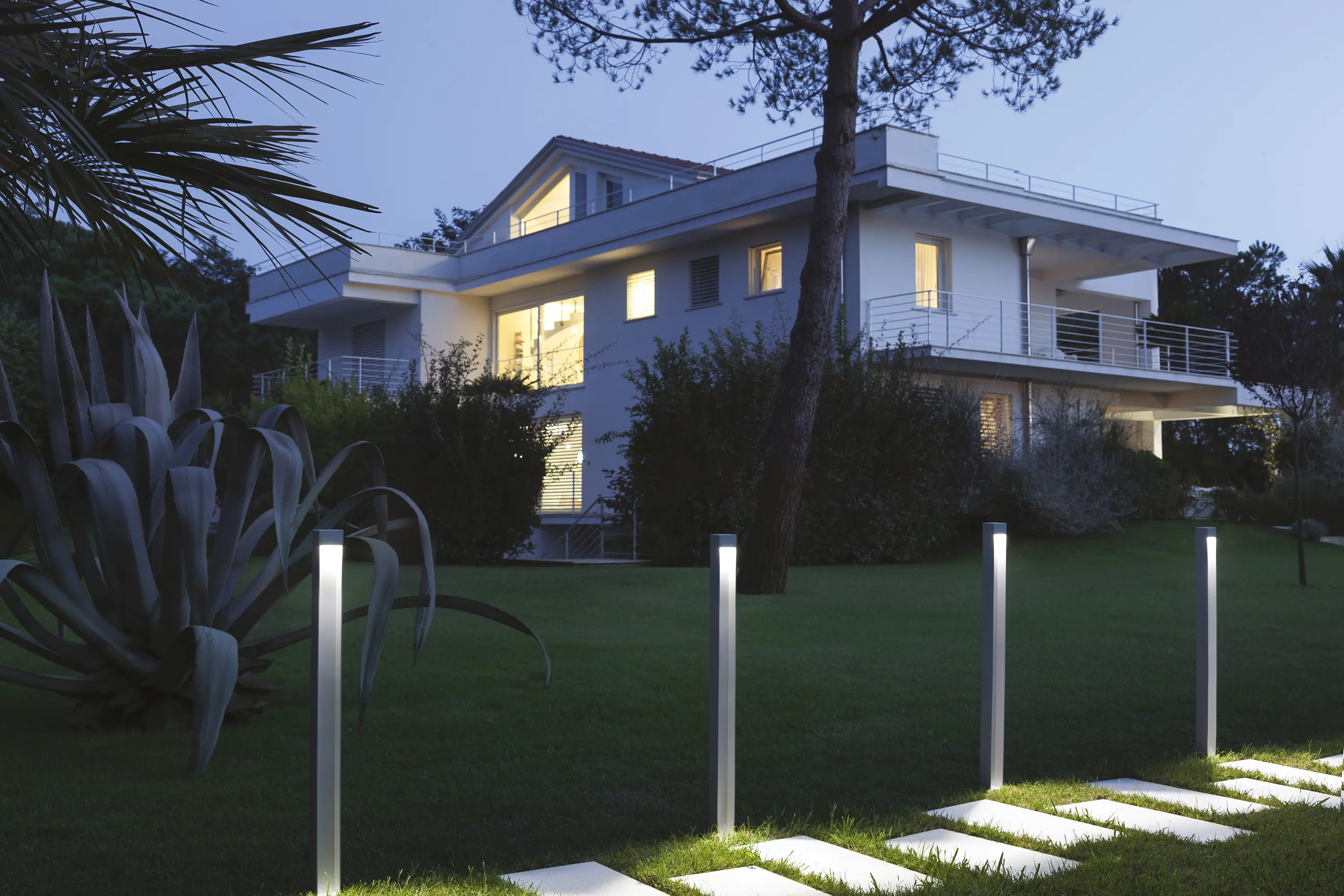

Klein 900 CoB LED / Installation With Base - Direct 230V

• Bollard light.

• Configuration: extruded aluminium structure with milled

aluminium base and emitting unit.

• Double layer coating for high resistance to corrosion:

The aluminium components are painted with a double coat using powders which are complaint with QUALICOAT standards: a first layer of epoxy powder (with excellent chemical and mechanical resistance) and a second finishing layer of polyester powder (resistant to UV rays and atmospheric agents).The entire painting process of the aluminium fitting starts from components which have been sand-blasted in advance to make the surface more porous and increase the adherence of the paint. Ares effects alkaline and acid washing to clean the surfaces completely, then rinses with demineralised water to remove any residue particles, subsequently a chemical conversion treatment is done to protect against rusting.

• Protection Rating: IP66

• In compliance with EN60598-1 standards

• Class of insulation: I

• Installation: Klein is for direct connection to 230V. Klein is

equipped with a piece of three-pole cable. Watertightness assured by polyurethane resin coating. Two versions available: for direct screwing on a solid surface or for ground fixation through base plate and bolts (included). For a watertight connection to the line the luminaire is equipped with a wiring kit with crimp connector and shrink tube.

.1 White

.6 Grey

.3 Anthracite

.4 Black

.18 Deep Brown
