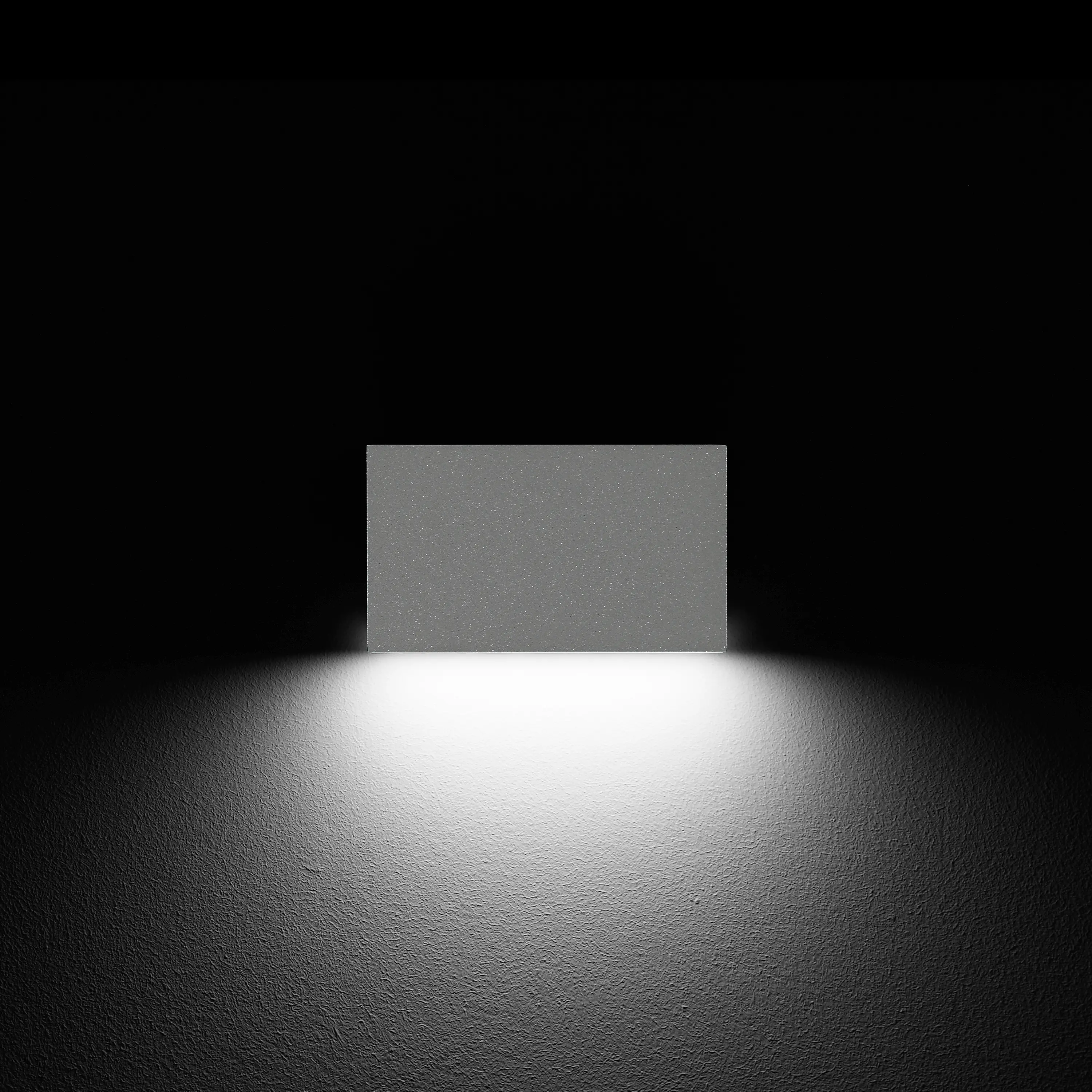

Gamma Mid-Power LED / Unidirectional

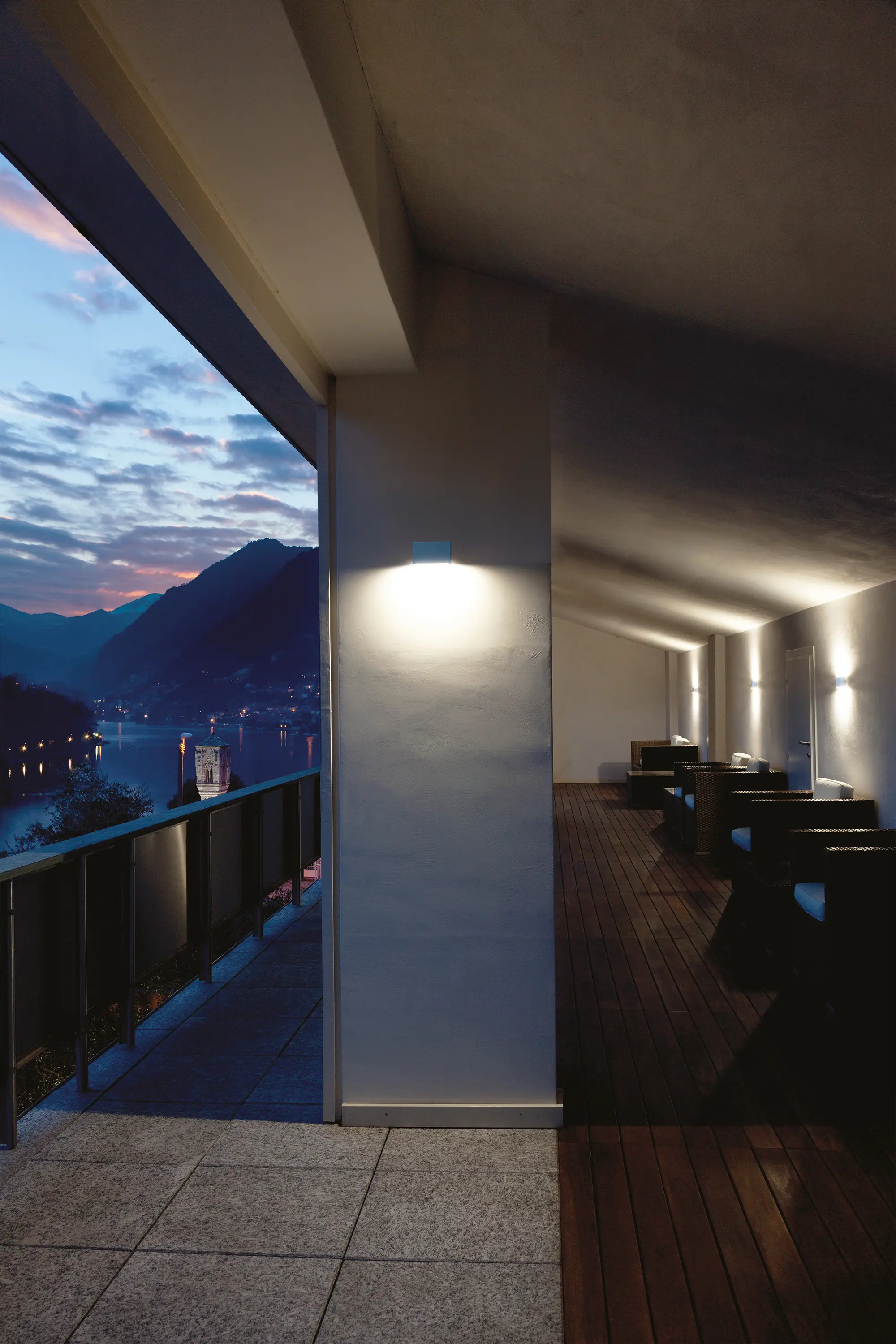

• Square luminaire for installation on wall – surface mounted.

• Con guration: turned aluminium body (EN AW6060 alloy) and AISI 316L stainless steel xing bracket. Methacrylate

diffuser xed to the body by a double-sided tape.

• Double layer coating for high resistance to corrosion: the aluminium components are painted with a double coat using powders that are compliant with QUALICOAT standards: a rst layer of epoxy powder (with excellent chemical and mechanical resistance) and a second nishing layer of polyester powder (resistant to UV rays and atmospheric agents). The entire painting process of the aluminium tting starts from components that have been sandblasted in advance to make the surface more porous and increase the adherence of the paint. Ares effects alkaline and acid washing to clean the surfaces completely, then rinses with demineralised water to remove any residue particles, subsequently a chemical conversion treatment is

done to protect against rusting.

• Protection rating: IP65.

• In compliance with EN 60598-1 standards.

• Class of insulation: III.

• Installation: the luminaire is supplied with a piece of cable

(approx. 250mm) for an easy-to-make connection and it is protected against polarity reversal and sudden voltage peak. Parallel wiring required.

• We recommend the use of a connection system with a protection degree greater than or equal to the protection degree of the luminaire.

.1 White

.6 Grey

.3 Anthracite

.4 Black

.18 Deep Brown
