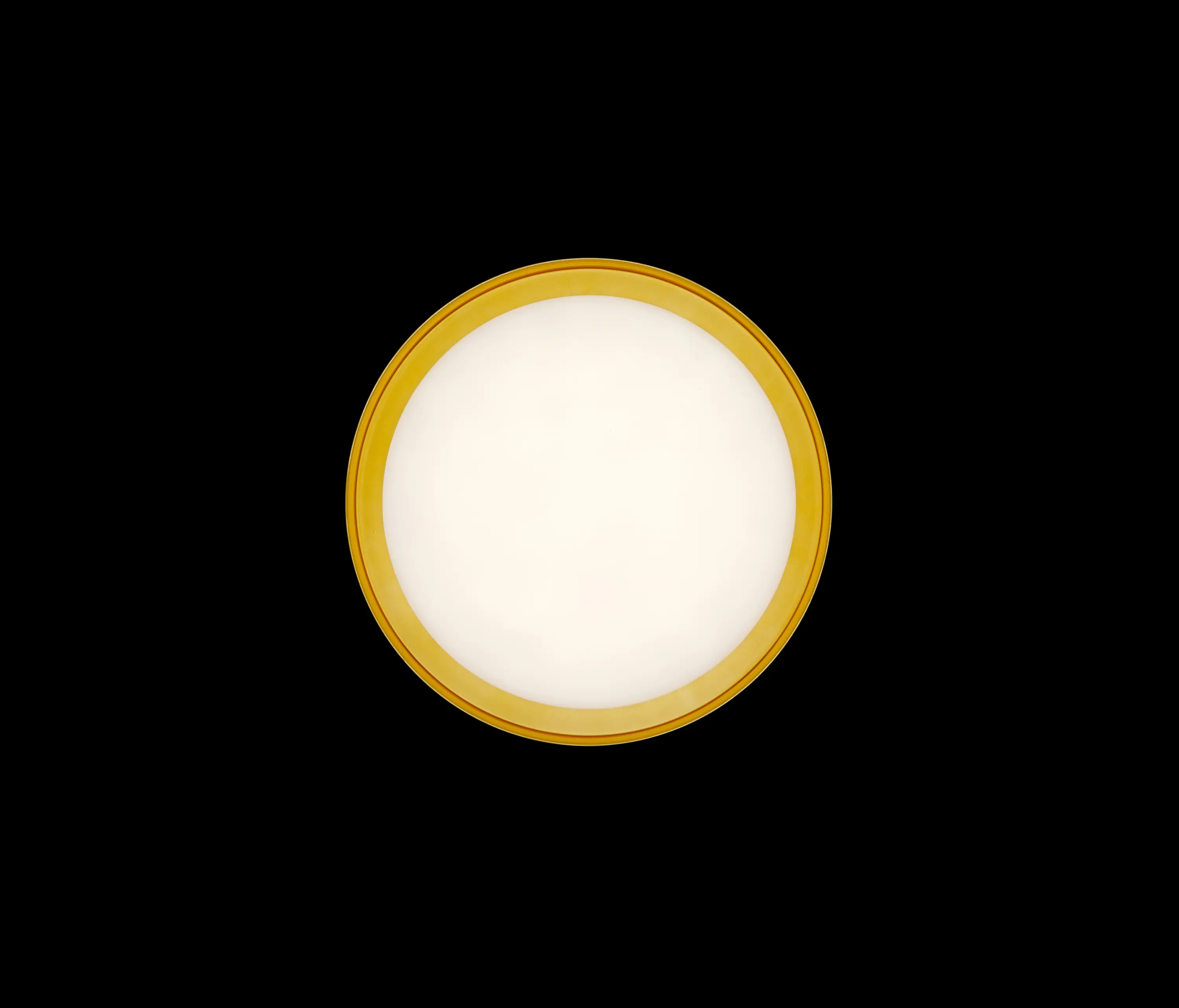

Anna / 310 Mid-Power LED Bicolour Structure White-Yellow

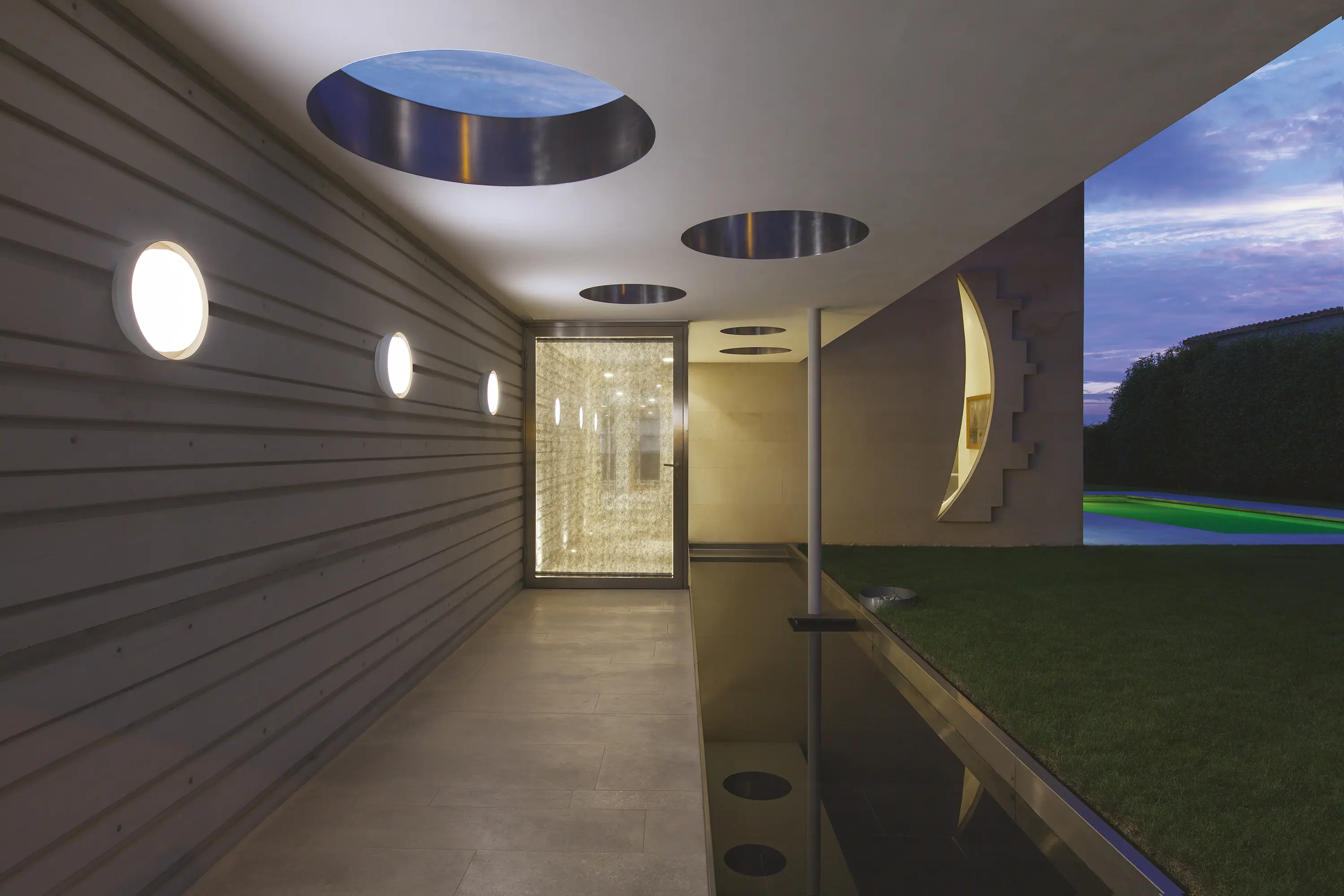

Outdoor / Indoor round luminaire for installation on ceiling or wall – surface mounted.

• Configuration: opal plastic diffuser with satin finish for a high light emission uniformity ratio. Die-cast aluminium fixing back-plate and turned aluminium structure and heat sink. Magnetic finish frame to hide the fixing screws. The luminaire is coated with polyester powders in single or double colour.

• Protection rating: IP65

• In compliance with EN 60598-1 standards

• Class of Insulation: I

• Installation: the luminaire is equipped with two IP65 cable

holders for rubber cables 5<Ø<10mm (Anna Ø210 and Ø310) or cables 6<Ø<13mm (Anna Ø410) and a quick-connect 2-pole terminal block. Outdoor installation requires suitable flexible cables assuring the watertightness of the cable holder.

.1 White

.6 Grey

.3 Anthracite

.4 Black

.18 Deep Brown
