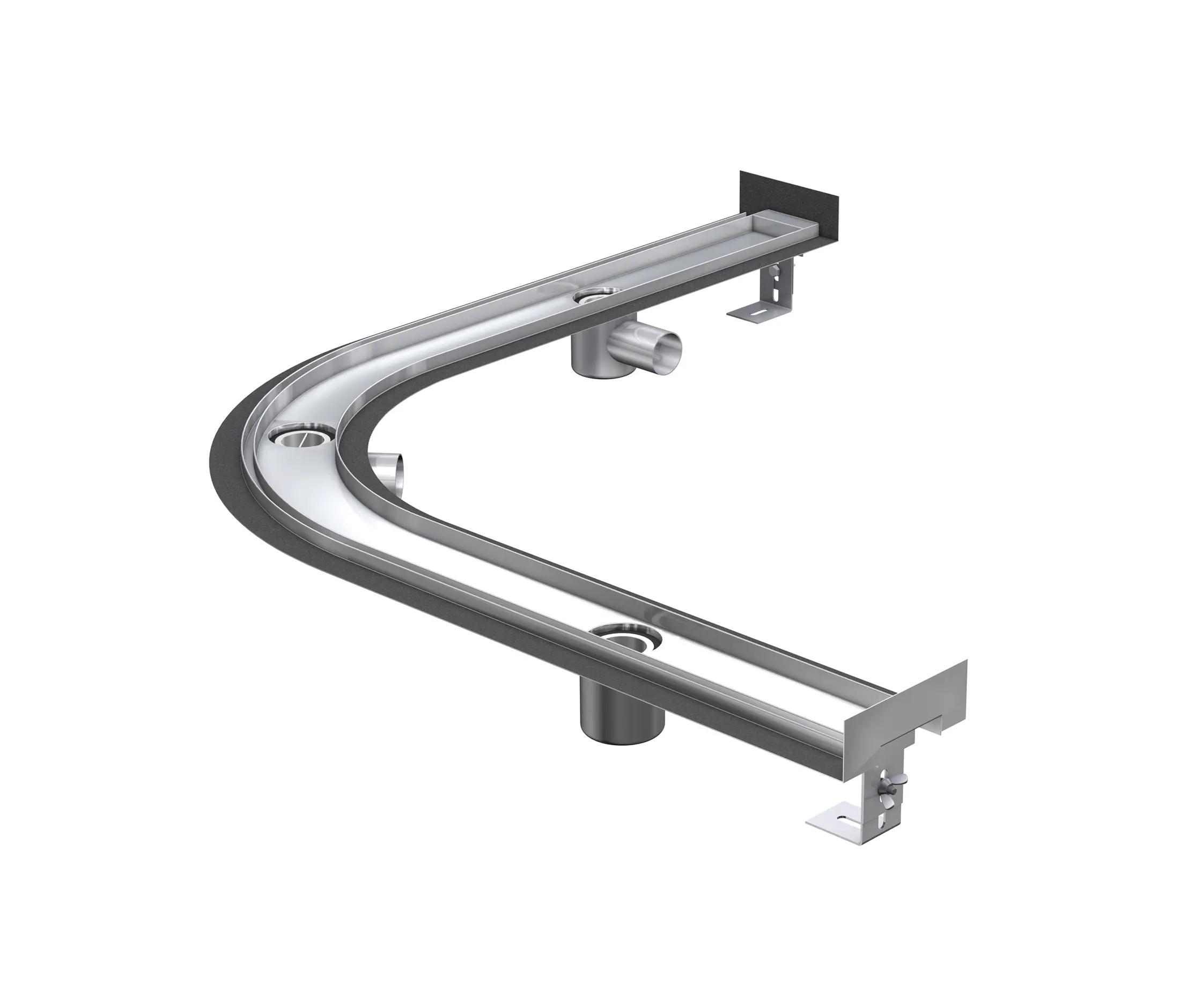

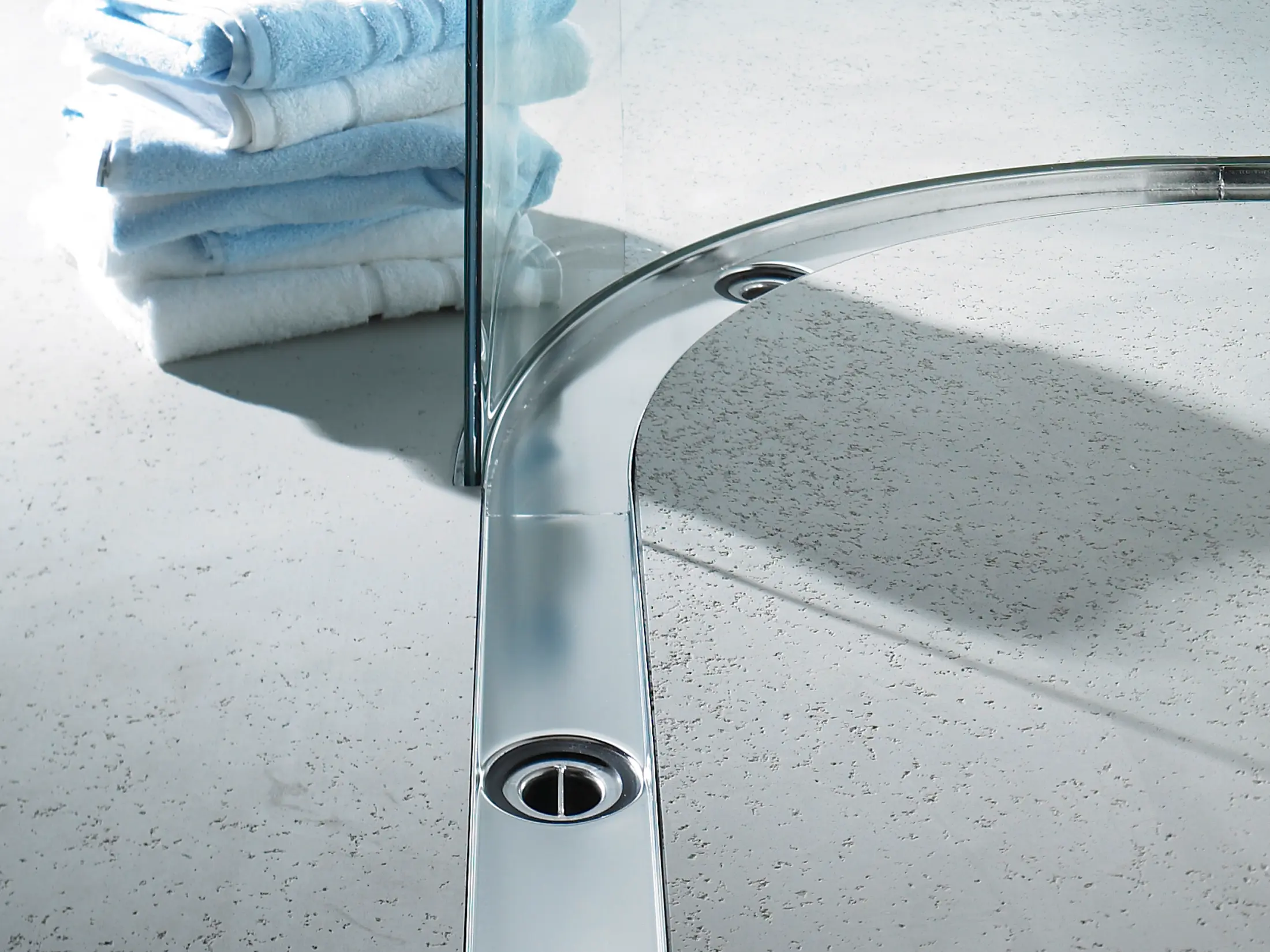

ACO ShowerDrain E-line round TZ Rinne

• DN 50 drainage channel as a round solution for the shower area

• Installation height: 105–160 mm

• Made of stainless steel, material grade 304

• Tested for load bearing ability and drainage properties in accordance with DIN EN 1253

• Drainage properties, standard version: 0.6 l/s without accumulation

• Channel width: 84 mm

• Outer radius: 540 mm

• Side length: 550 mm

• incl. designer grating

• 3 x DN 50 drains fit all push-fit pipe socket systems

• Detachable 2-piece odour seal

• Socket slope: 1.5°

• Electropolished surface

• Surrounding moulded thin bed flange with wall flange at both top ends

• Integrated shower partition guide

• Optionally also available with red, blue, green or rainbow lighting
