Key facts

Product:
Poster
Family:
Poster
Manufacturer:
Simes >
Order number:
S.7050N
Architonic ID:
1385657
Country:
Italy
Launched:
2016
Manufacturer groups :
Outdoor lighting-Street lights >
Groups:
Outdoor lighting-Street lights >

Product description

MODULES LED 3000K 230V CRI 80
Rated luminaire luminous flux: 3925lm
Rated input power: 63W
Luminaire efficacy: 62lm/W
Electronic ballast 220÷240V 0/50/60Hz
CE

PRODUCT TYPE

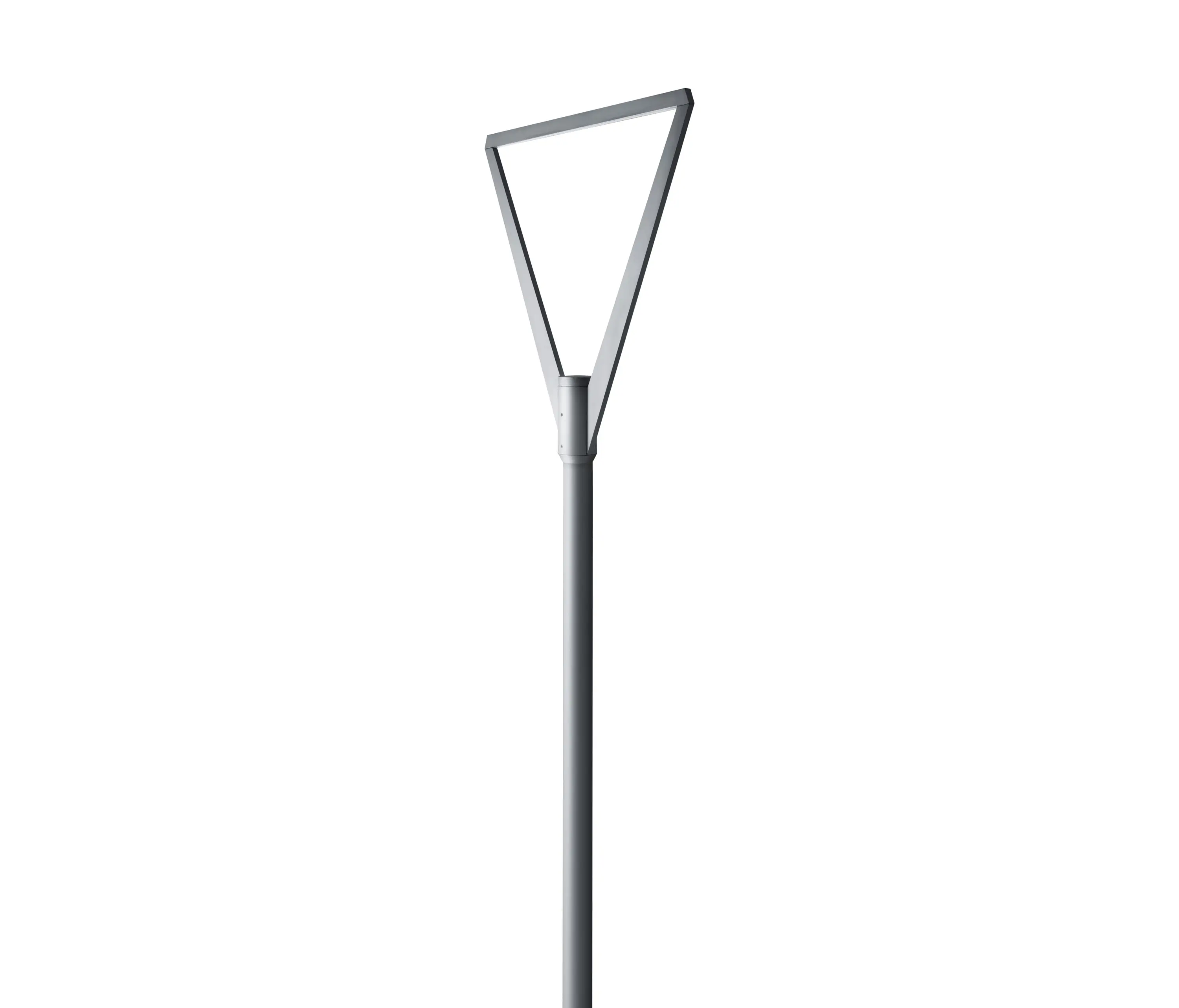

Post top luminaire. IP rating IP 65
MATERIAL CHARACTERISTICS
Aluminium die cast housing in EN AB-47100 (low copper content) and extruded EN AW-6060 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process : 3 Step Process
1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 07
LIGHTING PERFORMANCE
Toughened glass 6 mm thick. LOR --
POLE CONNECTION
Pole head in painted aluminium with Ø 76 mm (POSTER) connection or Ø 60 mm (MINIPOSTER).
WIRING
Luminaire suitable for single cable gland. Isolation: CLASS II . Available colours: Aluminium grey (cod.14), Anthracite grey (cod.24). Weight: 1.7 Kg Glow Wire test: -- Exposed windage area : 0,14 m²
Lamp included.
POSTER REGISTERED DESIGN
This luminaire contains built-in LED modules with energy class: A, A+, A++. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user (Regulation UE 874/2012).
LED circuit boards are engineered accordingly to actual Lumen Maintenance regulation (LM80) and Technical Memorandum (TM21) where uniformity and quality of light is 50.000 hours referred to L70 B20 Ta 25°C.Lifecycle refers to LED circuit boards only, all others components of the luminaire are excluded.

Concept

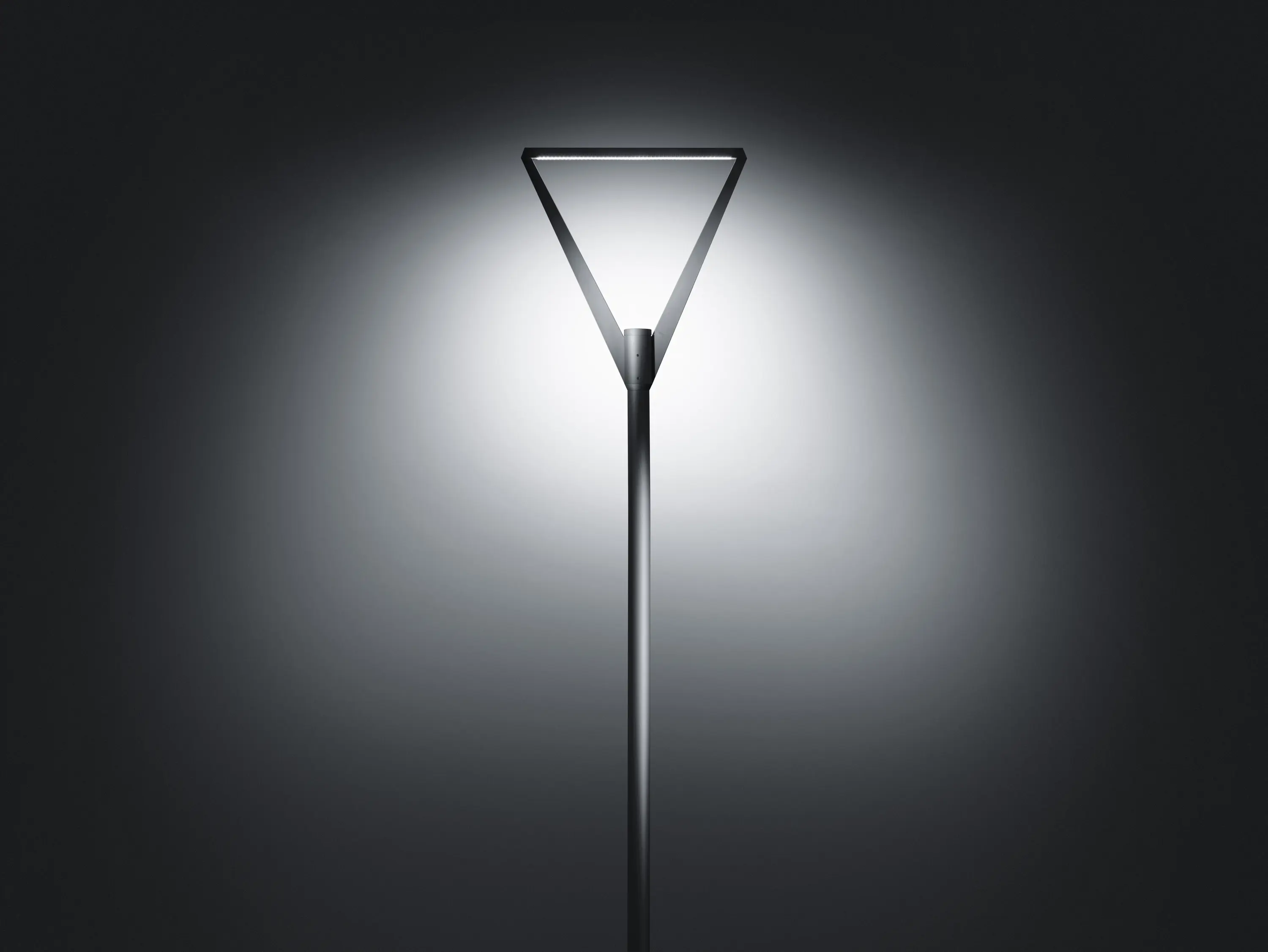

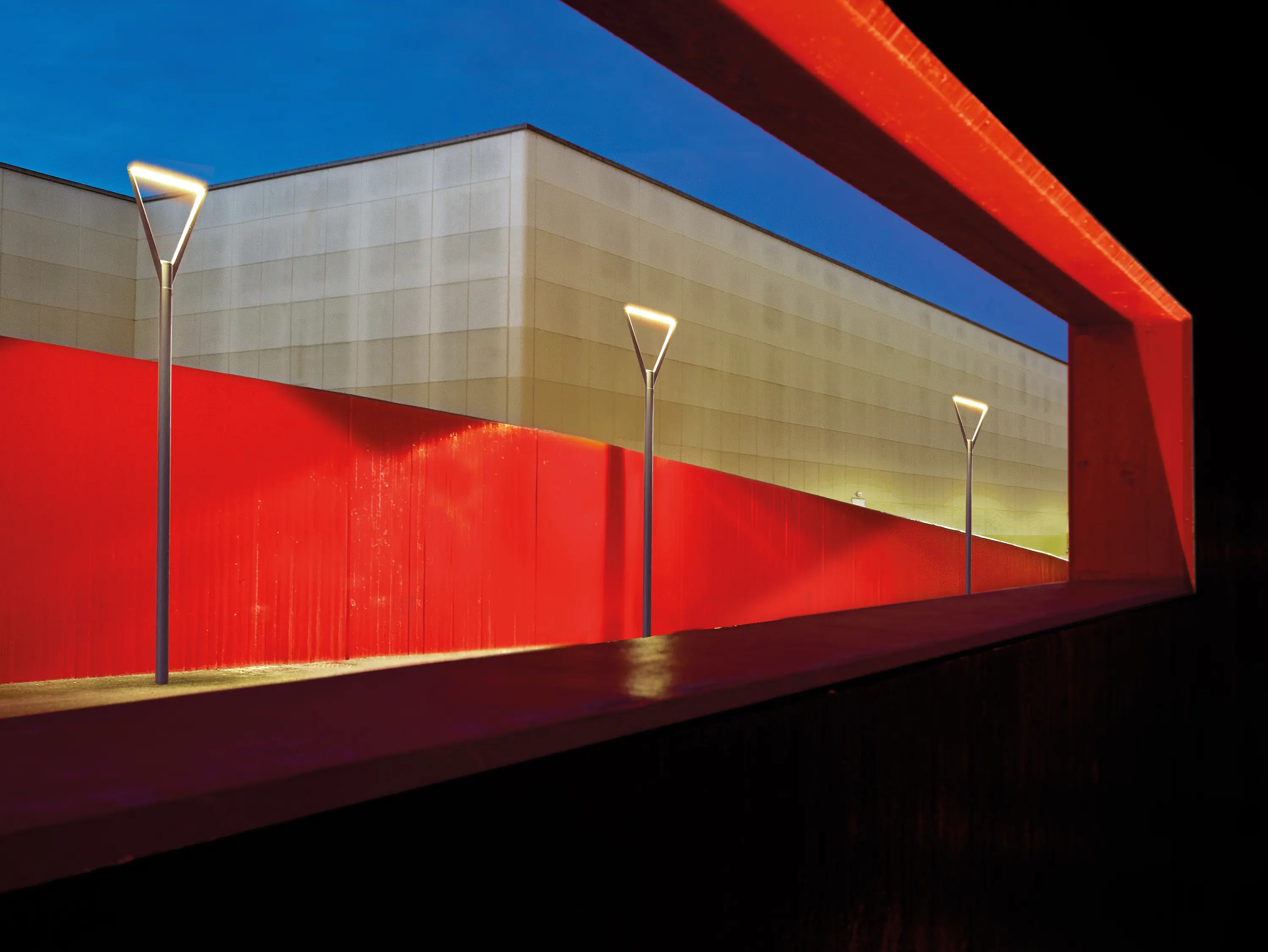

A new concept of area lighting with essential and clean shapes: this is Poster, the perfect solution to light up your landscape in a stylish and elegant way. The 2D aluminium structure with the central void makes Poster an elegant lighting system perfectly functional and resistant.
