Modul L 196 Sequence 3

Help me find it

    Home/Suspended lights/

    Modul L 196 Sequence 3

About this product

Architonic ID: 1269009

SKU: 545-856 (2700 K)/545-632 (3000 K)/545-858 (4000 K)

Year of Launch: 2014

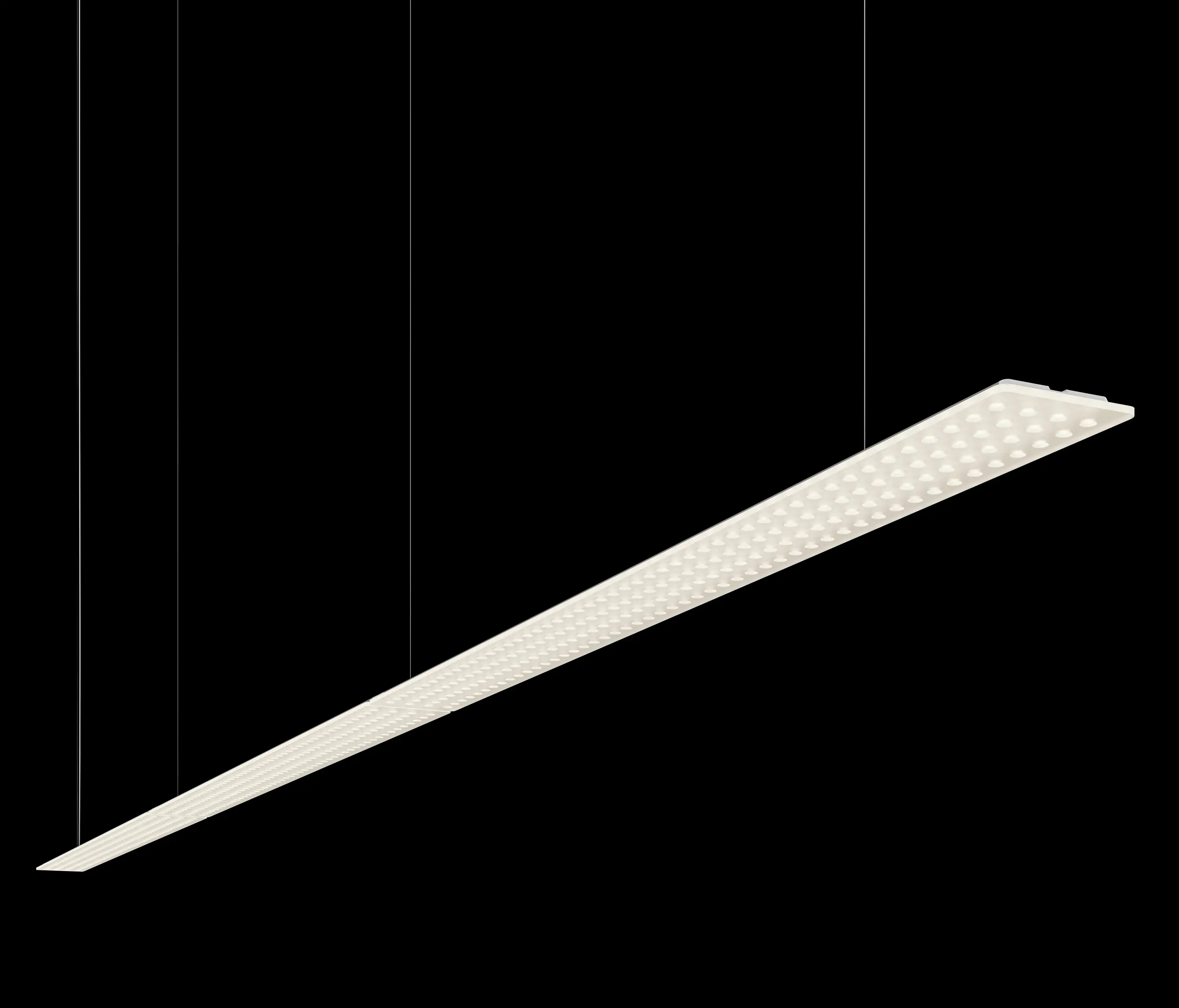

Extremely slim, height-adjustable LED suspended luminaire for wide-area room lighting for offices and workplaces, sequence of three luminaire modules L 196, mechanical and electrical link by 2 connector elements, support made of anodised aluminium, diffuser made of matt acrylic glass with conical indentations for directing light, glare reduction in accordance with DIN EN 12464-1, suitable for the workplace, 98 % direct beam, version for 24 volt or external converter, set includes 2 x modul connectors made of aluminium, white powder coated, 4 x stainless steel suspension cables, adjustable 100 – 1500 mm.

dimensions:

4536 x 135 x max. 1500 mm

LED technology, 70,5 W power supply, 24 V DC

luminous flux:

9900 lm

IP 20

Concept

In terms of form, the new Modul L luminaires fit seamlessly into the Modul Q and R ranges and add an elongated suspended luminaire to the product family which provides efficient, wide-area room lighting for offices and workplaces. The individually suspendable Modul L 196 with its 40 watt power consumption is the perfect alternative to conventional louver luminaires. With a minimal height of just 19 mm, it fits in perfectly with the surrounding architecture and its optimised conical indentations provide a pleasant light in compliance with DIN 12464-1 specifications for glare suppression. Additional indirect lighting for atmospheric room illumination can be integrated in the extremely slim central technical channel of the Modul L 196.
