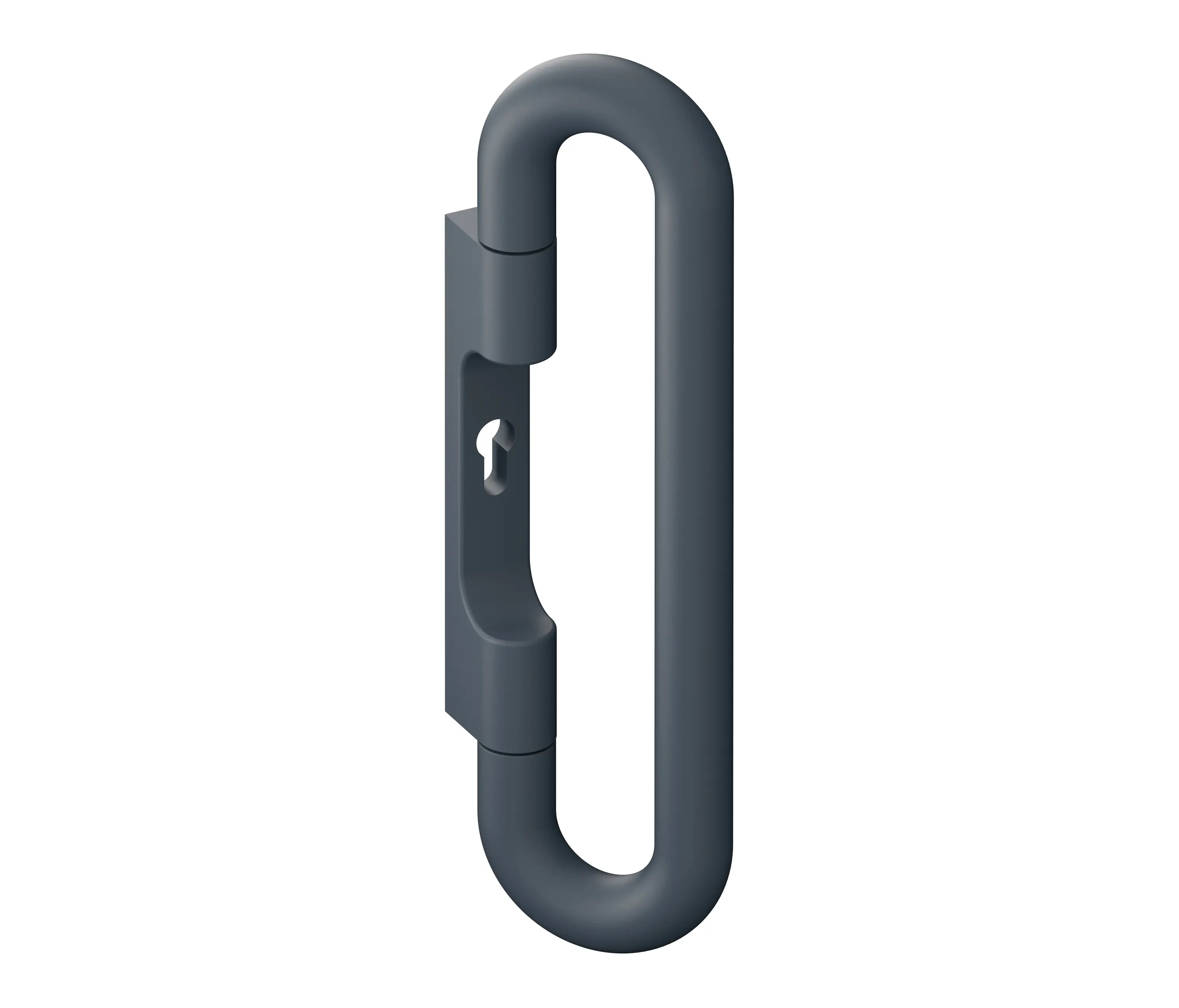

Push/pull handle set | 111PBDG02

System 111 push/pull handle set

Handle made of solid coloured high-quality matt polyamide, with steel core diameter 33 mm, closed oval, height 400 mm, width 105 mm, high polished, backplates made of metal with matt polyamide cap, maintenance-free plain bearings, mechanical adjustment for the pull handle. Fast installation on the door due to already preassembled pull handles on the bottom section.

Suitable as operating element on doors to DIN 18040, with accessibility function within operating range at 850 mm above FFL. Contrasting design in coloured polyamide.

Installation in pairs, function in opening direction- push, function in opposite direction- pull, with continuous spindle.

Classification key:

spindle 8 mm- no classification

spindle 9 mm:

Designed and tested for projects, classification to EN 179

user category: Class 3

Durability: Class 7

Door weight: Class 6

Use on smoke/fire doors: Class 0. A or B

Safety personal security: Class 1

Corrosion resistance: Class 3

Security: Class 2

Security- Burglary protection: Class 1

Type of operation: B

Field of door application: Class A, B, C or D

The classification results only in connection with the lock according to EN 179, for example, BKS, Fuhr or Fliether

The selected combinations are assigned freely and do not have to take on a lock manufacturer.

For more information, contact HEWI or the lock manufacturer!

Article no.: HEWI 111PBDG02

Article no.: HEWI 111PBDG02D- One-sided installation (half-fitting), function- push, with one-sided spindle

Article no.: HEWI 111PBDG02Z- One-sided installation (half-fitting), function- pull, with one-sided spindle

Article no.: HEWI 111PBDG12- Installation in pairs, function in opening direction- push, function in opposite direction- pull, with split spindle.
