Wall partition systems from Feco

Image search Search products by image

Product description

• Glazing as post-and-beam construction centrally in the wall
• According to requirements single-pane or insulation glazing
• Posts and beams are each only 50 mm wide
• Wall thickness tapered to 80 mm (post) respectively 72 mm (beam)
• Top glazing with recessed posts and concealed lower glass frames
• Surfaces optionally finished with anodised aluminium or powder-coated in RAL-colours
• Sound insulation test certificates for glass wall Rw,P = 32 dB up to 42 dB
• Sound insulation test certificates for top glazing wall Rw,P = 37 dB up to 47 dB
• Fire protection of top glazing E30 undivided up to w x h = 2.00 x 1.15 m
• Fire protection of glass wall EI30 undivided up to w x h = 1.35 x 3.00 m

Concept

Clear structure

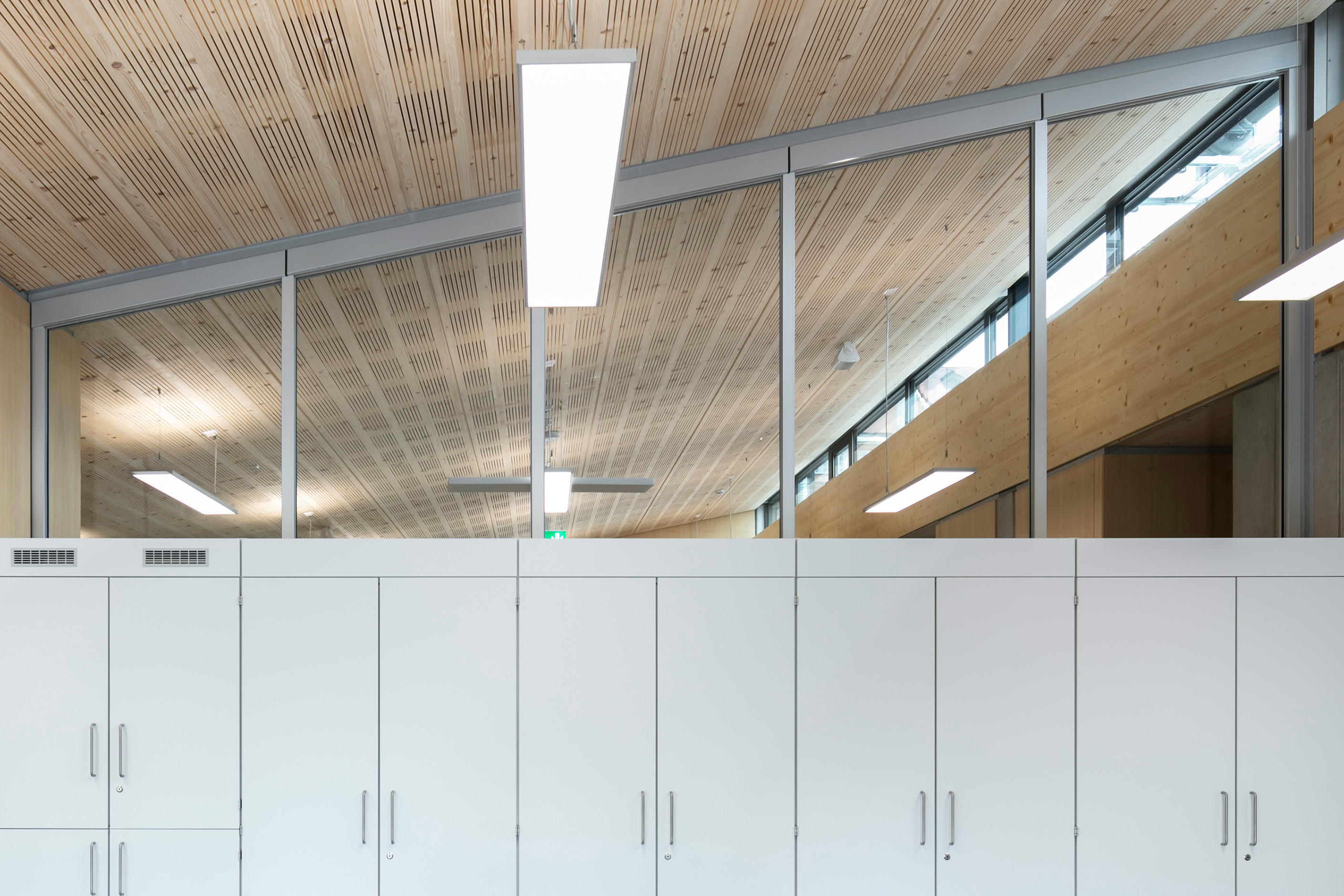

Glass elements as large as possible. Clearly structured posts and beams. Transparency becomes an architectural pleasure. The fecopur glazing brings design freedom right down to the last detail and creates attractive rooms with clear views. Posts and beams are only 50 mm wide. Single-pane or insulation glazing is installed on site, quickly and economically. Also available as E30 and EI30 glazing.

More about this product

Categorised in Sound insulation - Space partition - Sound insulating partition systems - Wall partition systems - Material glass - sound-absorbing - Interior construction - Glass.
Part of the collection GLASS WALL.
Manufacturer Feco
Family fecopur
Architonic ID 20129224
