Product description

Architonic ID 1183157

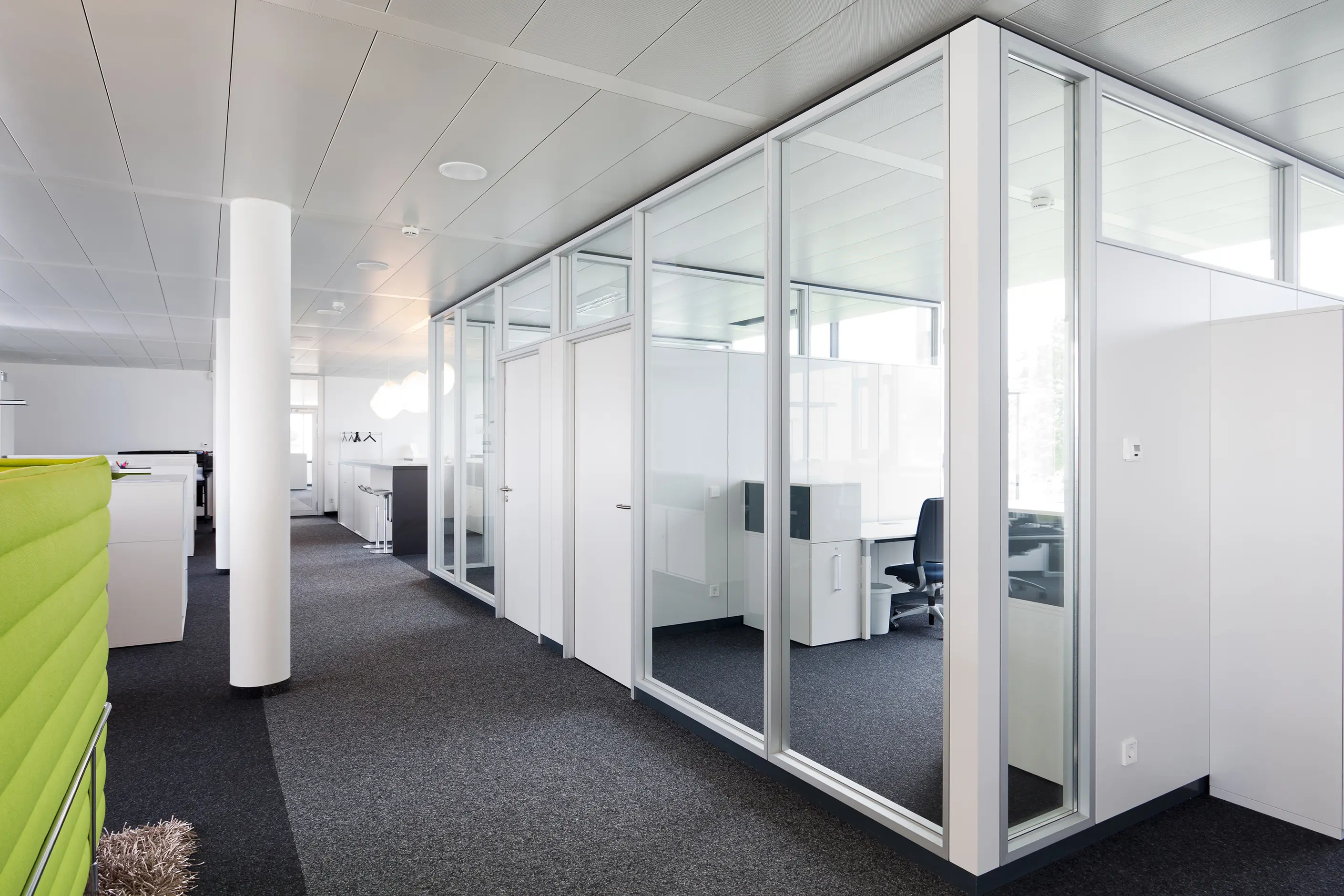

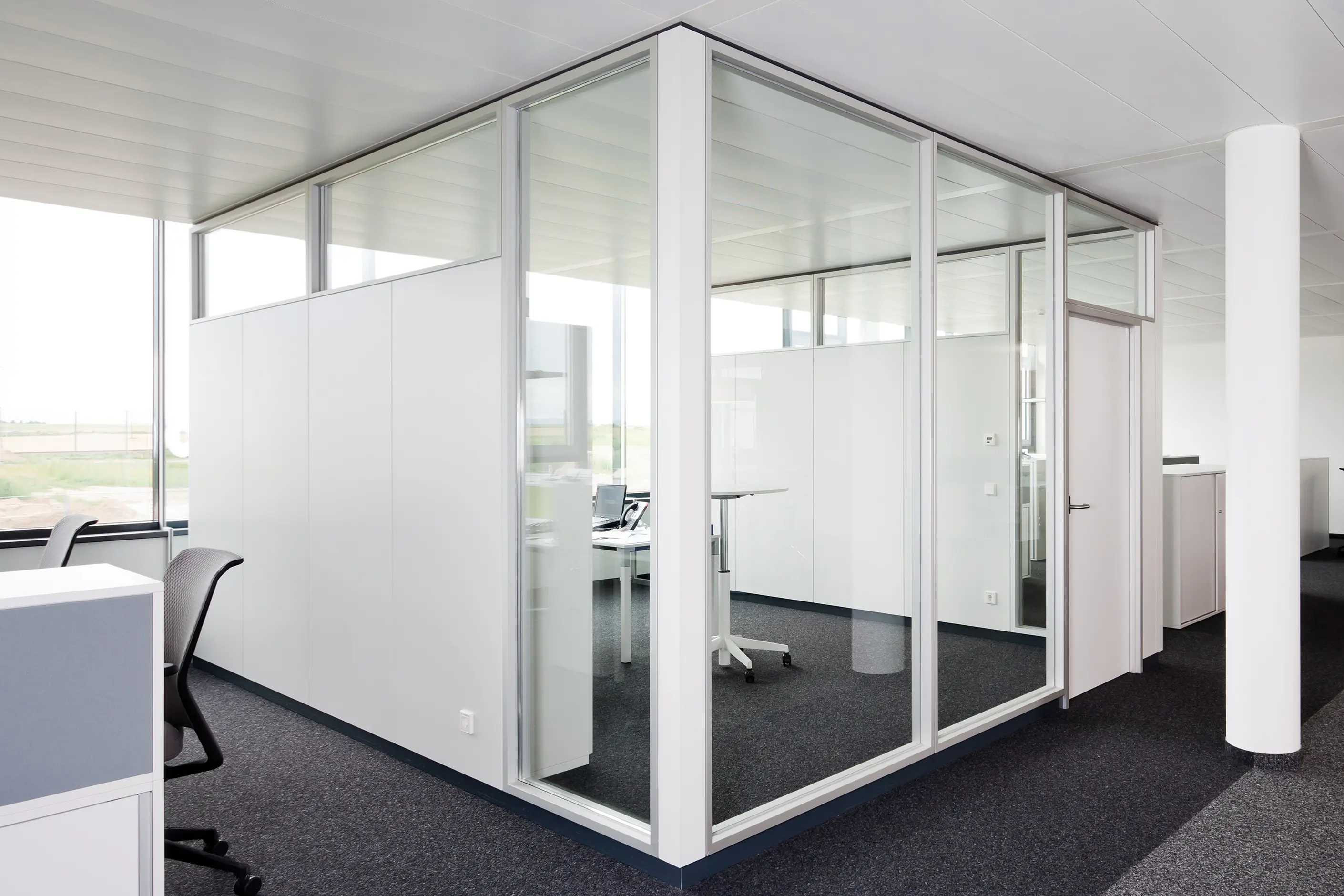

• Glazing as element construction centrally in the wall
• According to requirements single-pane or insulation glazing
• Aluminium glass frame with width of 22 mm vertically and 35 mm horizontally
• Wall thickness 105 mm, flush with solid wall and door elements
• Surfaces optionally finished with anodised aluminium or powder-coated in RAL-colours
• Sound insulation test certificates for glass wall Rw,P = 32 dB up to 42 dB
• Sound insulation test certificates for top glazing wall Rw,P = 37 dB up to 47 dB
• Fire protection of top glazing E30 undivided up to w x h = 2.00 x 1.15 m
• Fire protection of glass wall EI30 undivided up to w x h = 1.35 x 3.00 m

More products from fecocent family

Downloads

Manufacturer’s Catalogues

Download

Related Projects

Concept

Elegant versatility
Impressive slender aluminium frames: with a frame width of only 22 mm and optionally single or insulation glazing sound insulation values of up to Rw,P = 42 dB can be achieved. Fire protection rating E30 or EI30 is available on request. 35 mm wide profiles at the floor and ceiling provide for telescopic connections. Flexible, economic and exclusive.
