Product description

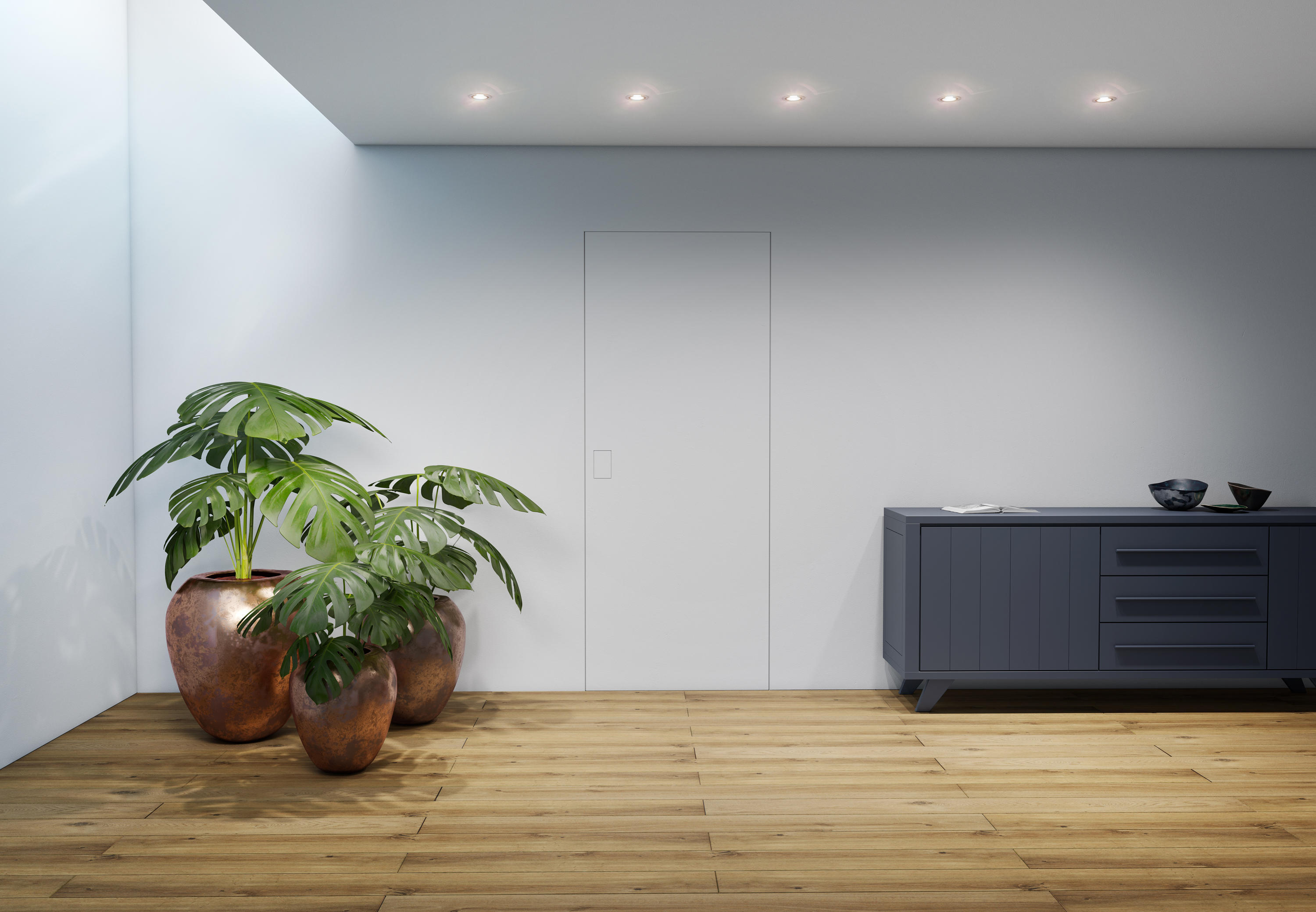

When the door is closed, the invisiframe S door leaf aligns perfectly with the same plane as the wall into which the system is integrated. This means that the door is completely invisible, which makes even a handle superfluous. When the door is open, the door leaf disappears into the wall completely. When you want to close the door again, the door leaf appears out of the wall to slide nicely into the same plane as the front of the wall. The wall opening is closed off nicely by a moving cover profile. Thanks to the integrated auto-eject, the door can slide into the wall completely and still remain accessible. With a slight push on the side of the door leaf, it emerges to be moved further into a closed position. Invisiframe S thus represents a minimalist sliding door integrated into the wall, both when open and closed! This beautiful finish is also combined with a sublime operation. The refined finish of this door system does not stand in the way of its perfect operation: invisiframe S is equipped as standard with a softclose system to close the door softly and independently. The product has also been designed in such a way that the door leaf remains easily adjustable. Even when everything is finished, the rollers, softclose, and auto-eject can always be disassembled without damaging the wall.

Why choose the argenta invisiframe S ?
• Best of both worlds: closes like a revolving door and saves space like a door that slides into the wall
• A complete solution
• Quick and easy installation

What are the benefits?

• AESTHETICS
- When closed, the door melds seamlessly into the wall.
- 100% free passage because the door slides into the wall completely
- no visible frame around the door
- paintable primer coating as standard
- opening in wall is closed by a moving cover profile
- door closes softly and independently and is finally ‘trapped’ in a TPE seal
- an auto-eject is a pleasant way to hide the door away and still make it accessible

• EFFICIENT INSTALLATION
- finishing with double plasterboard panels is possible (only with a wall thickness of 125 mm)

• CAN BE APPLIED UNIVERSALLY
- the back of the wall can be adapted to any wall thickness.

• PLASTER CRACKING IS PREVENTED THANKS TO THE
- solid construction framework (integrated corner connection)
- stable profile
- solid and easy wall mounting using screws
- special dovetail profiling for good PUR and plaster adhesion


Dimensions regarding the door

• DIMENSIONS
- clear height = door height + 14 mm
- clear width = door width - 15 mm

• CLEARANCE AT THE BOTTOM
- front: 13 mm
- back: 7 mm

• SPACING
- 2 mm to the top
- 3 mm to the bottom

Product family

Concept

“Discrete interior doors” - thé trend for a timeless interior style with a sleek and minimalist design. With its invisible door systems ARLU responds perfectly to this trend. Thanks to these systems, closed doors and walls constitute one whole: the disturbing frames disappear, while the hinges are mounted in such a way that from the outside they are no longer visible. ARLU offers an ‘invisible’ solution for revolving doors, pivoting and sliding-in-the-wall doors.
