Zumm

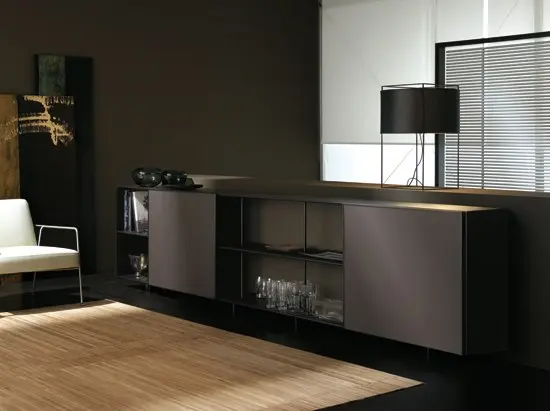

Wall shelving system in extruded aluminium and upright tubes are the basic elements of this system enabling to build a vaste range of compositions, from open shelving units to long closed cupboards. The formal and cosntructive synthesis, the variety of finishings and available accessories make of ZUMM a suitable product both for Residential and Contract. There can be either fixed to the wall "unlimited in height and length", or self-standing or hanging on the wall.

Wall rack modular system.

Adjuster bases: 2 required per piece of furniture. Steel Foot epoxy 9006 coated or black painted. Adjuster foot between 7 and 9 mm heights.

Wall racks: Extruded aluminium with surface slightly grooved, 15 mm thick. Background shelves 50 cm, consist of 2 profiles (32.5 +17.5 cm) that are shipped disassembled for assembly at destination.

Shelves are identified according to their position in assembly:

I: Bottom shelf.

IN: Standard intermediate shelf

IA: Intermediate shelf for wall fixing in wall racks with more than 4 shelves.

SA: Top shelf when wall rack has 6 or more shelves.

SB: Top shelf when wall rack has less than 6 shelves.

Spacers: Rod 16 x 330 or 16 x 400 mm diameter finish in matt chrome or black chrome. Spacers to be used in top section of wall rack have a through hole to allow a thorough tightening. It is convenient to identify them before starting the assembly.

Sliding doors: Extruded aluminium frame.

Glass: beige, coffee, aluminium or red colour.

Side locks: Steel sheet 6 mm thick, aluminium or black colour painted.

Rears: Steel sheet 1 mm epoxy coated.

Load capacity: 70 kg/shelf lineal meter

Scheme: 33 cm spacer
