TIMax® GL / TIMax® GL-PlusF

TIMax® GL

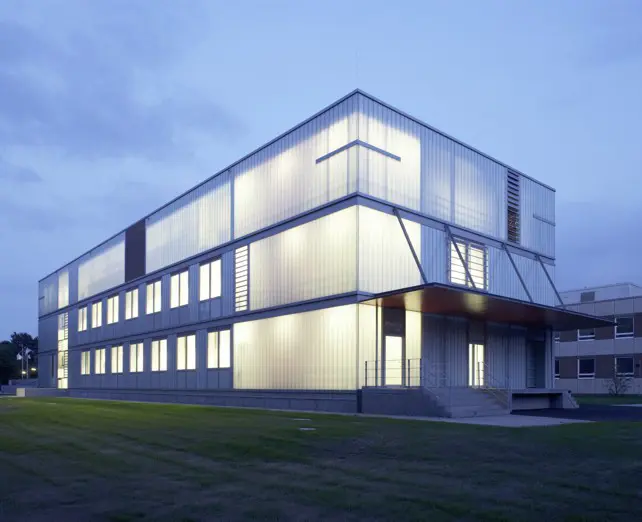

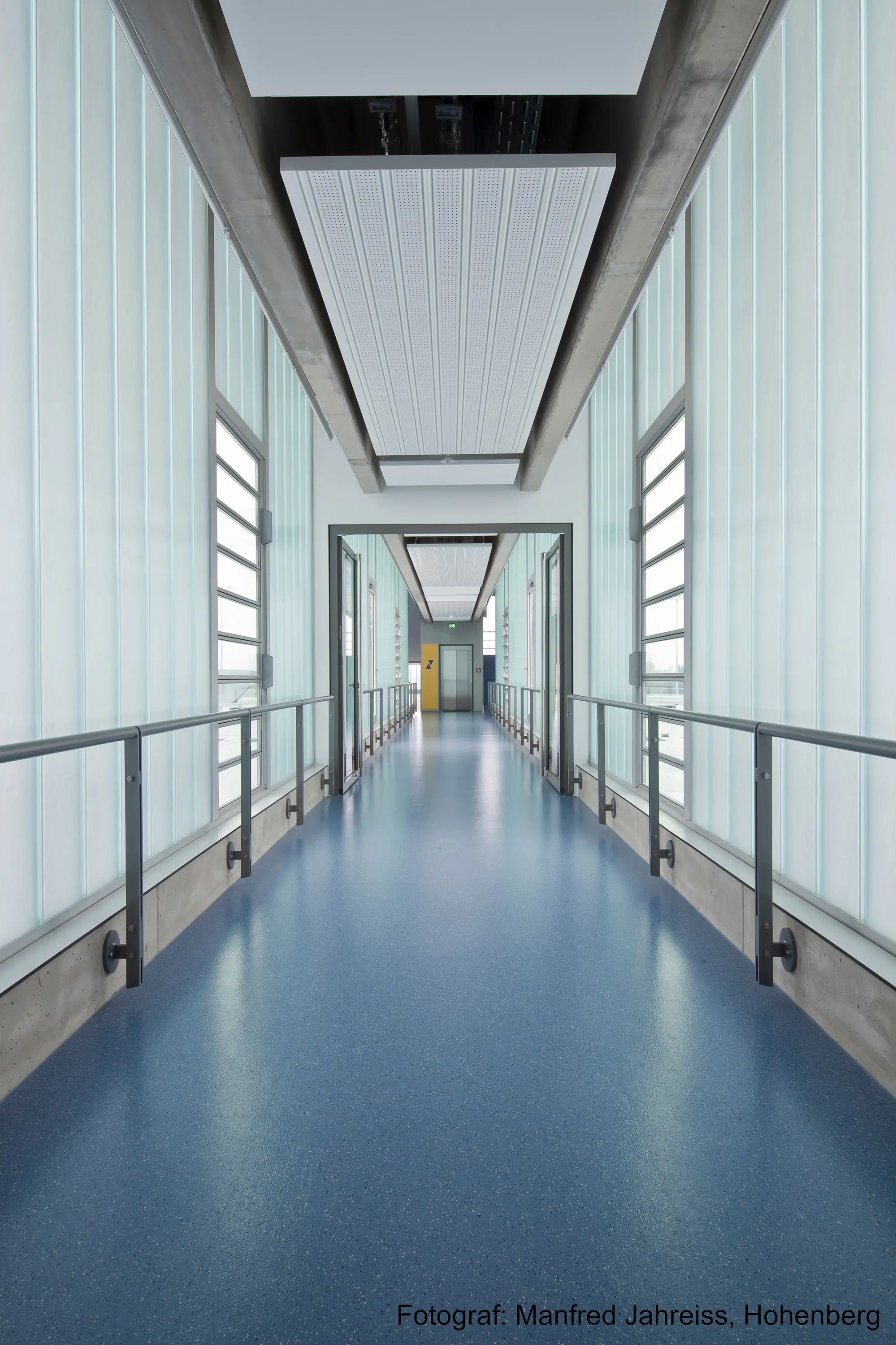

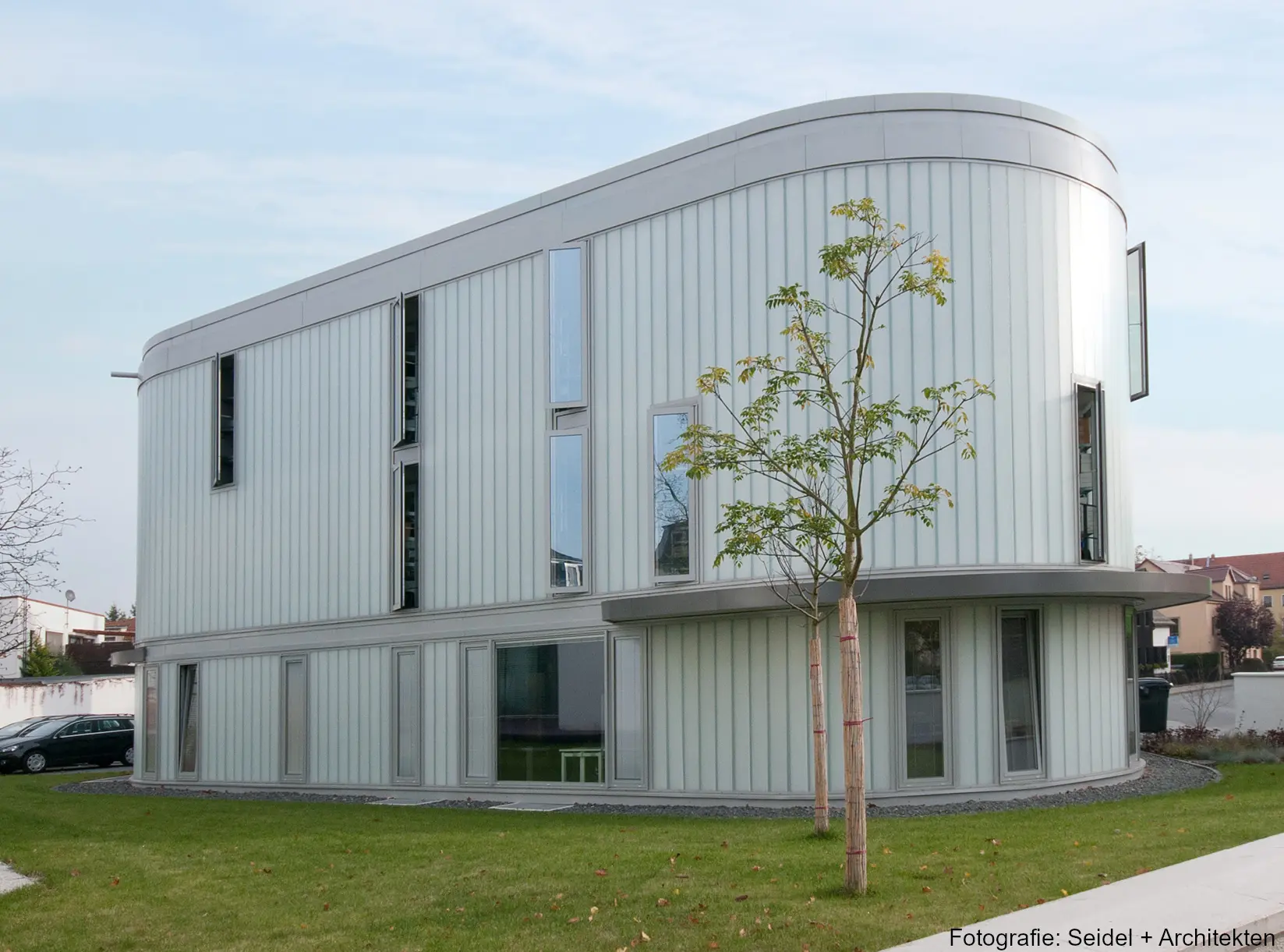

TIMax® GL is a translucent glass fibre insulation material, which enhances the heat insulation (U-value) of U-profiled glass facades. It scatters incoming light nicely and fills the space between the double glazing unit completely. TIMax® GL additionally offers sun protection, because it reduces solar heat penetrating the window in the summer.

TIMax® GL is both, translucent and light scattering. Due to the effect of scattering light even deep rooms can be illuminated evenly, without blending and shading. TIMax® GL is UV-stable, temperature resistant up to 100°C and insensitive against humidity. It is easy to install.

With TIMax® GL in double-glazed U-profiled glass a Ug-value of down to 1,4 W/m²K can be achieved.

TIMax® GL-PlusF

TIMax® GL-PlusF is an advanced version of the translucent insulation material TIMax® GL and is often used, when there are higher demands for heat insulation.

In comparison to the standard material TIMax® GL the translucent insulation material TIMax® GL-PlusF has a higher density. It is more compressed in the double glazing unit, resulting in an optimal heat insulation (U-value) and improved sun protection (lower g-value). Because of the higher density the light transmission of TIMax® GL-PlusF is lower than the light transmission of TIMax® GL.

With TIMax® GL-PlusF in double-glazed U-profiled glass a Ug-value of down to 1,2 W/m²K can be achieved.
