Palladio | Shelter

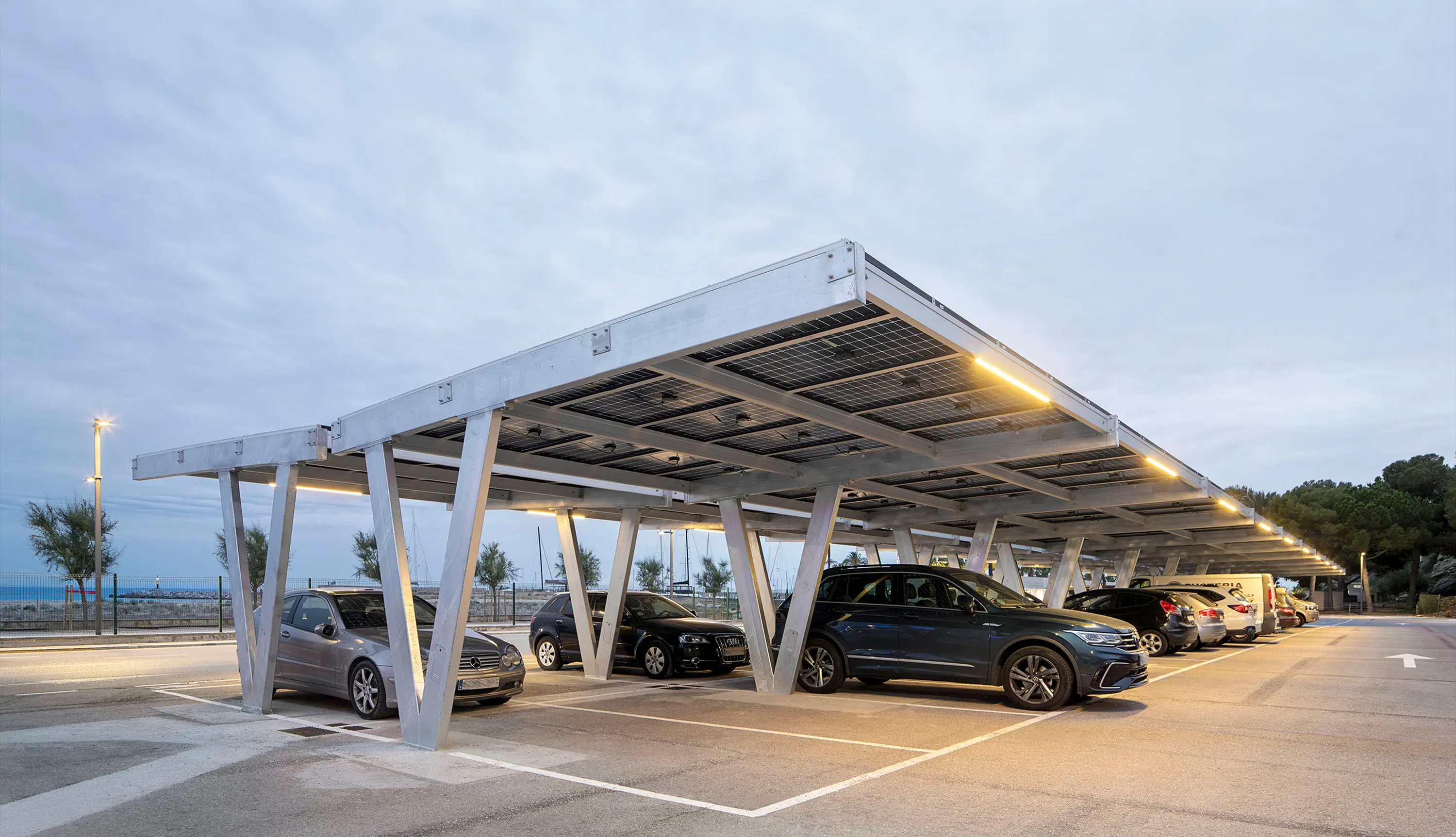

Large size shelter for parking lot that offers a flexible vehicle organization system and a photovoltaic energy covering. The photovoltaic covering of the Palladio parking lot shelter allows continuous areas to be created in a line, ensuring uninterrupted shade to be projected, thus reorganizing the urban space.

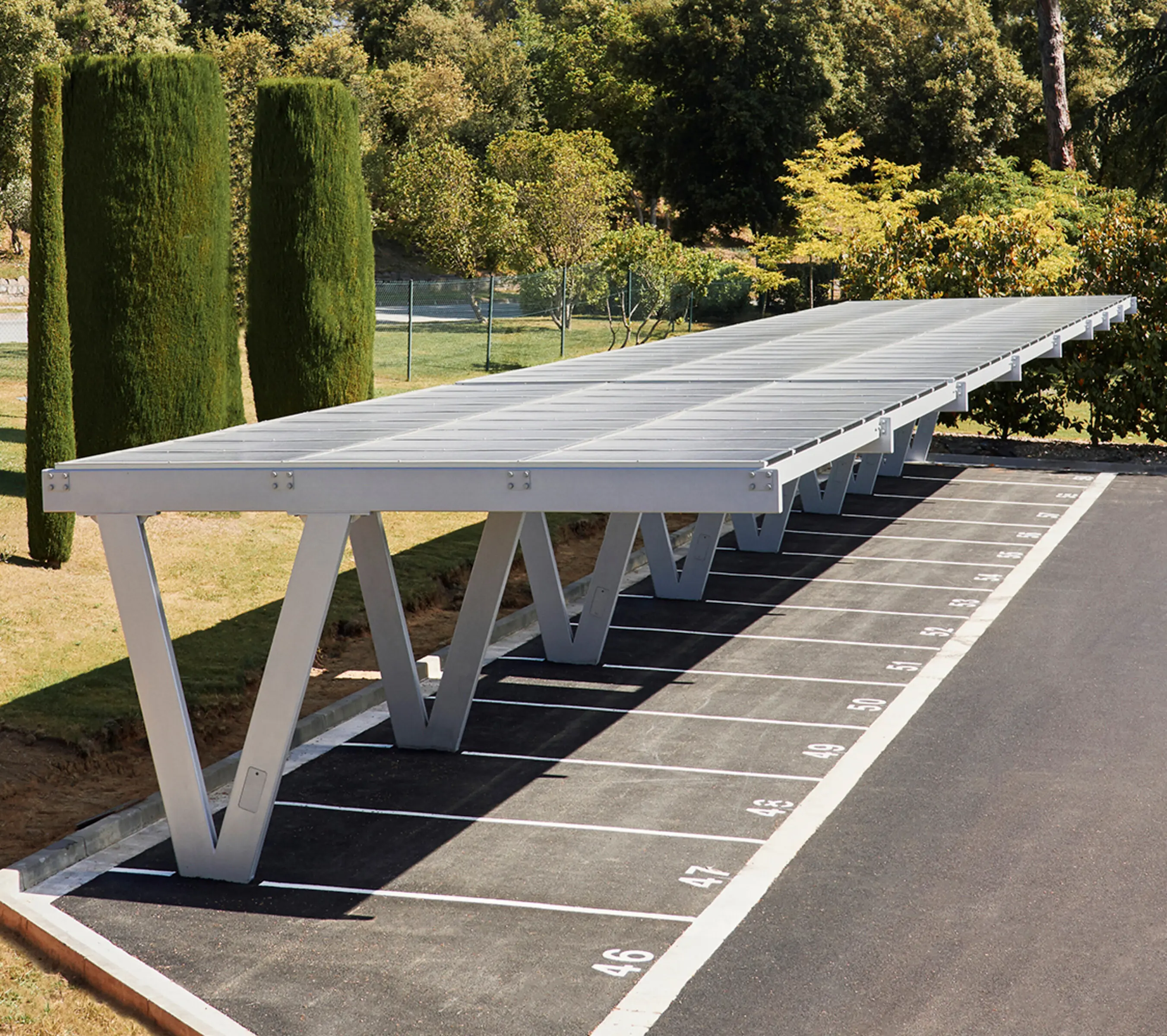

Due to the pillars that are behind each corresponding girder, the setting of the structure facilitates the maneuverability of vehicles. The coverings are supported on these elements, creating a watertight area in a continuous line. The Palladio urban shelter announces our commitment to more useful and sustainable urban spaces.

Distributions. Asymmetric: Type V.

Light source: 1x 1.5m Linear LED 22.5W. 3300K 80CRI. CE, RoHS, IP67 (protection of the luminaires against the penetration of solids and liquids). Electrical Class III.

Energy production: 4.8 kWp per module (310 Wp x 15 photovoltaic panels). STC (standard measurement conditions): 1000W/m2 irradiance, AM 1.5 spectral distribution Temperature 25±2oC. CE, IP67 (degree of protection of the luminaires against the penetration of solids and liquids) DVE (health and safety requirements), MCS (certified facility), BBA (British Board of Agrement), Electrical class II.

Certificates: CE, ROHS, IP67, CLASE-III.

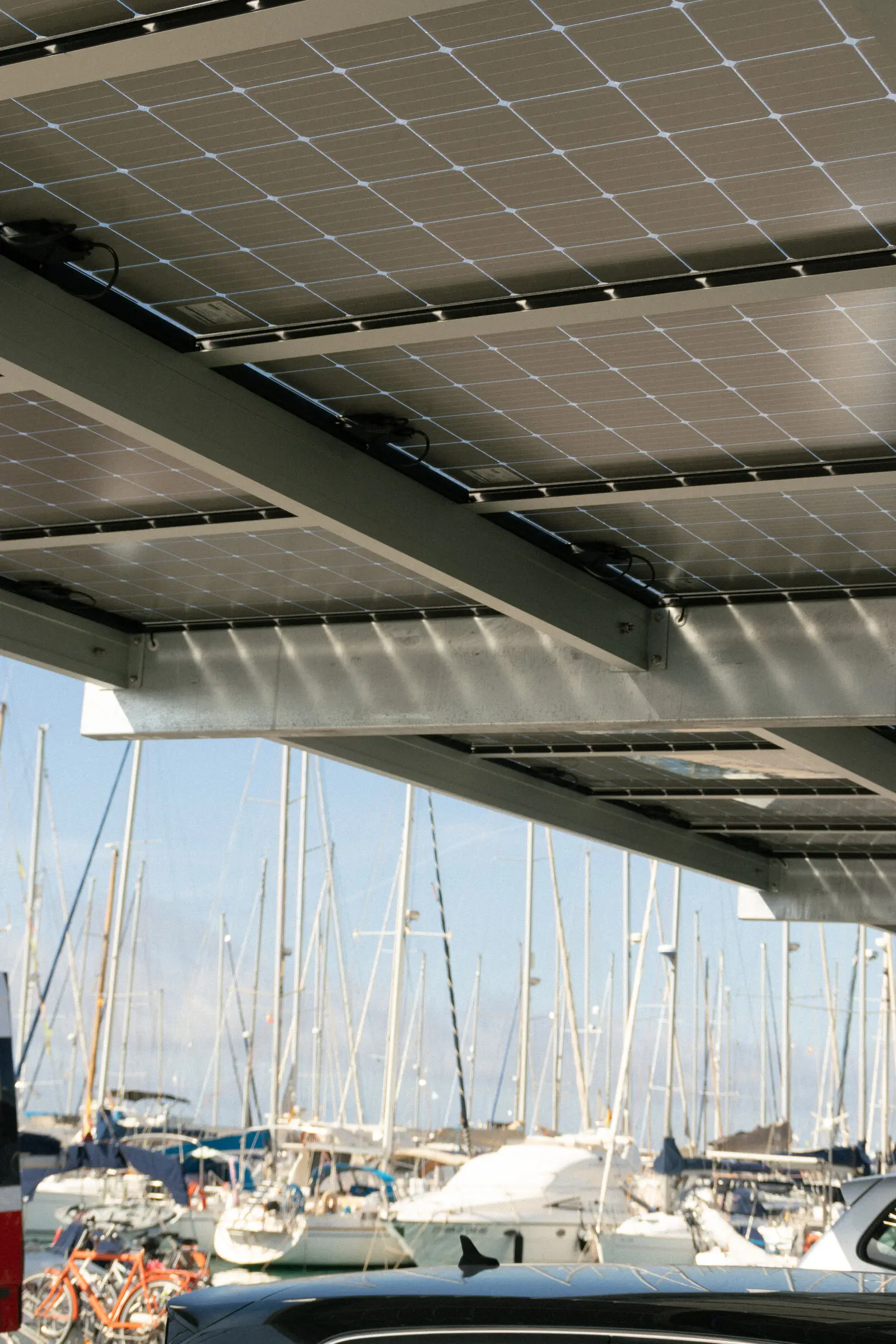

Materials: Large 25m2 shaded roof made up of 1780x1052mm photovoltaic panel modules in 2+2mm double tempered glass and high-power PERC cells encapsulated in polymer. Two V-pillars, two 300x100mm girders in S275 JR steel, hot-dip galvanized, painted with C3 protection, four 164x60mm crossbars and longitudinal sealing profiles in 6063-T6 extruded aluminum with anodized finishes. Union elements in AISI304 stainless steel with painted finishes. A4 stainless steel screws.

Finishes. Structure: Light grey / Cover: Photovoltaic panel.

Approximate weight without packaging (kg):

- Initial module: 1283

- Line module: 975
