About this product

Architonic ID: 1460897

Year of Launch: 2017

Material: aluminium frame in rust brown or anthracite grey

Light source: incorporated dimmable LED

Dimensions:

Ø90 cm x H. 82.60 cm – max H from the ceiling 380 cm

Ø120 cm x H. 112.60 cm- max H from the ceiling 400 cm

Ø160 cm x H. 142.60- max H from the ceiling 430 cm

Sound absorbing version upon request

Thickness: 25mm

Sound absorption factor: about 0.6

Fire resistance: B-S1, d0 (EN13501)

Emissions (SP Ref. F1 22842): odor free, emits no gases

Color NCS: 1002 – R

Light source:

PL UL X 090

LED 54W- diffused beam

3000K*, 2700K, other CCT options available upon request

PL UL X 120

LED 74W- diffused beam

3000K*, 2700K, other CCT options available upon request

PL UL X 160

LED 102W- diffused beam

3000K*, 2700K, other CCT options available upon request

PL UL X 180

LED 123W- diffused beam

3000K*, 2700K, other CCT options available upon request

IP20

Concept

U-Light, the circle closes

Timo Ripatti completes the lucky and iconic U-Light collection by remodelling the aluminium curves in an innovative and playful way in a series of perfect luminous circles either suspended or mounted onto the wall or ceiling.

Indeed, the U-Light collection includes two different models, which share the same circular aluminium element. The first version, which was presented in 2016 and includes three suspension lamps, teams together two curved lines: an upside-down U-shaped line and a ring underneath it, where the light source is housed. The new 2017 version, which is even more graphic, consists of a single circular element and it is available as a suspension lamp, a wall lamp (also available in a semi-circle) and a ceiling lamp. In both models the LED light source incorporated into the frame diffuses a soft dimmable white light.

It can be positioned individually or in clusters, for an intense, theatrical effect. U-Light is extremely light-weight, yet it fills the space up and distinguishes installations with a strong scenic effect, proving a malleable tool for architects and designers who wish to define any type of setting with shape and light. The extensive range of models and sizes in fact makes it possible to play on several architectural plans and achieve various styling effects.

This product belongs to collection:

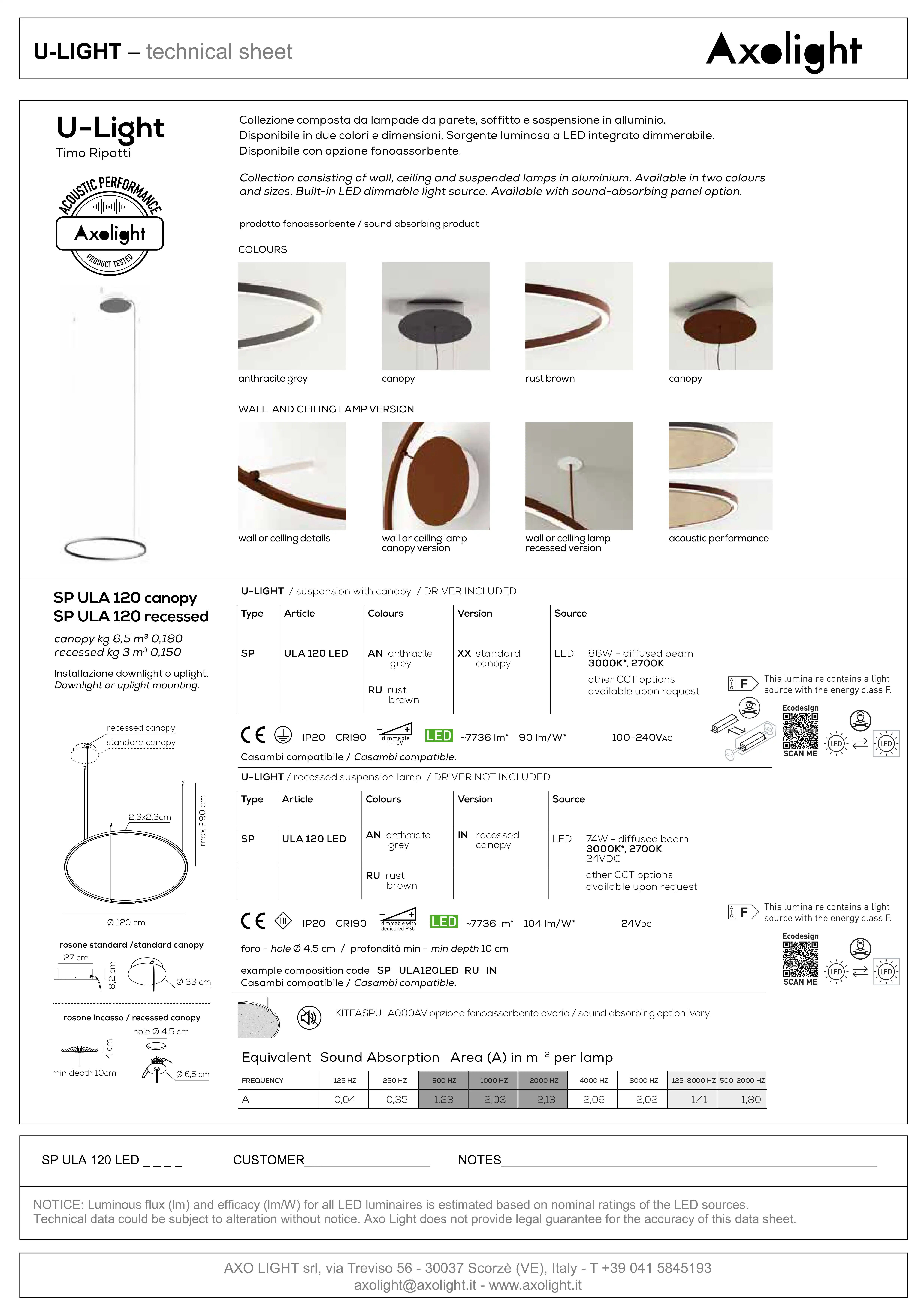

Specifications
