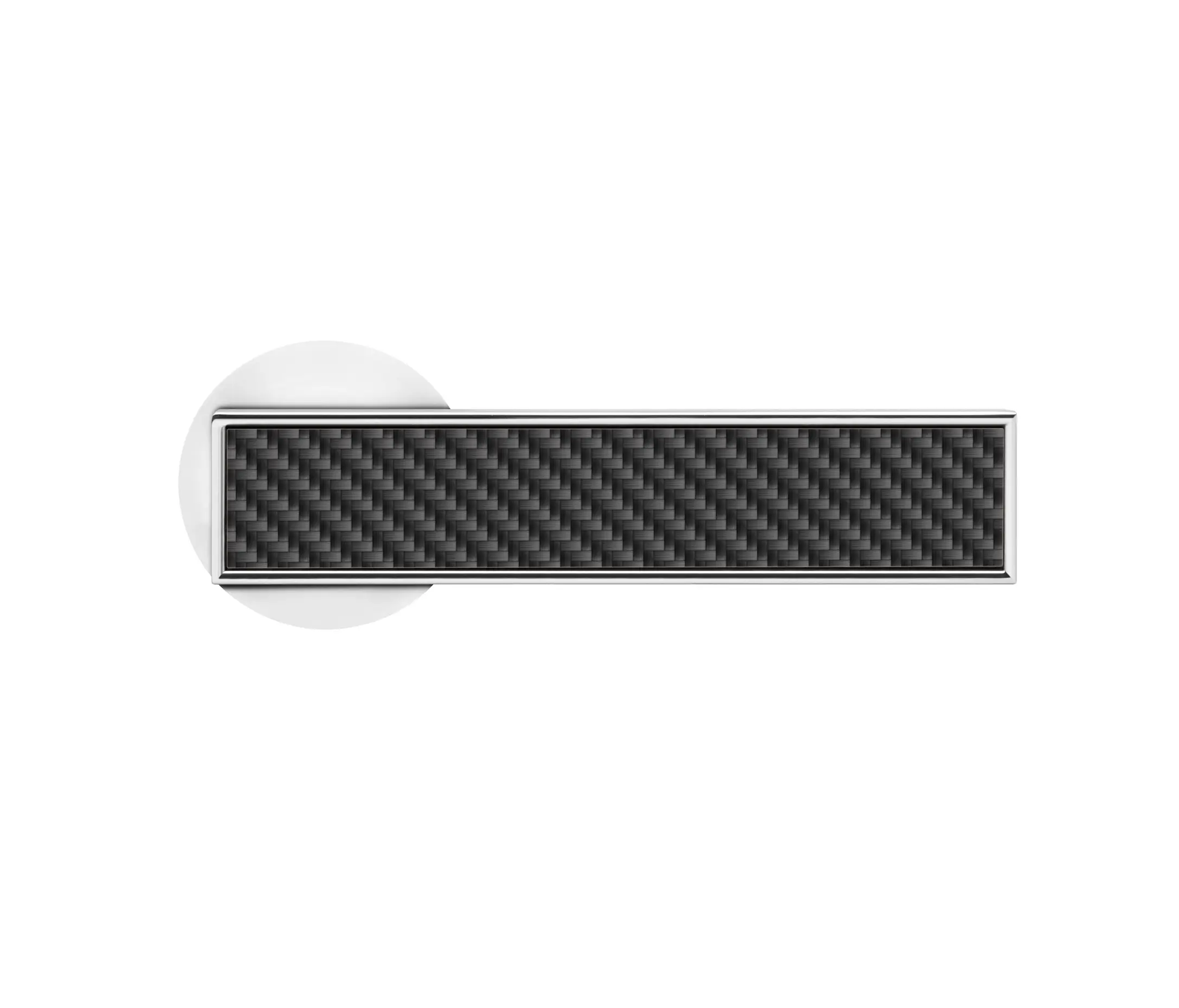

Torino EPL53 C1 (50)

Lever sets for standard doors

Lever version EPL53 Torino with Plan Design escutcheon (55*3mm)

by KARCHER DESIGN

Lever sets for standard duty for residential interior use and light duty for commercial interior use.

Standard Features:

• 3 piece solid fixing rose 2 5/8″ (67mm) which will allow concealed fixing

• Spring loaded levers minimize droop and provide smooth, fast return action of levers heavy duty bolt through fixing prevents lock chassis rotations

• dimensions of handle: 5 1/2“ x 9/16 (140mm x 14mm)

• Door range: 1 ¼“ (31mm) – 2“ (51mm) standard

• Backset: 2 3/8″- (60 mm) backset latch standard.

• Stainless steel T-strike plate with plastic dust cover

• Stainless steel latch face plate

Options:

PAS- passage latch, backset 2 3/8” (60mm) and T-strike plate

PRI – privacy latch backset 2 3/8” (60mm) and T-strike

DUM – Full Dummy

DUML – Half Dummy Left

DUMR- Half Dummy Right

Special options (to be ordered separately)

UZ2570 PAS – Passage Latch with backet 2 3/4” (70mm)

UZ3070 PRI – Privacy Latch with backet 2 3/4” (70mm)

UZ2500 LS – Full Lip strike

UZUL P67 – UL-Latch

Finish: satin nickel (finish code 60)

Inlay: C1: Carbon

Karcher article no.:

UR53/… PAS 50 – with passage latch, backset 2 3/8” (60mm) and T-strike plate

UR53/… PRI 50 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate

UR53/… DUM 50 – full dummy

UR53/… DUML 50 – half dummy left

UR53/… DUMR 50 – half dummy right

UR53/… PAS 60 – with passage latch, backset 2 3/8” (60mm) and T-strike plate

UR53/… PRI 60 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate

UR53/… DUM 60 – full dummy

UR53/… DUML 60 – half dummy left

UR53/… DUMR 60 – half dummy right
