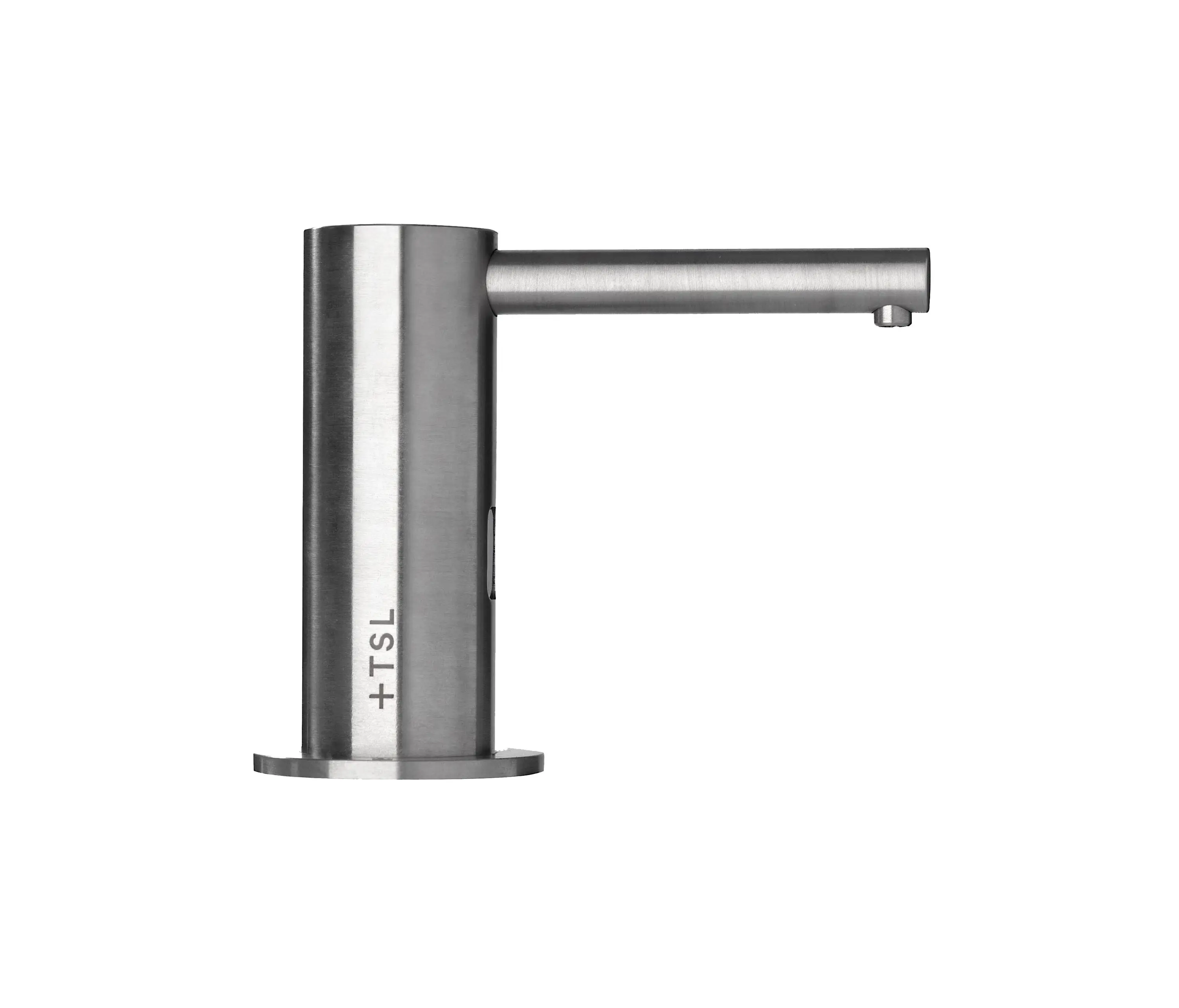

The Splash Lab - Radius | Satin TSL.420 Sensor Deck Mounted Soap Dispenser
The Splash Lab - Radius | Satin TSL.420 Sensor Deck Mounted Soap Dispenser
1/3
The Splash Lab - Radius | Satin TSL.420 Sensor Deck Mounted Soap Dispenser
Logo for manufacturer The Splash Lab
Live Link Gif

Radius | Satin TSL.420 Sensor Deck Mounted Soap Dispenser

Available variants:

Radius | PVD Black TSL.420 Sensor Deck Mounted Soap DispenserRadius | PVD Brass TSL.420 Sensor Deck Mounted Soap DispenserRadius | PVD Bronze TSL.420 Sensor Deck Mounted Soap DispenserRadius | PVD Bronze TSL.420 Sensor Deck Mounted Soap Dispenser
    Home/Soap dispensers/

    Radius | Satin TSL.420 Sensor Deck Mounted Soap Dispenser

About this product

Architonic ID: 20199774

SKU: TSL.420.CS

Weight 1Kg

Material AISI 304 Stainless Steel

Coating type PVD (colours only)

Power supply 110V- 230V ac; 50/60Hz

Output 1000mA

Standby power 0.1W

Standard discharge 1.0ml

Max hot water temperature 60°C

Recommended soap type Foam soap- <10cPS viscosity.

Not suitable for liquid soaps, alcohol gels or hand sanitisers

Soap reservoir capacity 1 Litre (standard) 5 Litres (optional remote feed)

Sensor range Preset 70mm (adjustable using seperate controller if required)

Max range 400mm

Min range 60mm

Sensor type Infrared Response time (max) < 300ms

Security cut-off time 30 seconds

Cable lengths Connection to sensor cable- tbc Connection to fused supply- tbc
