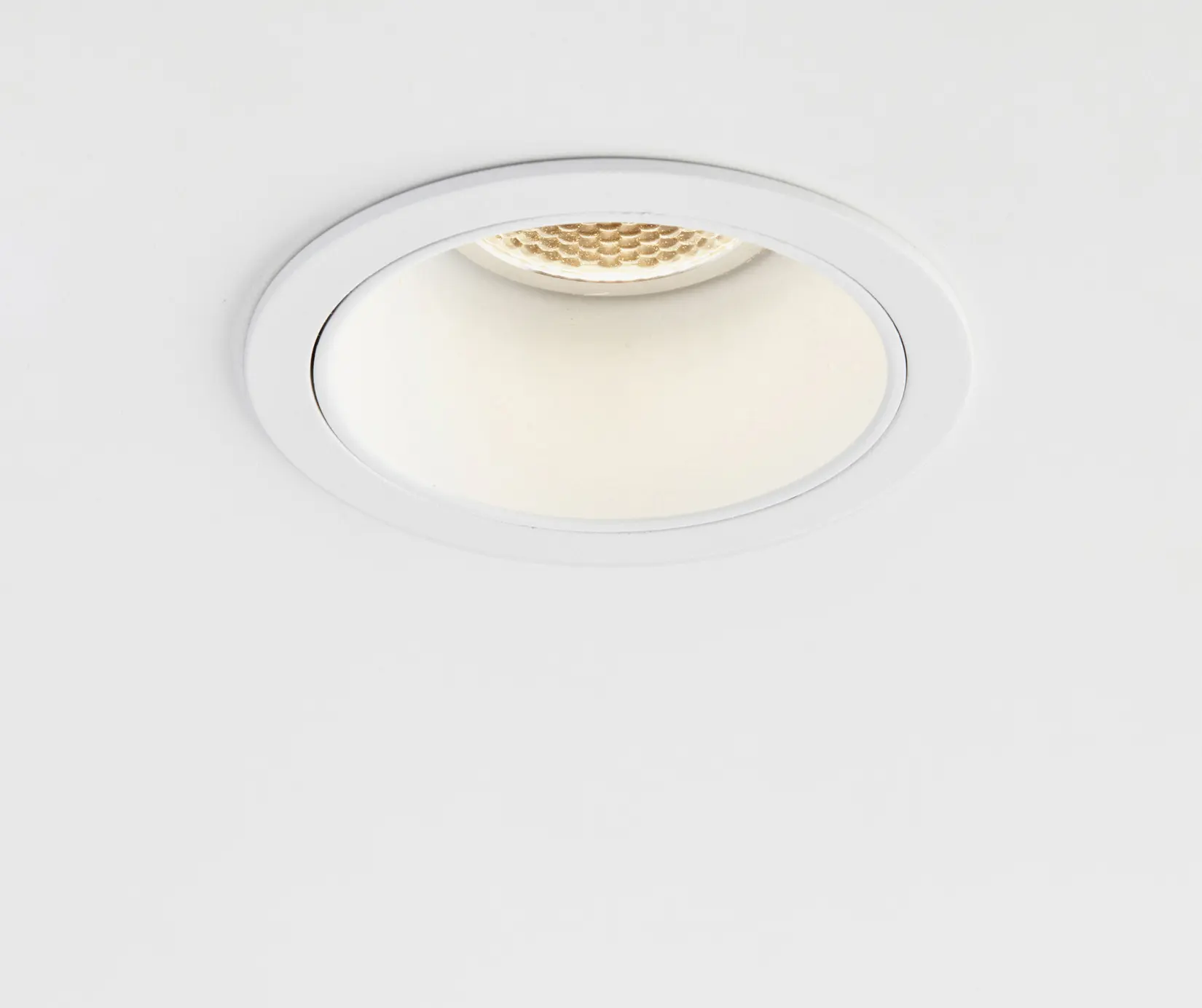

Flatspot-1 Trim 12V LED

Trim application: in case of non leveling ceiling surfaces.

Surface mounted frame possible for all Flatspot built-in.

Semi-recessed downlighter (both for installation in plasterboard as in hard ceiling).

Aluminium mirror be at one with the opening.

The mirror is removable.

Dimensions: cut out 83mm (81mm for concrete ceiling)- outside diameter 89mm- built-in height 130mm.

Power supply 12V AC.

Use: indoor (IP20).

Energy class A.

AVAILABLE COLORS

FLATSPOT-1- TRIM- 12V AC LED- BLACK- F007ZWT

FLATSPOT-1- TRIM- 12V AC LED- CHROME- F007CRP

FLATSPOT-1- TRIM- 12V AC LED- GOLD COLOR- F007AUL

FLATSPOT-1- TRIM- 12V AC LED- WHITE- F007WIT

The surface mounted frame will be painted as follows:

FLATSPOT-1- BLACK- surface mounted frame BLACK

FLATSPOT-1- CHROME- surface mounted frame WHITE

FLATSPOT-1- GOLD COLOR- surface mounted GOLD COLOR

FLATSPOT-1- WHITE- surface mounted frame WHITE

FLATSPOT-1- WHITE/CHROME- surface mounted frame CUSTOM COLOR only on request

AVAILABLE LAMPS

Soraa LED GU5.3 MR16 Vivid 95 CRI 12V 9W 2700K 465lm 25°- L027

Soraa LED GU5.3 MR16 Vivid 95 CRI 12V 9W 2700K 465lm 36°- L028

Soraa LED GU5.3 MR16 Vivid 95 CRI 12V 9W 3000K 465lm 25°- L029

Soraa LED GU5.3 MR16 Vivid 95 CRI 12V 9W 3000K 465lm 35°- L030

Soraa LED GU5.3 MR16 Vivid 95 CRI 12V 7.5W 2700K 390lm 10°- L121

Soraa LED GU5.3 MR16 Vivid 95 CRI 12V 7.5W 2700K 410lm 25°- L122

Soraa LED GU5.3 MR16 Vivid 95 CRI 12V 7.5W 2700K 410lm 36°- L123

Soraa LED GU5.3 MR16 Vivid 95 CRI 12V 7.5W 3000K 410lm 10°- L124

Soraa LED GU5.3 MR16 Vivid 95 CRI 12V 7.5W 3000K 435lm 25°- L125

Soraa LED GU5.3 MR16 Vivid 95 CRI 12V 7.5W 3000K 435lm 36°- L126

Soraa LED GU5.3 MR16 Vivid Warm Dim 12V 7.5W 2700K/1800K 410lm 25°- L176

Soraa LED GU5.3 MR16 Vivid Warm Dim 12V 7.5W 2700K/1800K 410lm 36°- L177

Soraa LED GU5.3 MR16 Vivid Warm Dim 12V 7.5W 3000K/1800K 430lm 25°- L178

Soraa LED GU5.3 MR16 Vivid Warm Dim 12V 7.5W 3000K/1800K 430lm 36°- L179
