About this product
Architonic ID: 20276253
model no. 08-1762 TECHNO EF

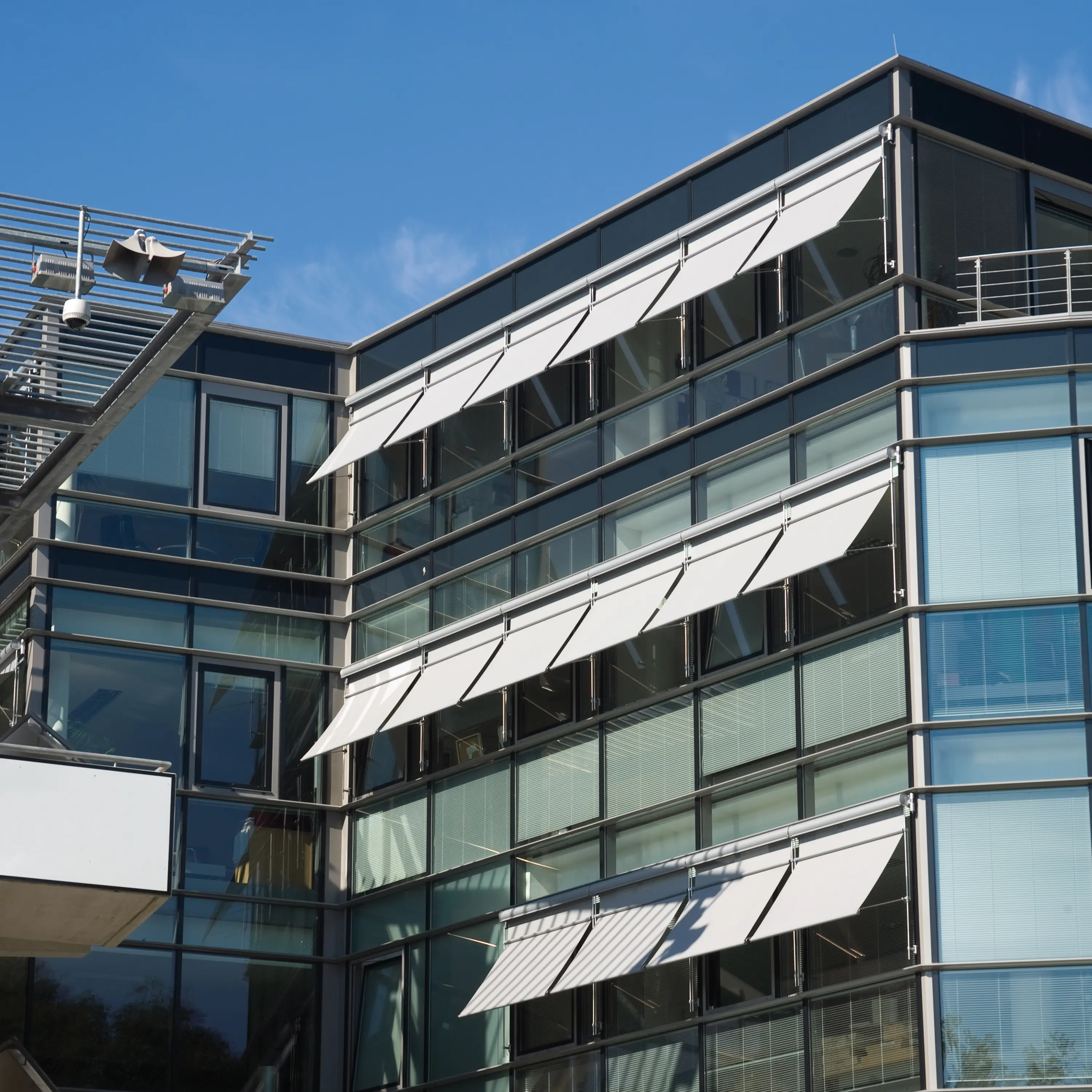

Drop arm awning with drop arm made of stainless steel Ø 10 mm. Drop arm joints made of cast aluminium, matt chrome-plated, with stainless steel spiral spring, deployment angle max. 110°, drop arms
for projections of 65, 80 and 100 cm. Cover (one piece, Ø 123 mm). Console and cable holder made of cast aluminium. Downpipe made of extruded aluminum Ø 35 mm, with groove for fastening the cover. Galvanized roller tube
Sheet steel Ø 78 mm. Operation by crank or electric drive. Coupling of max. 3 systems (max. width 800 cm) via an electric drive.
System width: 85 to 300 cm
Drop arms: 65 / 80 / 100 cm
model no. 08-1768 TECHNOEM
Identical in construction to type EF but as a markisolette with stainless steel guide rods (Ø 15 mm or Ø 10 mm). Drop arm joints made of cast aluminum matt chrome-plated with stainless steel spiral spring, release bracket
max. 110°, drop arms for 65 cm projection.
System width: 85 to 350 cm
Projection: up to 300 cm
Awning arm: 65 cm
Concept
MHZ awnings
Timelessly elegant classics
The MHZ awnings provide you with beautiful and intelligent sun protection. As articulated arm, window or facade awnings, they do a first-class job both optically and technically- even in large quantities. They keep out sunlight and heat and ensure a pleasant climate. In our collection you will find over 140 different color and fabric variants. The fabrics are lightfast, colorfast and have a dirt and water-repellent surface. MHZ awnings reliably protect you from harmful UV rays. We manufacture our awning fabrics to measure. We process them either with a high-quality UV-resistant sewing thread or using innovative welding and bonding technology.
- Made to measure according to your wishes
-Elegant look
-Optional: closed construction
-Mounting on wall, ceiling or niche
-Comfortable operation
- High-quality made-up
