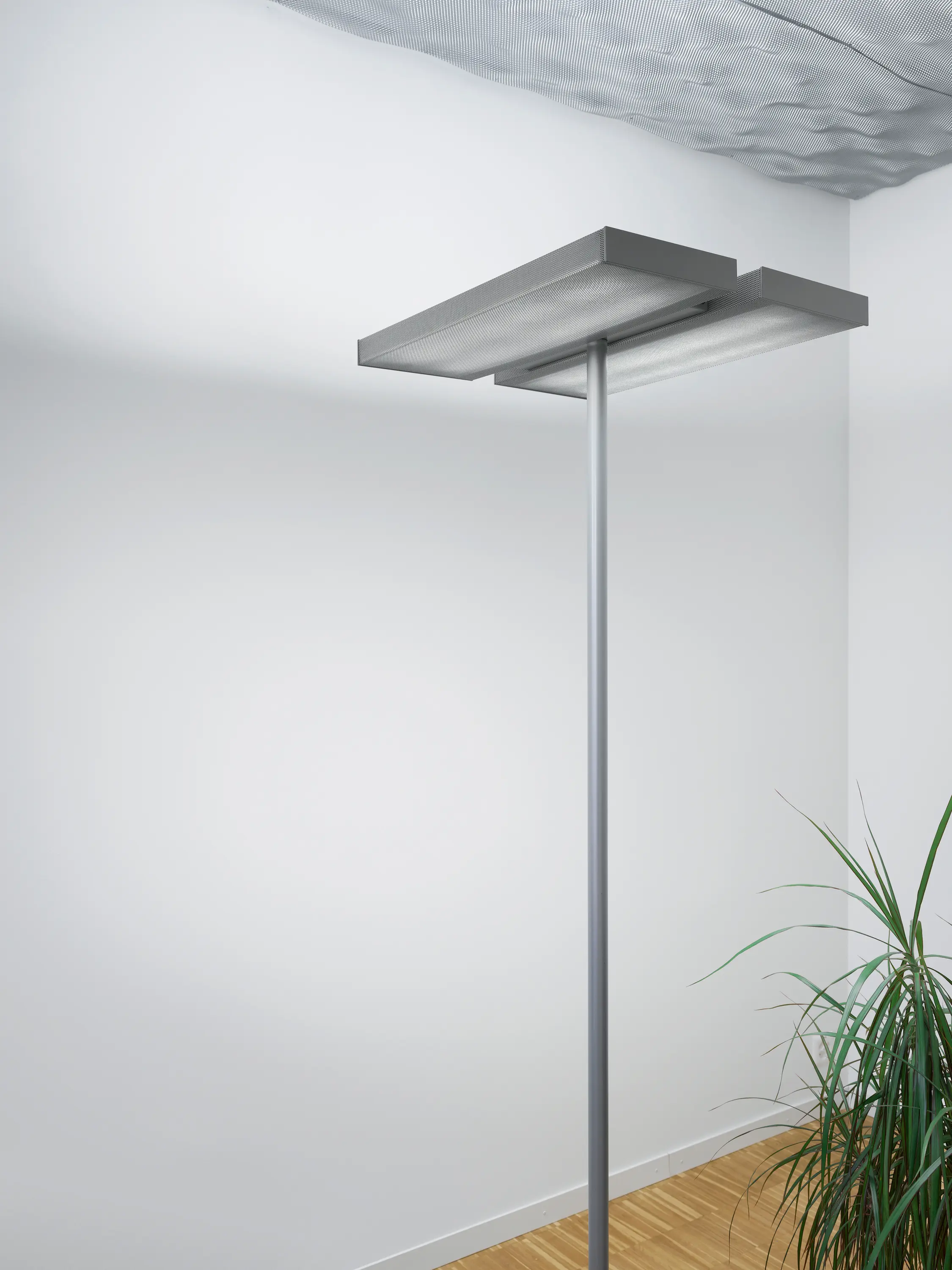

TAVA Floor luminaire

TAVA stands for minimalist design. The luminaire range combines attractive finish, advanced lighting technology and great user comfort. Powder-coated sheet metal casing and screen-printed display panels give the luminaire its distinguished look. To meet the needs of users, the floor luminaire is available with two different stand tube positions, and with a double or single-wing luminaire head. With a design that is reduced to what is technically necessary, the TAVA luminaires are unobtrusive yet extremely elegant.

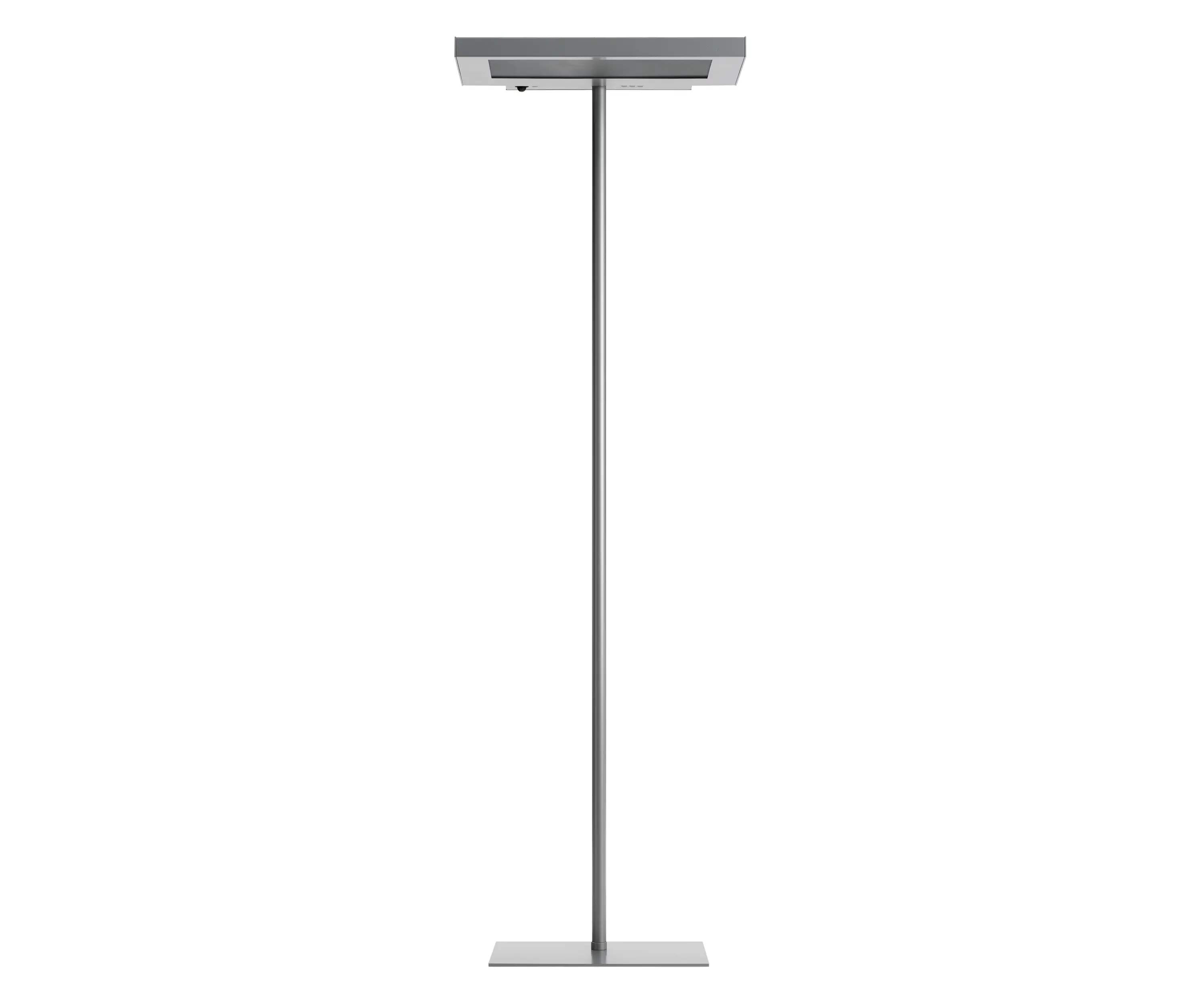

TAVA Floor luminaire indirect/direct lighting

Support frame in extruded and plain anodised aluminium. Luminaire and central casing consisting of sheet steel and perforated panel, silver coated. Halogen-free internal wiring.

Steel stand tube, Ø 30 mm, in chrome or silver finish. Steel luminaire stand base, with bevelled edges and 4 base pads, in silver finish aluminium. Supply cable 3x1 mm2, length 3000 mm, black, T12 type or earthing contact plug. Supplied in 2 packaging units.

Sensonic L

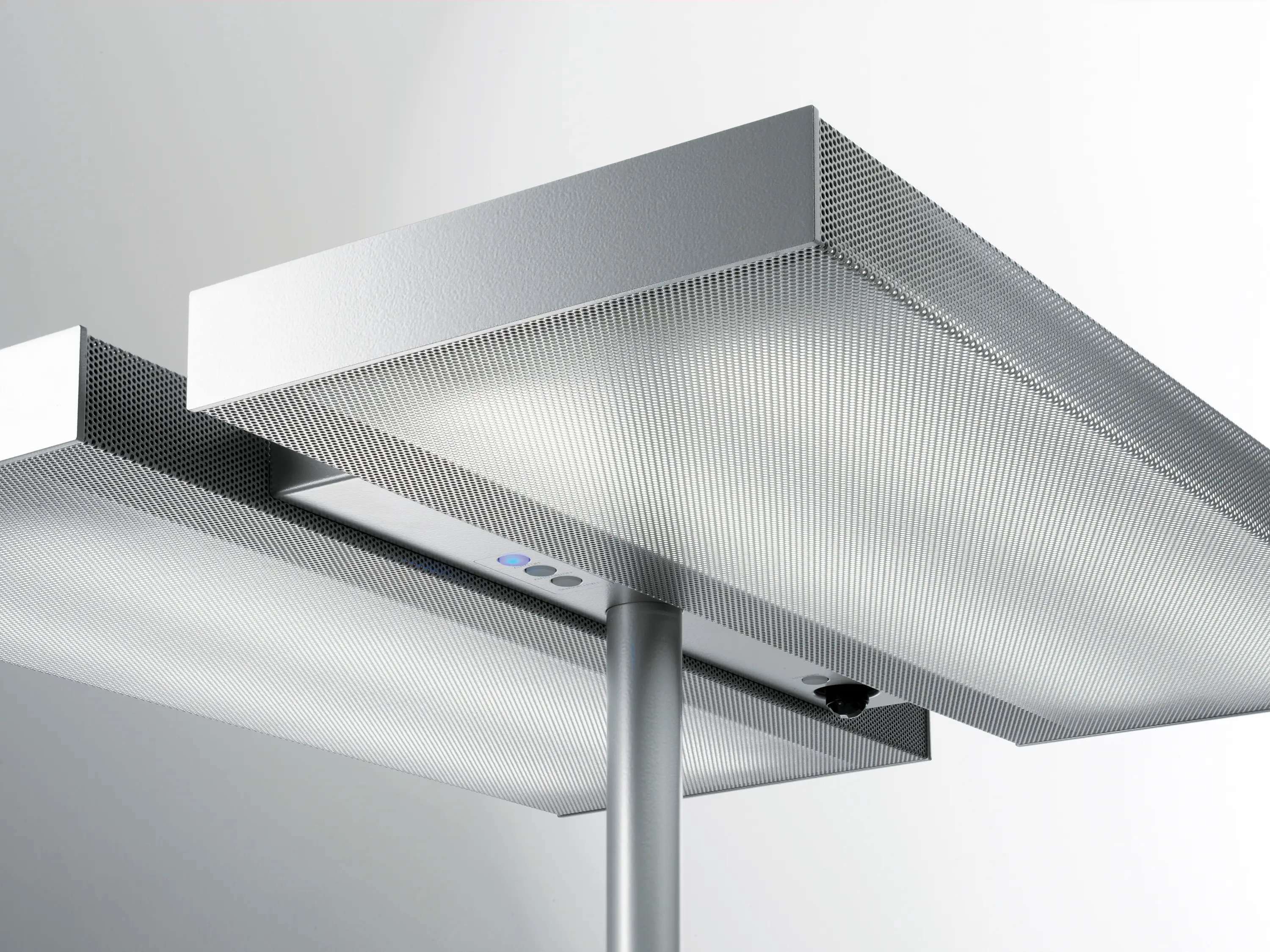

TAVA double-wing: 1 Electronic ballast each, dimmable 1-10 V, for inner and outer lamp pair. Central casing with 3 LED push buttons for switching mode and intensity, with built-in presence sensor and daylight-based lighting control.

TAVA single-wing: Electronic ballast, dimmable 1-10 V. Central casing with 3 LED push buttons for switching mode and intensity, with built-in presence sensor and daylight-based lighting control.

Standard

TAVA double-wing: 1 Electronic ballast each, for inner and outer lamp pair. Central casing with 1 front-mounted rocker switch each, for individual switching of the lamp pairs.

TAVA single-wing: Electronic ballast. Central casing with front-mounted rocker switch.

TAVA Pendant luminaire indirect/direct lighting

Support frame in extruded and plain anodised aluminium. Luminaire and central casing consisting of sheet steel and perforated panel, silver coated. Halogen-free internal wiring.

2 suspension cables, with mat-finished, nickel-plated ceiling barrels, steel cable Ø 1.0 mm, length 2500 mm, vertically adjustable. Square ceiling canopy power supply unit, made in sheet steel, silver, 95x95x22 mm. Terminal 5x1.5 mm2. Supply cable 3x0.75 mm2, or 2x0.75 mm2 + 3x0.75 mm2 transparent, length 2500 mm.

Sensonic L

1 Electronic ballast each, dimmable 1-10 V, for inner and outer lamp pair. Central casing with 3 LED push buttons for switching mode and intensity, with built-in presence sensor and daylight-based lighting control.

Standard

1 Electronic ballast each, standard or dimmable 1-10 V, for inner and outer lamp pair.

TAVA Wall-mounted luminaire

indirect/direct lighting

Support frame in extruded and plain anodised aluminium. Luminaire casing consisting of sheet steel and perforated panel, silver coated. Halogen-free internal wiring.

Wall installation casing in sheet steel, silver. Supplied with additional wall panel to cover large wall openings. Terminal 5x1.5 mm2.

Sensonic L

Electronic ballast, dimmable 1-10 V. Wall installation casing with 3 LED push buttons for switching mode and intensity, with built-in presence sensor and daylight-based lighting control.

Standard

Electronic ballast, standard or dimmable 1-10 V. Wall installation casing with or without front-mounted rocker switch.
