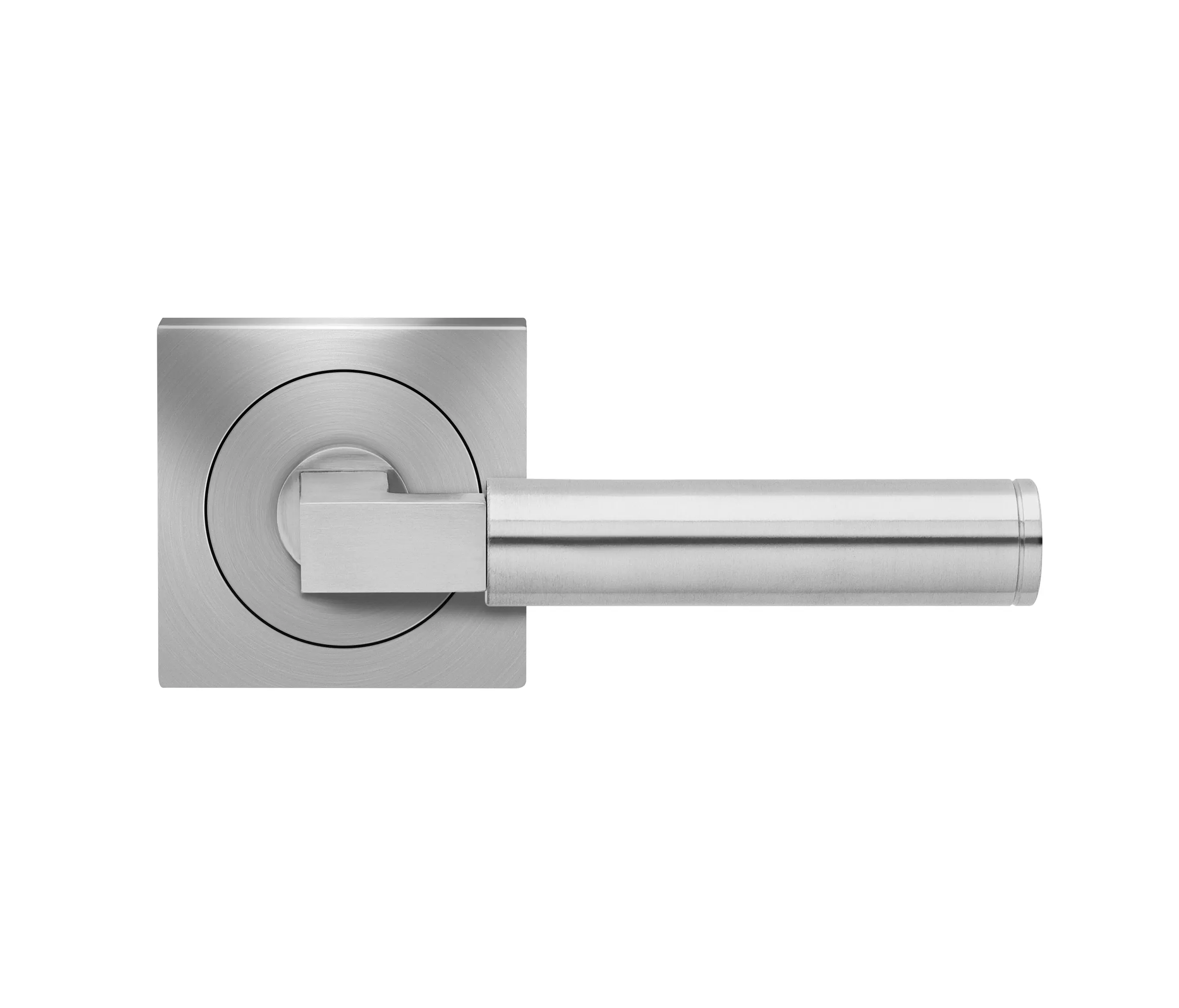

Tasmania UER31Q (71)

Lever sets for standard duty for residential interior use and light duty for commercial interior use.

Tasmania – UER31Q 2 5/8 x 2 5/8 x 7/16“

Standard Features:

• 3 piece rose

• concealed bolt-through fixing

• sprung

• door range 1 1/4“ (31 mm)- 2“ (50 mm) standard

• T- and Lip-Strike with dust box

• stainless steel faceplate

• backsets: 2 3/8“ (60 mm) or 2 3/4“ (70 mm)

• functions: Passage (PAS), Privacy (PRI), full dummy (DUM), dummy left (DUML), dummy right (DUMR)

• available with UL-Latch

• 28° latch with attached face plate

• rate of satin stainless steel 304

• hub 5/16“ (8 mm)

• door prep 2 1/8“

• available finishes: satin stainless steel, polished stainless steel

Options:

PAS- passage latch, backset 2 3/8” (60mm) and T-strike plate

PRI – privacy latch backset 2 3/8” (60mm) and T-strike

DUM – Full Dummy

DUML – Half Dummy Left

DUMR- Half Dummy Right

Special options (to be ordered separately)

UZ2570 PAS – Passage Latch with backet 2 3/4” (70mm)

UZ3070 PRI – Privacy Latch with backet 2 3/4” (70mm)

UZ2500 LS – Full Lip strike

UZUL P67 – UL-Latch

Finish: satin stainless steel (finish code 71)

Karcher article no.:

UER31Q PAS 60 71 – with passage latch, backset 2 3/8” (60mm) and T-strike plate

UER31Q PAS 70 71 – with passage latch, backset 2 3/4” (70mm) and T-strike plate

UER31Q PRI 60 71 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate

UER31Q PRI 70 71 – with privacy latch, backset 2 3/4” (70mm) and T-strike plate

UER31Q DUM 71 – full dummy

UER31Q DUML 71 – half dummy left

UER31Q DUMR 71 – half dummy right

Finish: polished stainless steel (finish code 72)

UER31Q PAS 60 72 – with passage latch, backset 2 3/8” (60mm) and T-strike plate

UER31Q PAS 70 72 – with passage latch, backset 2 3/4” (70mm) and T-strike plate

UER31Q PRI 60 72 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate

UER31Q PRI 70 72 – with privacy latch, backset 2 3/4” (70mm) and T-strike plate

UER31Q DUM 72 – full dummy

UER31Q DUML 72 – half dummy left

UER31Q DUMR 72 – half dummy right
