Triangle

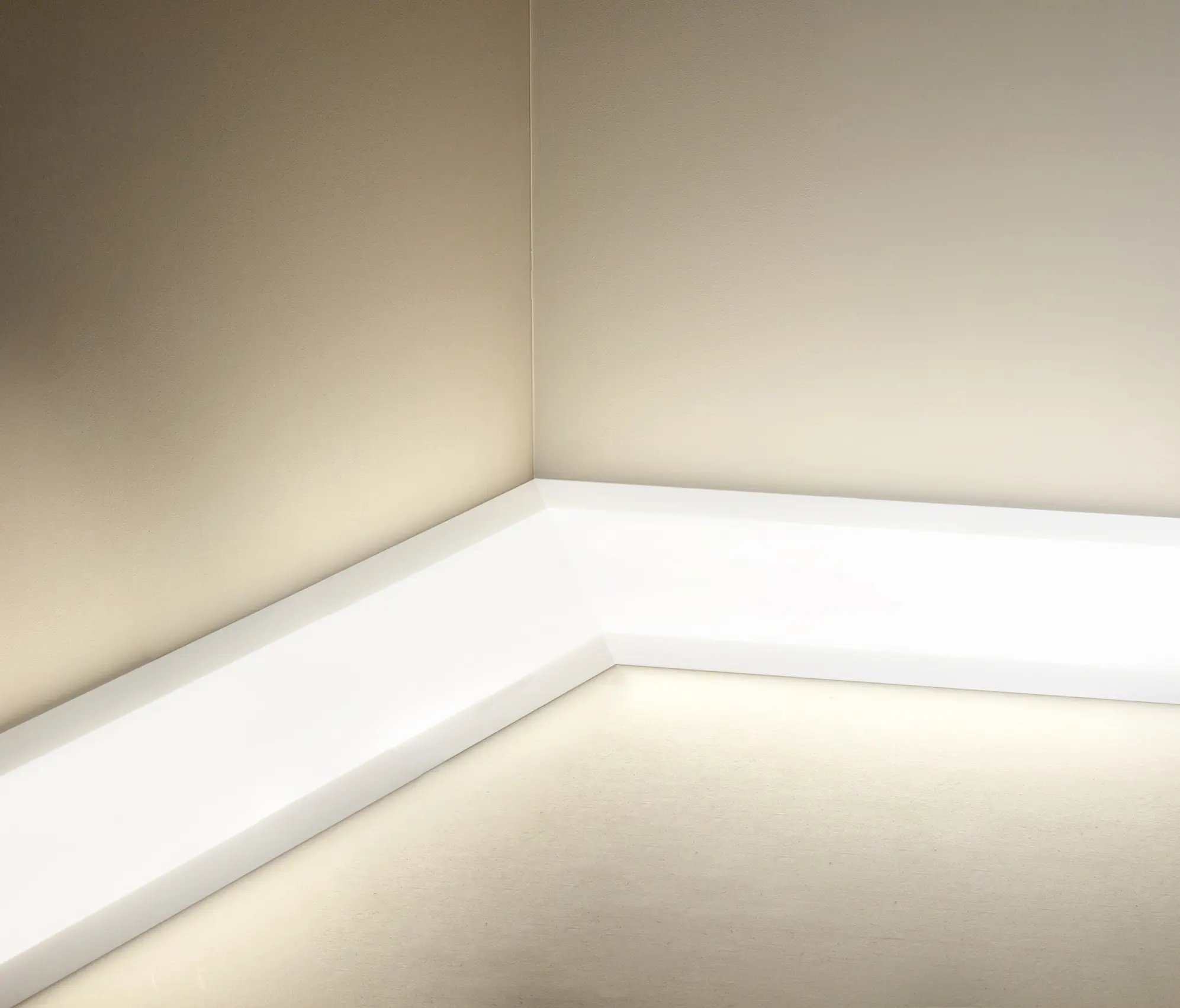

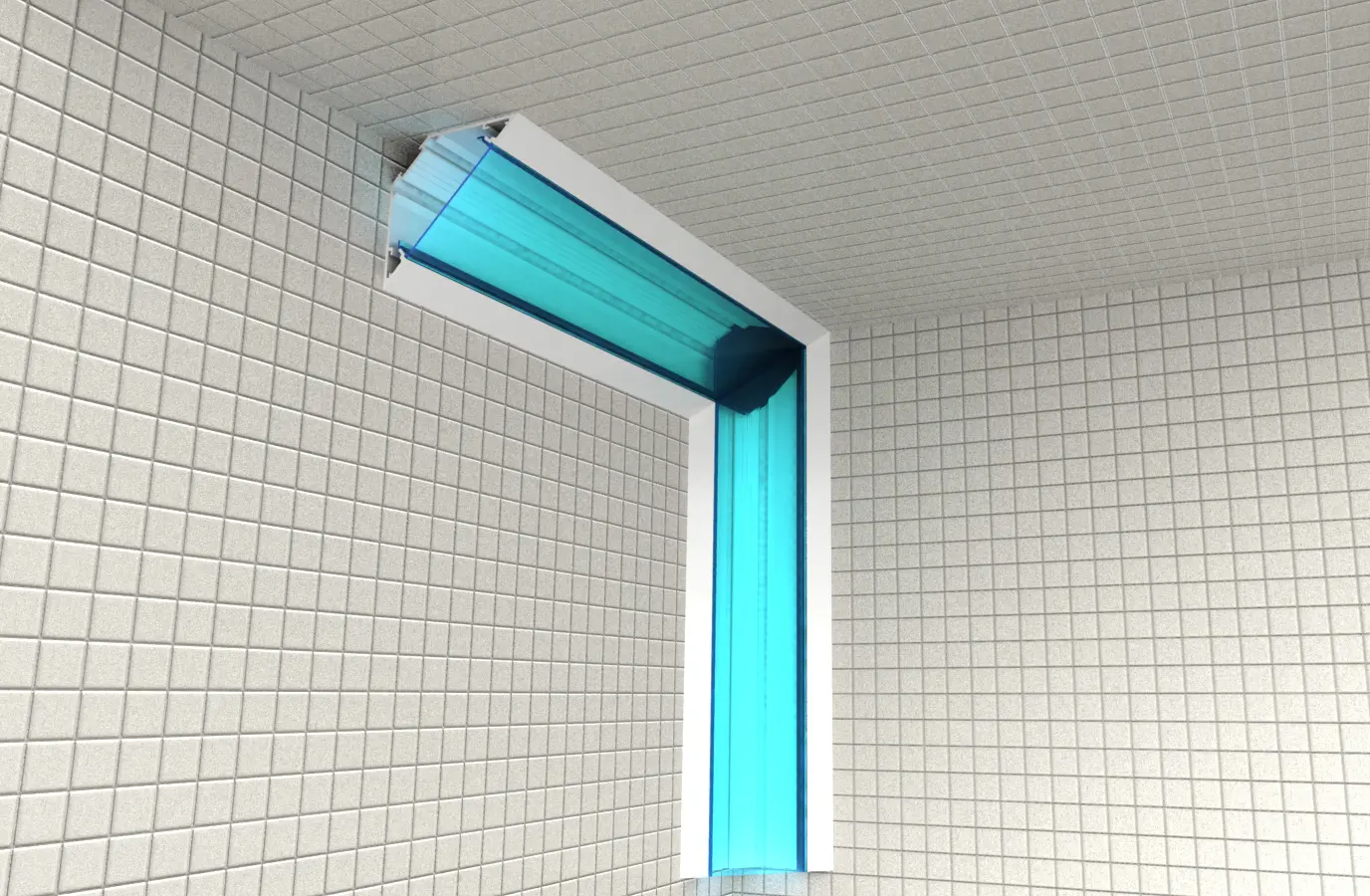

The Triangle is a profile system that can be tailor made on the specifications of the client. The Triangle sas a triangular form (sounds logic) and is ideal to be used in corners, cornices, etc...

The Triangle is an ideal profile system for long corridors; when installing the Triangle profile, the complete space remains available. Hospitals may use the Triangle to be used in the corners in order to avoid direct light in the eyes of the patients when they are transported on their beds.

The Triangle profile can be equipped with both standard T5 tubes & seamless tubes and it offers the choice between a prismatic diffuser and a frosted one.

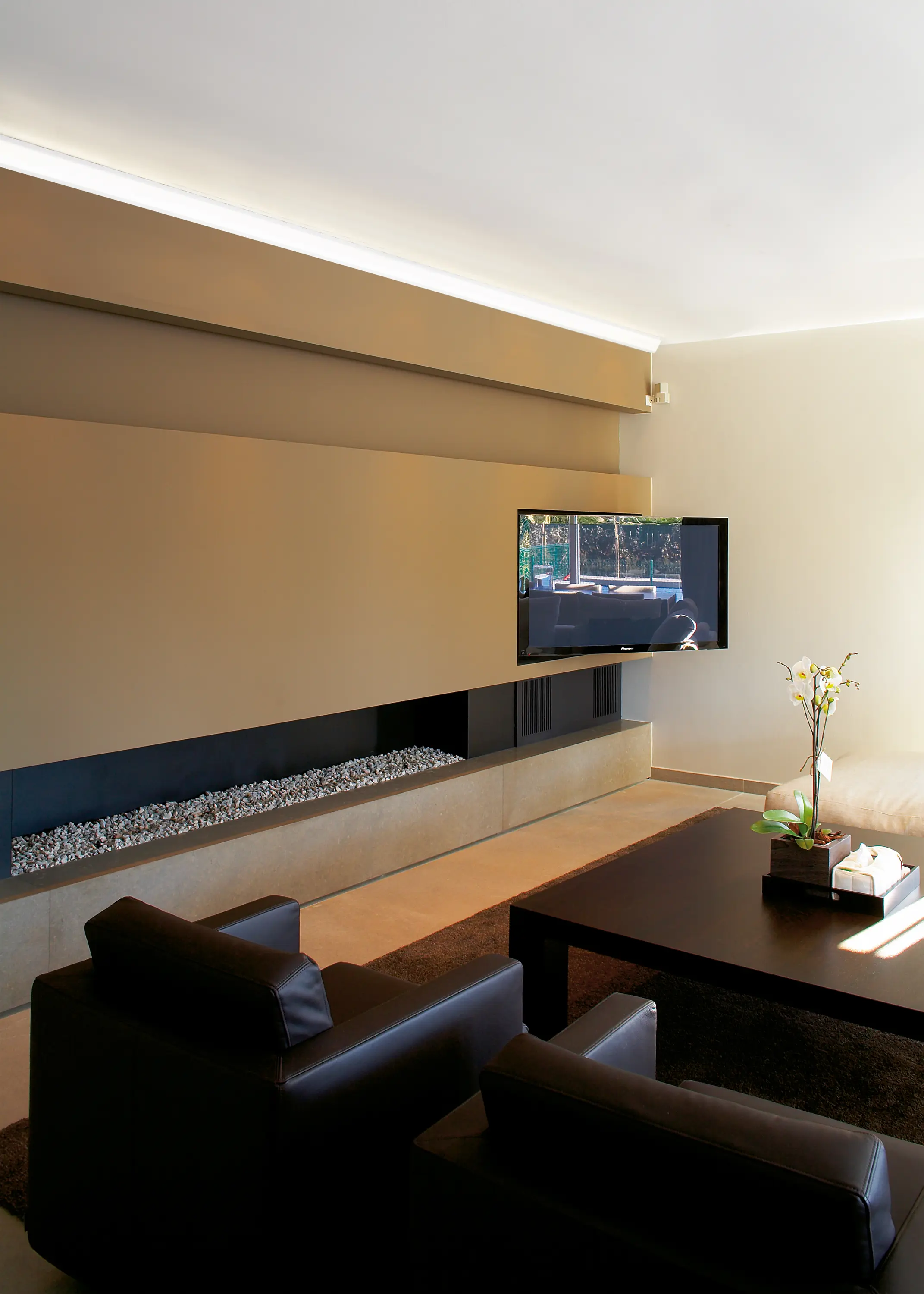

The triangle comes in different colors, but is also available with a primer coating, so you can paint the Triangle in the same color as the wall and/or ceiling, In this way, the profile system disappears into the architecture of the building.

Materials and finish

Profile: extruded aluminium (AlMgSi0,5) – powder coated in textured white or Primer Coating

Diffuser: Extruded frosted PC or Prismatic transparent PC

Endcaps: aluminium- powder coated in textured white or textured black

Installation and lamp replacement

The profile is mounted directly to the ceiling or the wall or the corner between wall & ceiling and can be screwed on any surface.

The profile can be suspended via an extra suspension kit which can be screwed easily to the ceiling. The height can be adjusted very simple and at every height.

With the primer coat the Triangle can be painted in the same color as the wall and ceiling.

The diffussor can easily be removed with a suction cap, in this way you have access to the bulbs.

Technical dat:

Cut-out: N/A

Installation depth: N/A

Luminaire dimensions: section 160X60 mm

Weight: 2,5 kg/m

Adjustability: Diffused light

Electrical data:

Lamp type: T5 or T5S

Lamps: Dependant length of profile

Lampholders: G5

Control gear: Integrated

Input supply voltage: 230V-50Hz

Connector block: 2,5mm²

Glow wire resistance: 960 °C

IP rating: IP20
