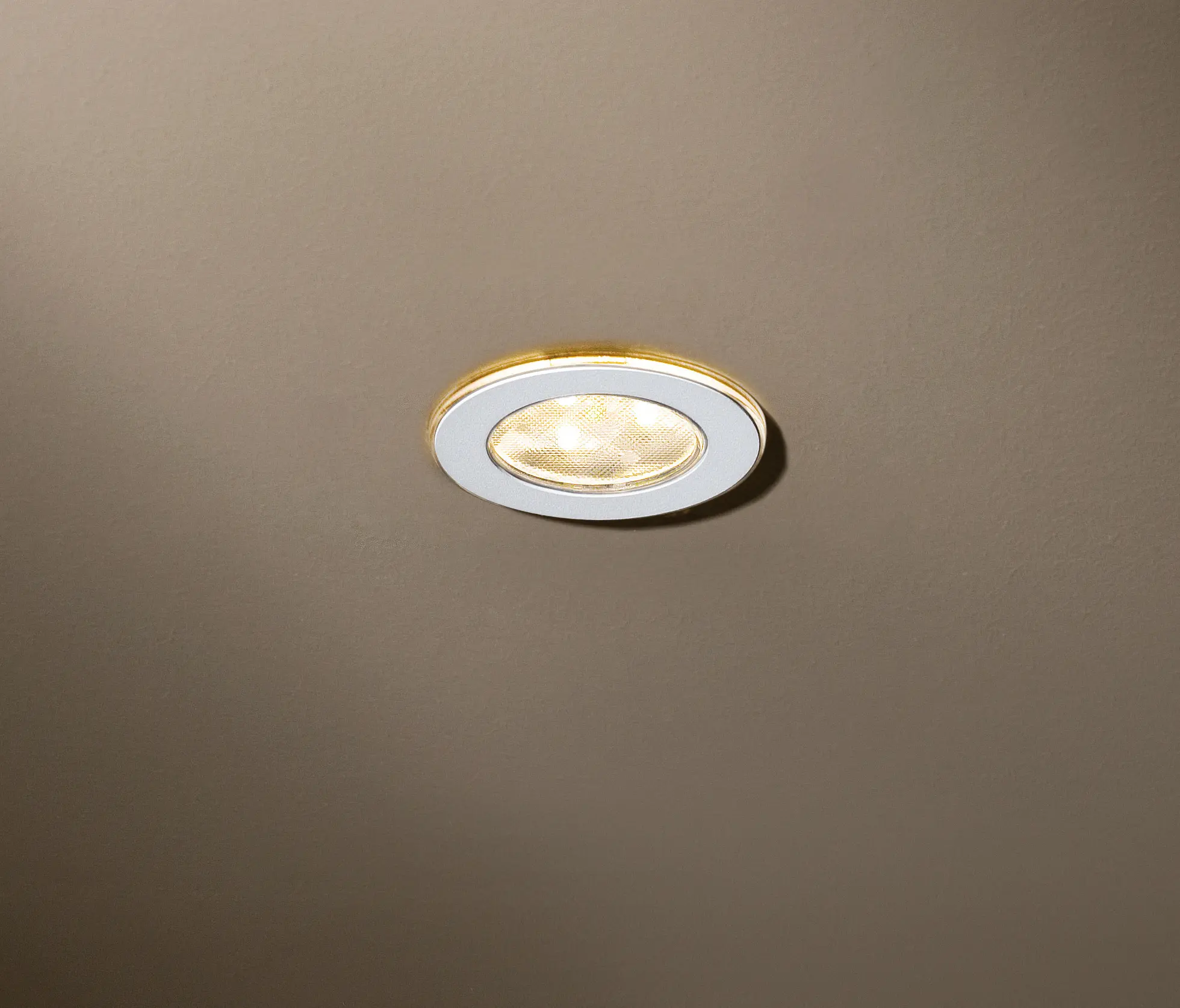

Saturn Round

Recessed, round downlighter for general lighting or accent lighting applications.

Suitable for round cut-out of 83 mm diameter.

The lamp is a little hidden for anti-glare reasons, while the inner shape is conical thus providing a nice beam.

The lamp can be slightly oriented over 30° in one direction.

Materials and finish:

Fixture is made in aluminium alloy with textured white powdercoat finish.

Installation and lamp replacement:

The unit is installed by means of two leaf springs for hollow or solid materials.

Lamp replacement: the lamp is held in place by the lampring which can be unscrewed to change the lamp

Indoor use only. Suitable for ceiling mounting.

Technical data:

Cut-out: Round hole diameter 83mm

Installation height: 120 mm (incl. Terminal block holder)

Luminaire dimensions: 90 mm diameter

Weight: 0,3 kg

Adjustability: +/-30° in one direction

Electrical data:

Lamp type: QR-C51 (20-35-50W)

Lamps: 1

Lampholders: GU 5,3

Control gear: not included

Input supply voltage: 12V-50Hz

Connector block: 2x2,5mm² with strain relief

Glow wire resistance: 960°C

IP rating: IP20
