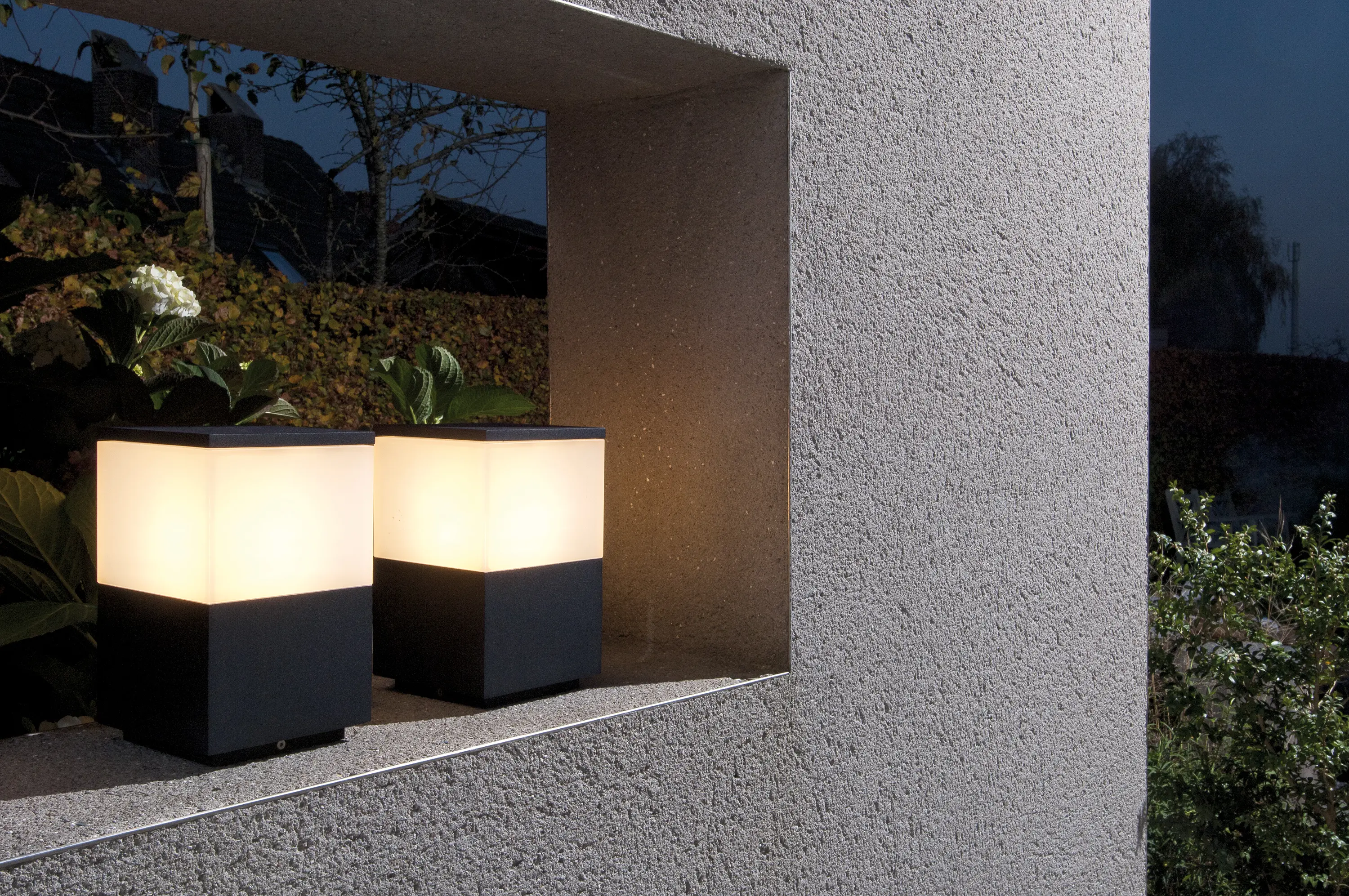

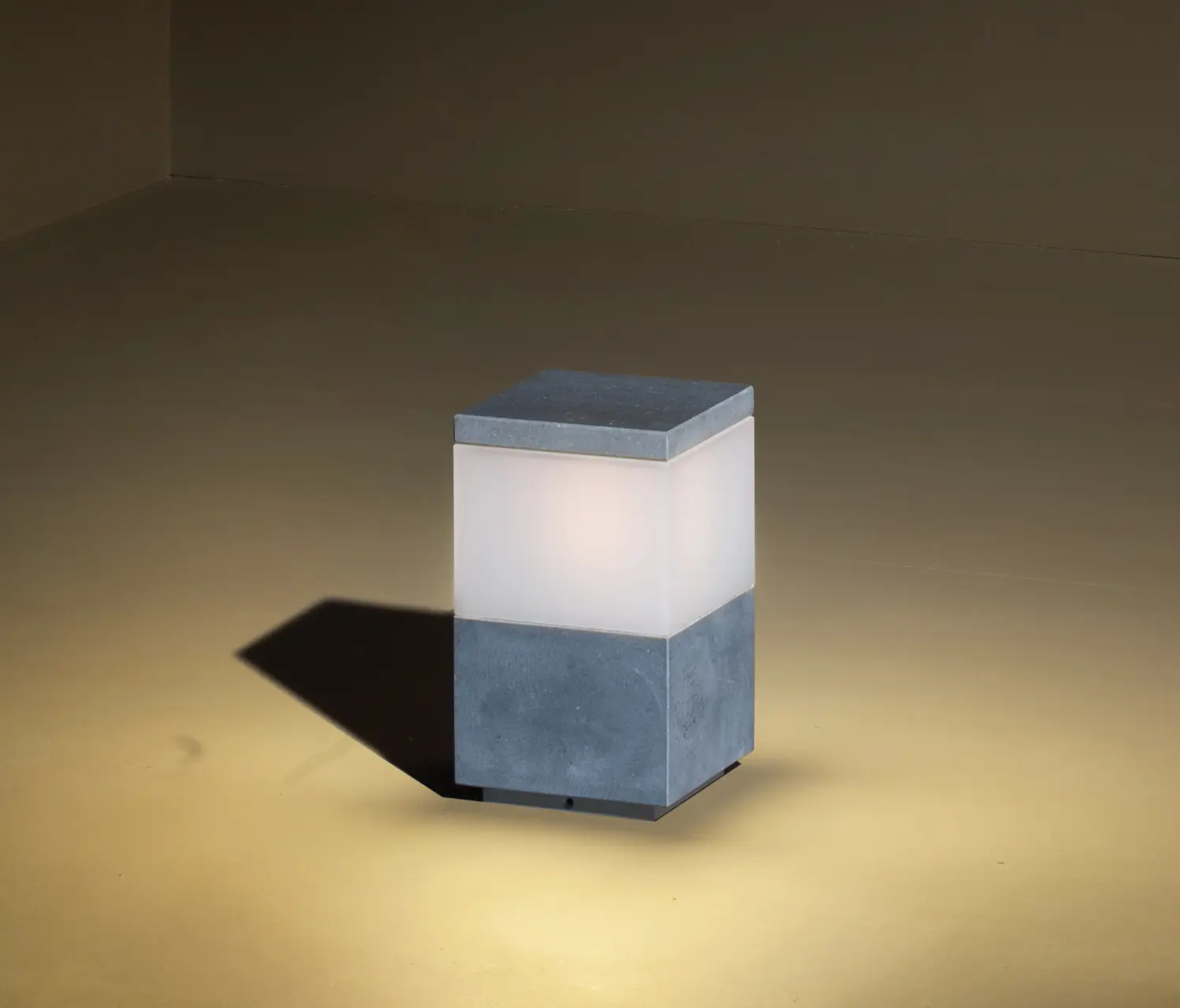

Menhir Blackout

Fixed, vertical standing exterior lighting device.

Beam shaped fixture made in aluminium with textured black finish.

The diffuser is made of PMMA, with an aluminium cover in textured black finish.

Can be used for general lighting application.

Materials and finish:

The fixture is made of aluminium AlMgSi0,5

Corrosion protection: pretreatment with Bonderite NT1

The diffuser in made of opal PMMA.

Base is made of galvanized steel which is stained, chromate and powder coated.

In compliance with salt spray test: 1000h according DIN 50021

Installation and lamp replacement:

First the luminaire housing is removed from the inner bracket/base. The base is then fixed to the mounting surface by means of rawl plugs and screws. After electrical connection and lamp installation, the housing is slid over the inner bracket and secured by screws.

Lamp replacement: Loosen the screws (counter-clockwise) and take off the housing. Change the lamp and slide the housing over the bracket again. Fix the housing by tightening the screws clockwise.

Technical data:

Luminaire dimensions : 267x150x150

Weight : 9,7 kg

Accessories : 260992: ground pin + square foot

Electrical data:

Lamp type : A-60

Lamps : 1

Lampholders : E27

Control gear : Mains operation (no gear required)

Input supply voltage : 230V-50Hz

Connector block : By means of topflux IP67 heatshrink connectors

IP rating : IP54
