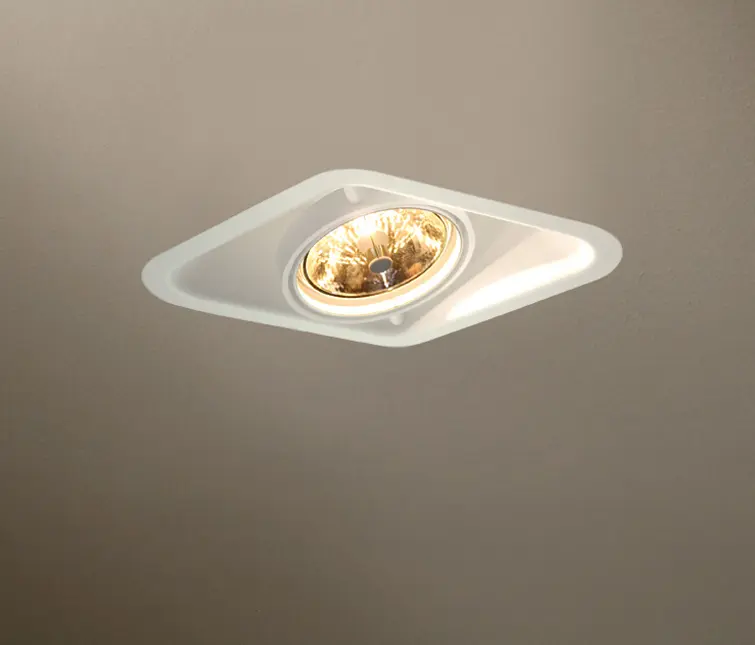

Cayley QR111

Recessed lighting fixture with 1 adjustable light source.The fixture has a diamond shape.

The elegant fluency of the housing is thanks to the seamless one-piece structure.

Thanks to gimble lamp rings, the light sources are fully adjustable.

Installation and lamp replacement:

Installation and lamp replacement:

Easy cut-out by means of connecting four 57 mm. diameter hole saw made openings.

The unit is installed by means of four torsion springs for hollow materials.

Technical data:

Cut-out: 238x140mm spacing between centres of 57 mm. holes

Installation height: 120 mm

Luminaire dimensions L x W x H: 325x220x110 mm

Weight: 1,3 kg

Adjustability: 30° horizontal – 30° vertical

Accessories: plasterkit art. 312910 (cut-out 325 x 240 mm)

Electrical data:

Lamp type: QR111

Lamps: 1

Lampholders: G53

Control gear: not included

Input supply voltage: 12V – 50Hz

Connector block: 3x2,5mm²

Glow wire resistance: 960°C

IP rating: IP20
