Boriti

Tailor made profile system exists in an aluminium base profile combined with a snap in polycarbonate diffussor. The diffussors are available in frosted polycarbonate and in prismatic transparent polycarbonate. The frosted diffussor is ideal for general lighting and to create lightlines while the prismatic version increases the light output and improves the UGR value, so for less disturbing light.

The Boriti profile is especially developed to be used in combination with standard T5 tubes and the seamless versions.

An aluminium cover is also available to be used in empty profile spaces or in combination with other lighting sources.

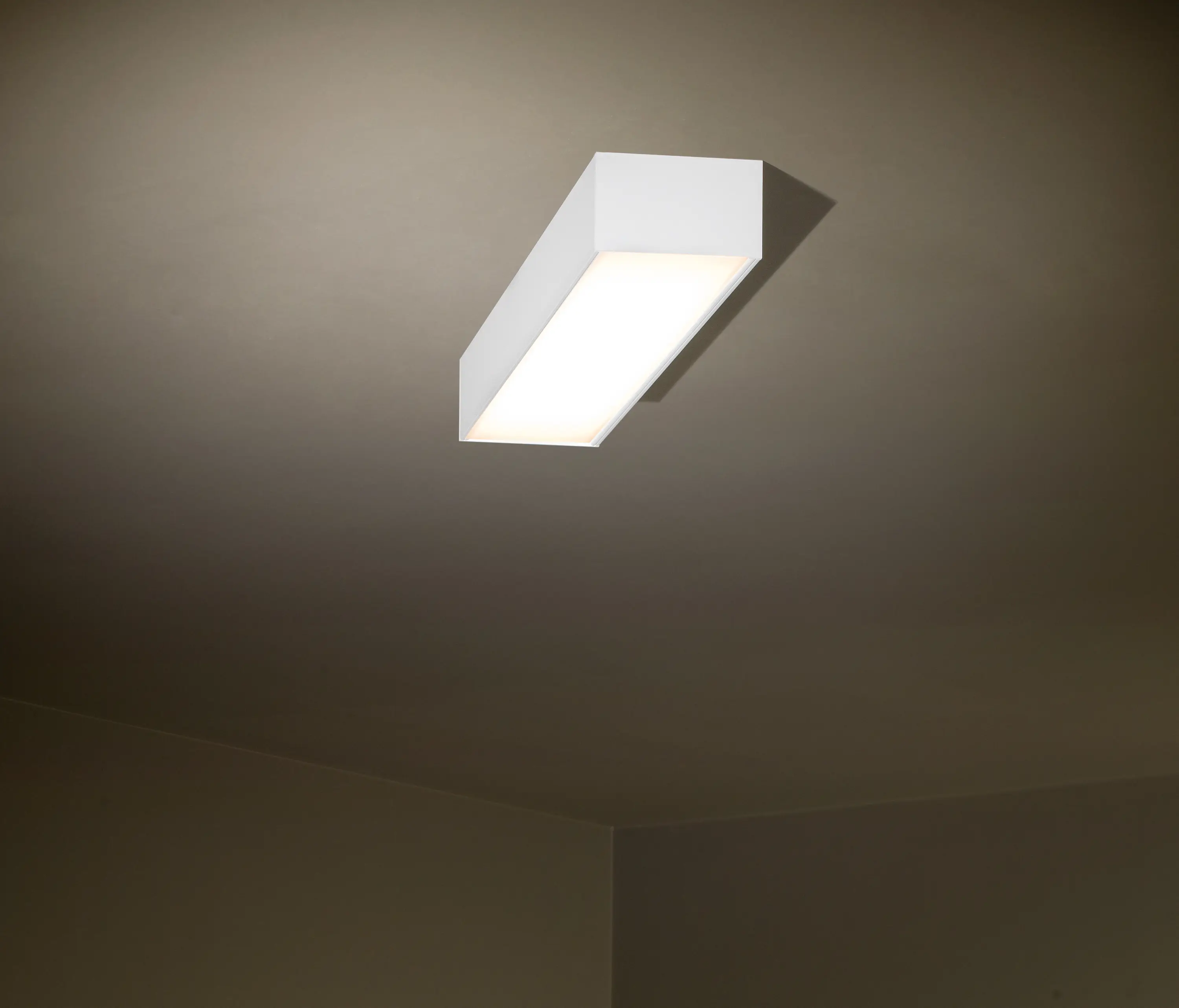

This system can be installed directly on the wall or ceiling and suspended is also possible.

It is possible to combine different profiles by cornerbrackets etc.

Materials and finish:

Profile: extruded aluminium (AlMgSi0,5) – powder coated in textured white, textured black or natural anodized

Diffuser: Extruded Polycarbonate, frosted or prismatic

Endcaps: aluminium- powder coated in textured white, textured black or natural anodized

Installation and lamp replacement:

The profile is mounted directly to the ceiling or the wall and can be screwed on any surface.

The profile can be suspended via an extra suspension kit which can be screwed easily to the ceiling. The height can be adjusted very simple and at every height.

The diffussors can easily be removed with a suction cap, in this way you have access to the bulbs.

Technical data:

Cut-out: N/A

Installation depth: N/A

Luminaire dimensions: section 112X65 mm

Weight: 2,2 kg/m

Adjustability: Diffused light

Electrical data:

Lamp type: T5 & T5S

Lamps: Dependant length of profile

Lampholders: G5

Control gear: Integrated

Input supply voltage: 230V-50Hz

Connector block: 2,5mm²

Glow wire resistance: 960 °C

IP rating: IP20
