Synua | Safety door with pivot hinges with aluminium covering

The safety door for large dimensions, with vertical pivot operation and installation coplanar with the wall.

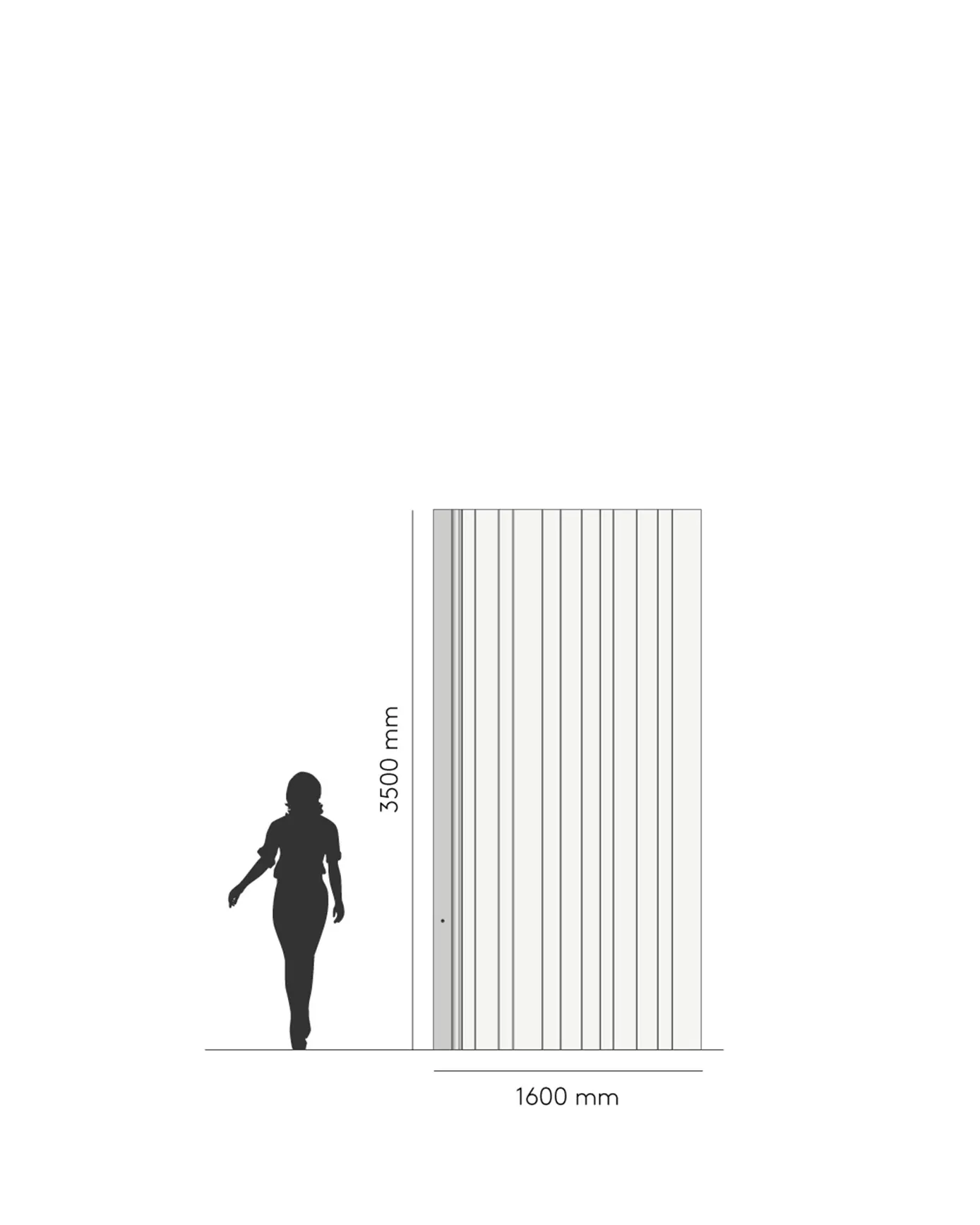

Synua is the safety door that knows no limits: ideal for large sizes, it is the perfect combination of technology and design. Equipped with pivoting opening, and coplanar with the wall, it is covered by sectors or by a single panel or by a solution upon customer drawing, and can reach up to 3000 mm of width and 6200 mm of height in its standard versions. Upon request it can feature even larger dimensions.

Safety door with pivot hinges with:

• Covering with sectors, single panel or upon customer design

• Version with heat barrier frame and leaf (optional)

• Motorized electronic lock with integrated access control system on request

• Automatic opening with floor motor for doors weighing up to 560 kg on request

Performance:

– Break-in resistance: standard Class 3 / Upon request: -

– Acoustic: standard 38 dB / Upon request: -

– Air: standard 2 / Upon request: Mose Kit 4

– Water: standard 0 / Upon request: Kit Mose 5A- Dam Kit 5A

– Wind: standard C4 / Upon request: Mose Kit C5- Dam kit C4

– Air: standard- / Upon request: Dam kit 5A

– Thermal: standard 1 / Upon request: 1.3

– Fire: standard- / Upon request: EI60- VKF60- EI60- UL120

– Hurricane-proof: standard- / Upon request: Hurricane-proof Noa
