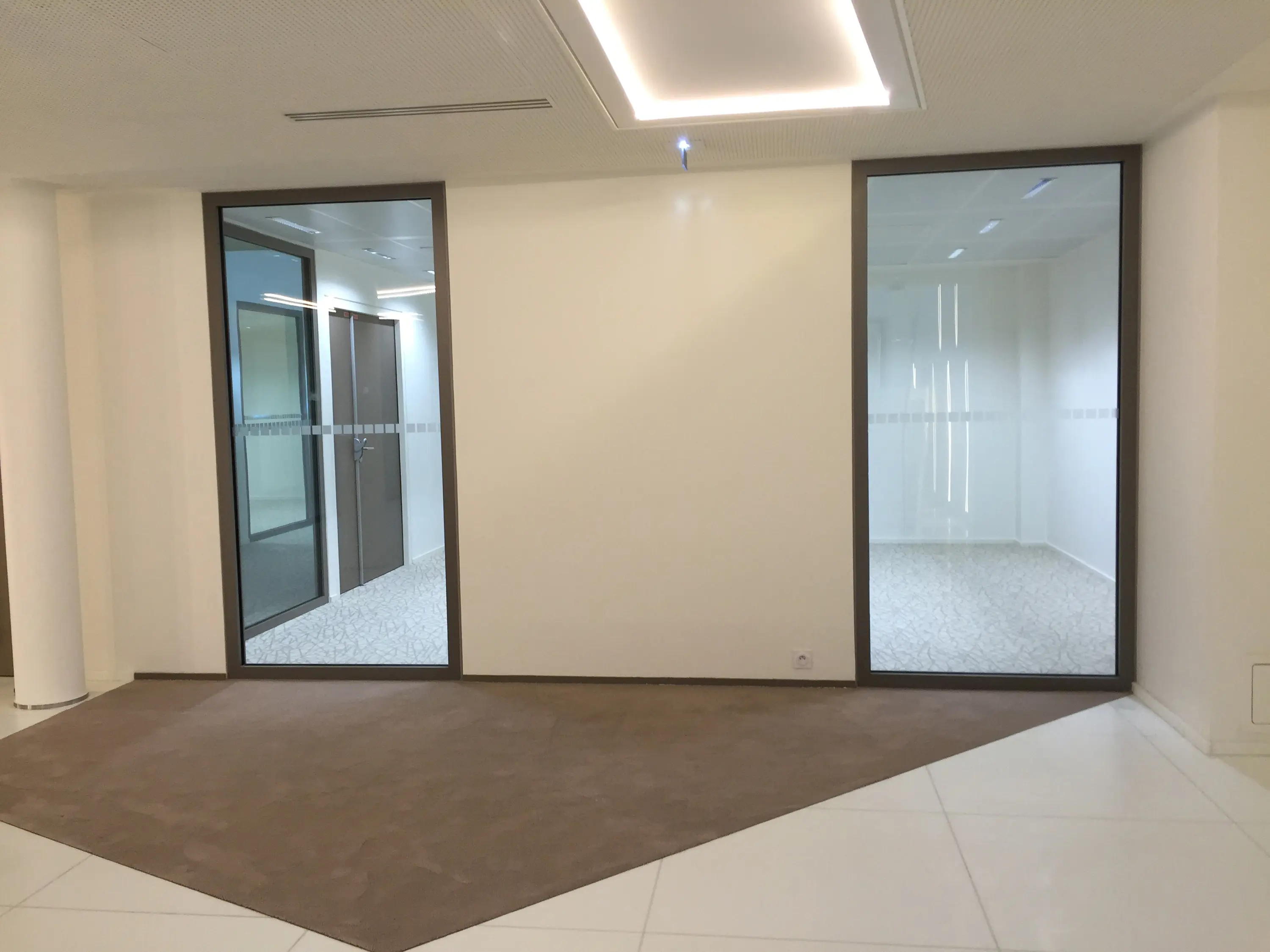

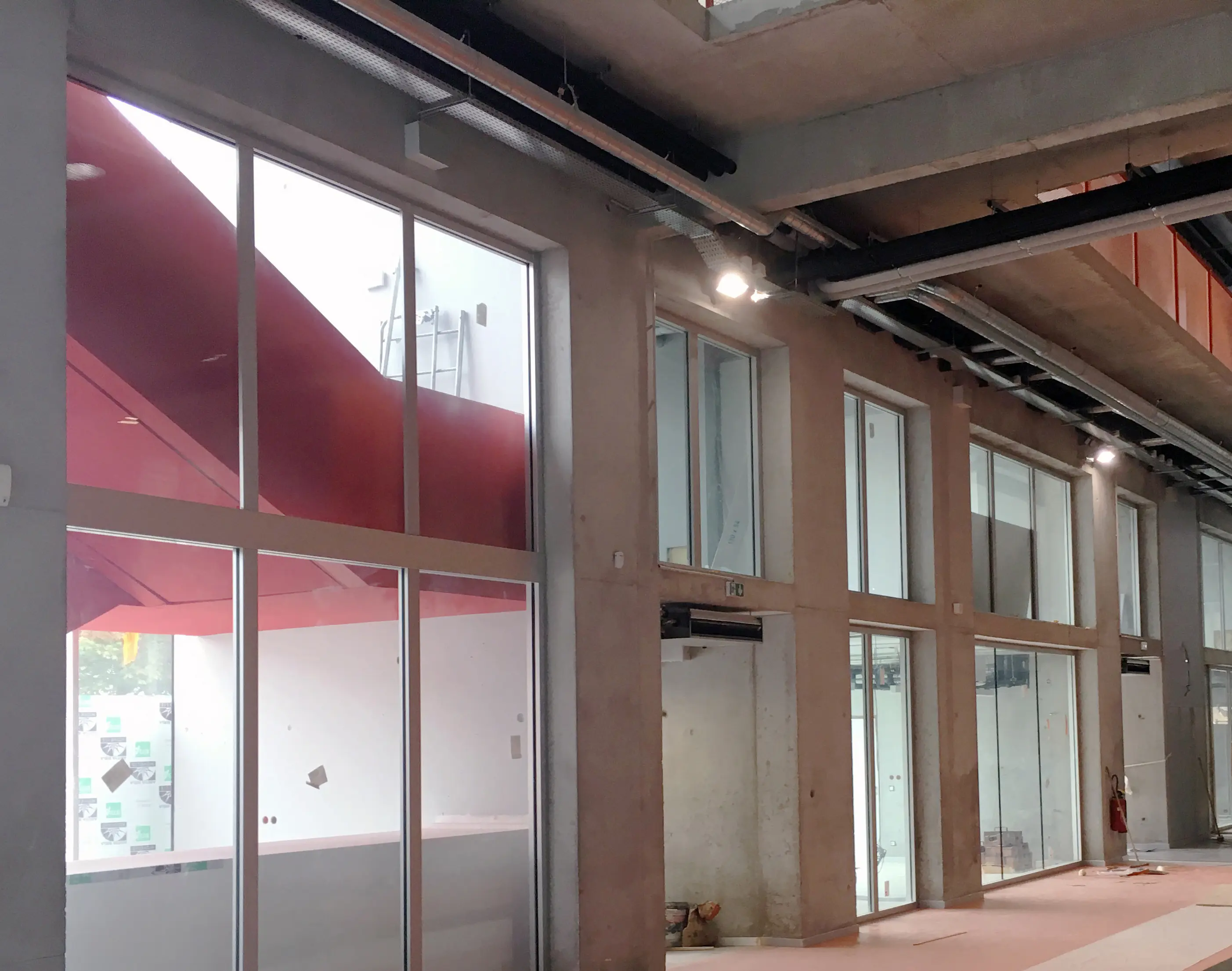

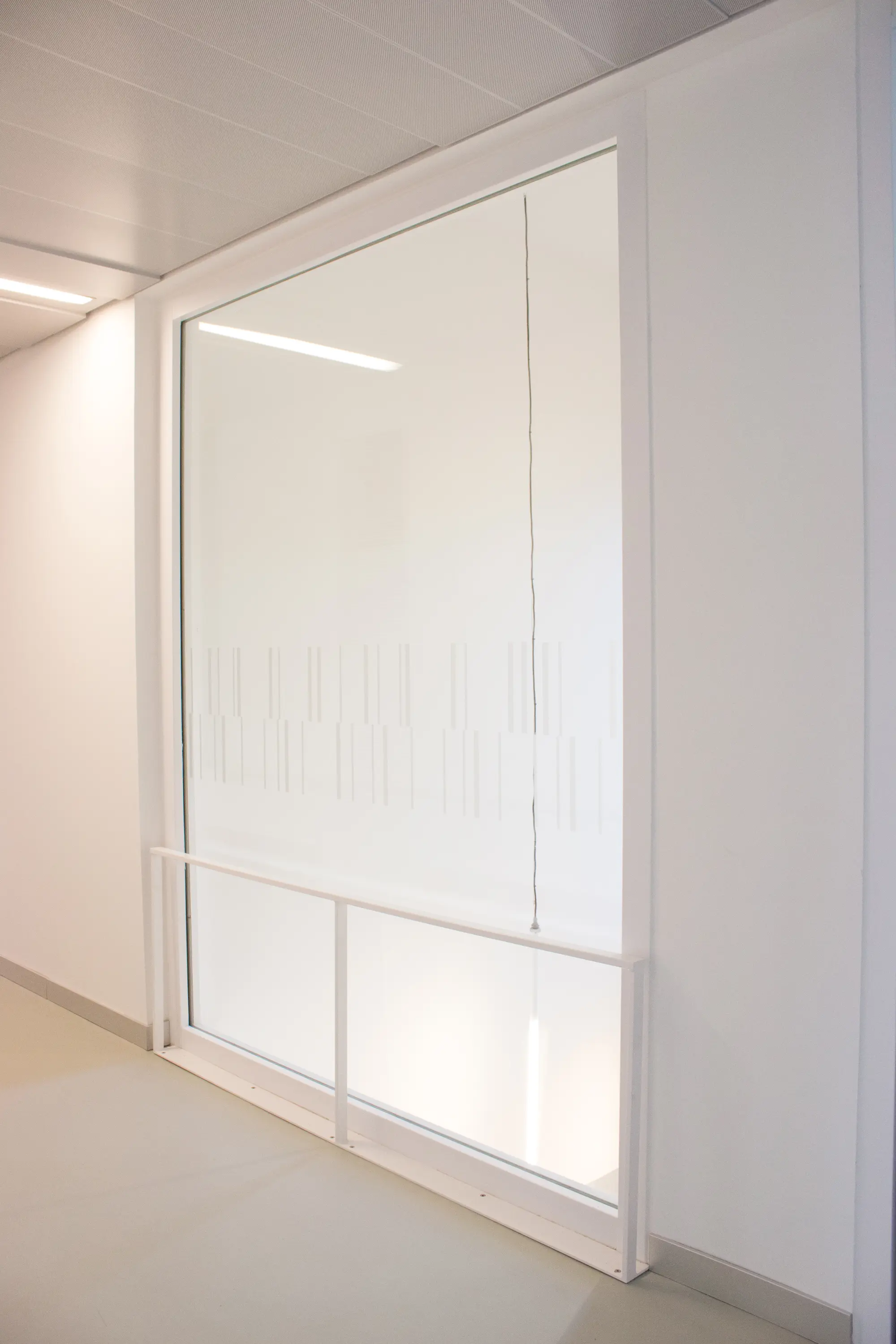

ACIERFLAM Fixed chassis partitions

The static ACIERFLAM frame has generous glazed surface areas with elegant, refined and discrete metal fire retardant profiles to protect your premises from the spread of flames.

Available in several models, E 30, EI 30, EI 60, EI 90, EI 120, this type of joinery has a wide variety of attractive designs that can contribute added value to all your architectural designs.

The Acierflam frame is composed of a thermally insulated steel tube underlining its unrivalled strength.

The assembly of the profiles together is by welding and grinding.

Considering that this joinery has no glazing beading, the glazing is held in place by clamping between the insulating plates.

• GLAZING TYPE safety; single; insulating glazing

• FINISH anodised; powder-coated; brushed; polished

• HEIGHT up to 3970 mm- E 30, EI 30, EI 60

• WIDTH no maximum limit

• MATERIALS steel- profiles; aluminium or stainless steel- casing; glass
