VIATEC-LED STG

VIATEC LED

A design that fits into any surroundings.

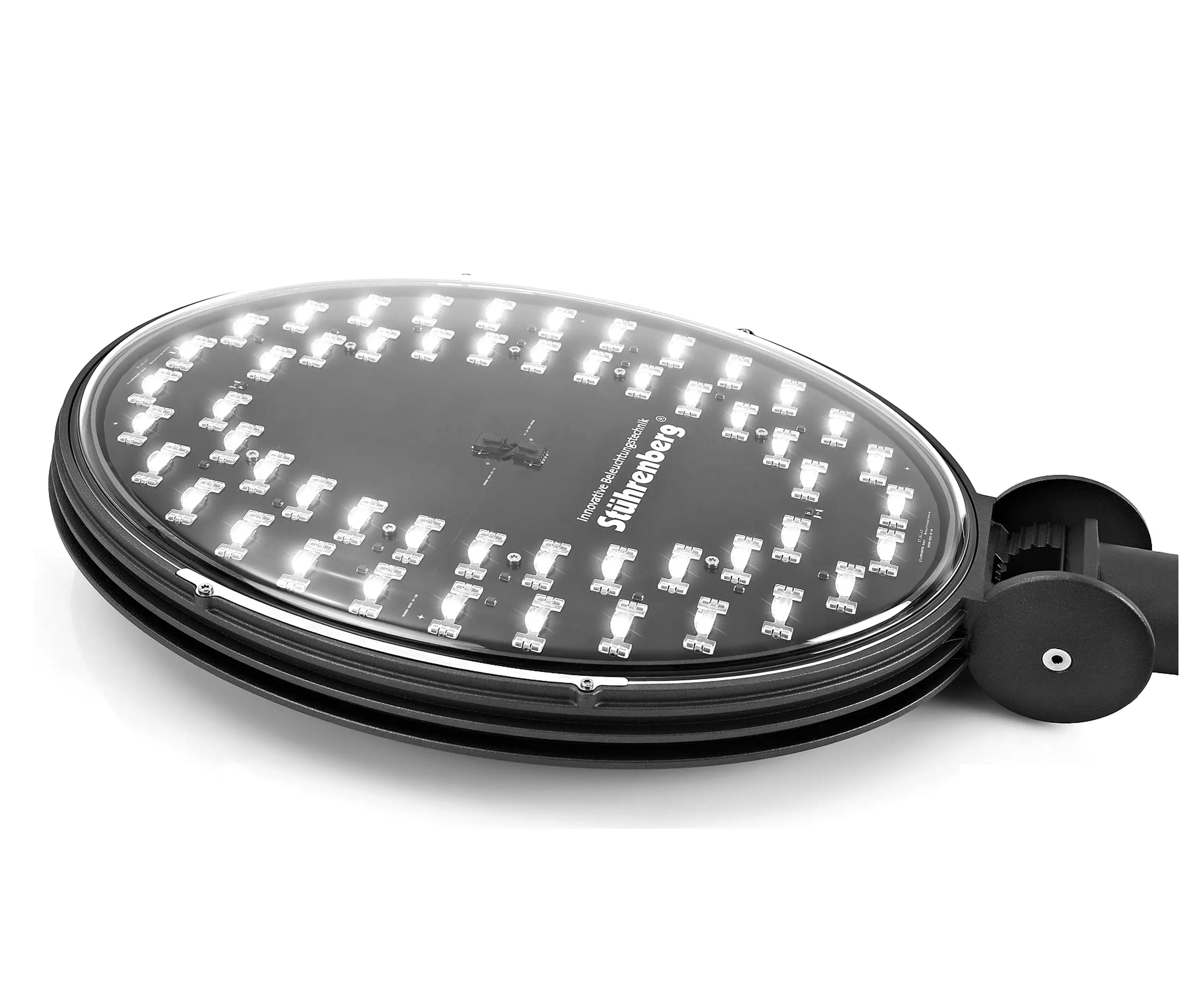

VIATEC-LED by Stührenberg, which is developed and manufactured exclusively in Germany, stands for quality in a timeless design. High-end components and an efficient passive cooling-system guarantee a long service life. This cooling system works by connecting the LEDs directly to the cast aluminium housing by the means of a thermal conductive foil, combined with a temperature management system.

VIATEC LED was developed for the use of street lighting, industrial lighting and outdoor lighting. It has an efficiency of up to 80 lm/W (cold white 5000K ± 100K) and a luminous flux of up to 6500lm. The colour temperatures neutral white (4000K ± 100K, 70lm/W) and warm white (3000K ± 60lm/W) are also available on request.

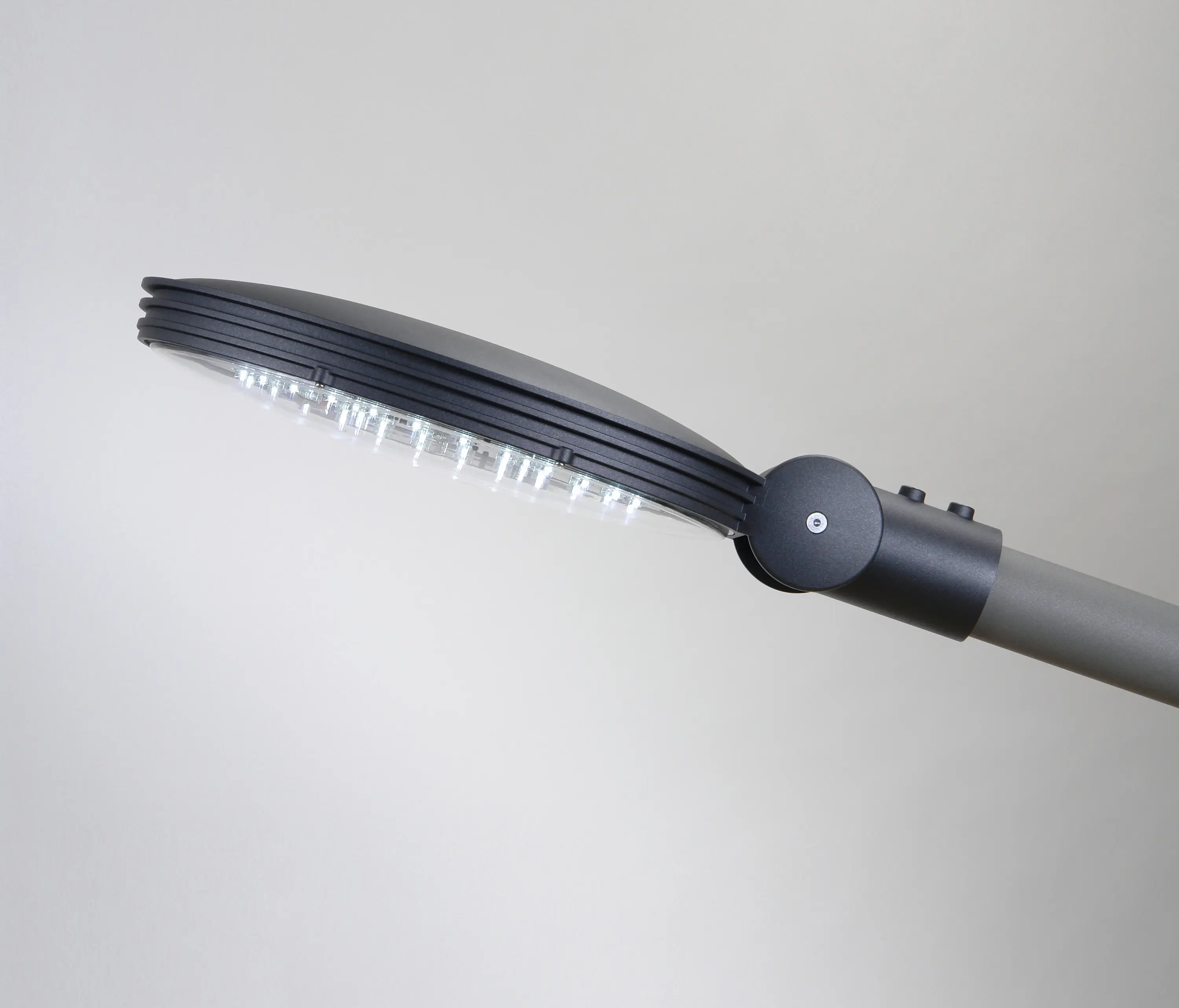

The joint on top of the lamp enables the illumination angle to be adjusted in 7.5° steps to up to 90°. This allows an ideal adjustment.

Housing:

cast aluminium, powder coated

Colour:

anthracite DB 703, other colours on request

Colour

reproduction Ra: > 75

Efficient light flux:

up to 80 lm/W (cold white, 5000K ±100K)

up to 70 lm/W (neutral white, 4000K ±100K)

up to 60 lm/W (warm white, 3000K ±100K)

Operating temperature:

-30°C- +50°C

Operating voltage:

230V AC, 50Hz +10% / -15%

Performance factor:

typ. 0,95 at nominal output

Night dimming:

via control input (phase)

Assembly:

top-mounted/side-mounted

insertion length 120 mm

angle adjustable from 0-90° in 7,5° steps

Equipment:

pole adapter Ø 42 mm and Ø 60 mm optionally available
