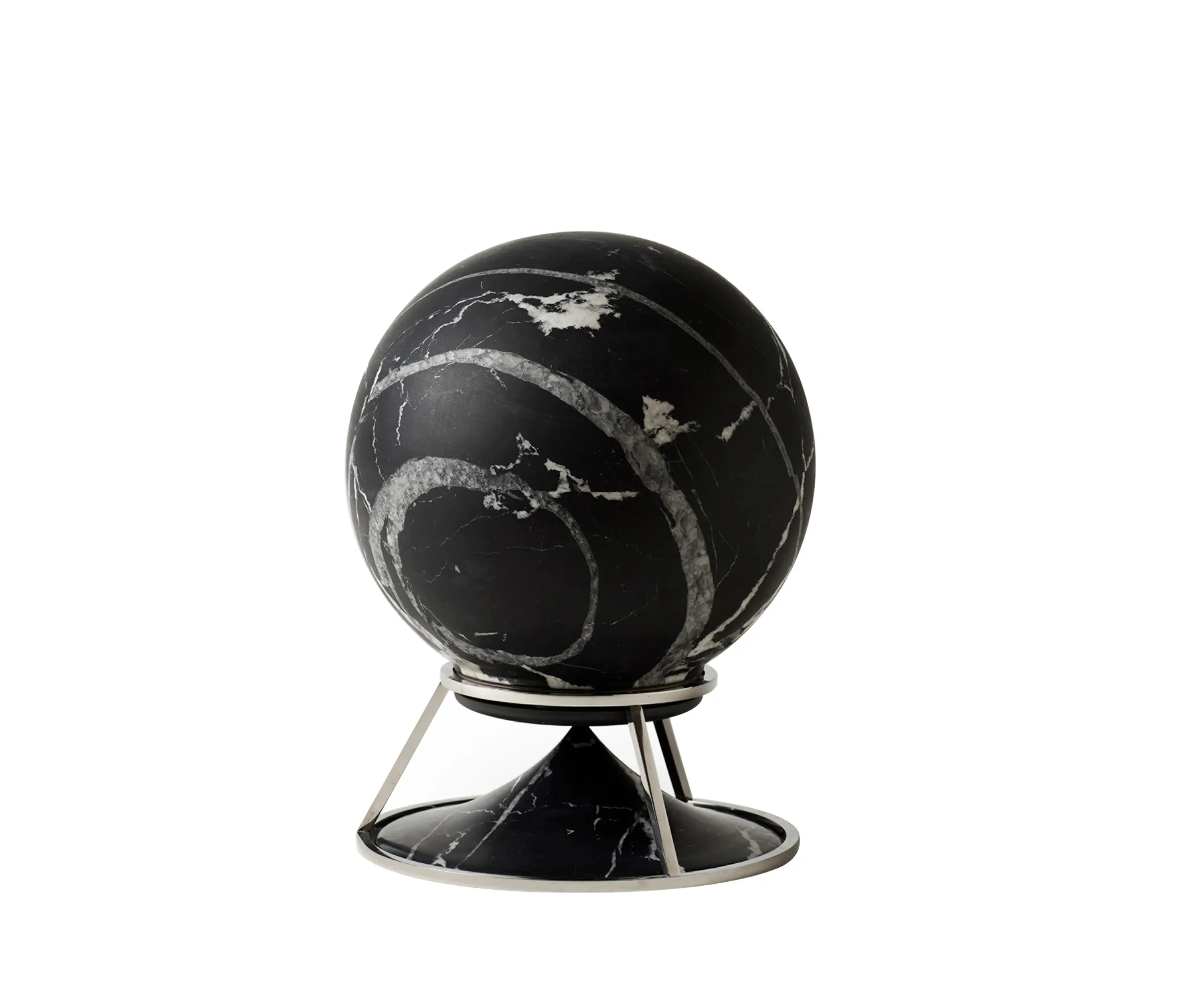

Sphere 360
About this product
Architonic ID: 1424713
Year of Launch: 2010
INFO>
The different proportions within the classic AS lines make the Sphere_360 the ideal solution when higher performance and volumes are required. Available in a wide range of materials and finishing, full-range or subwoofer, with two different options for the base design, Sphere adapts to any type of environment. Omnidirectional loudspeaker characterized by a full and warm tonal balance.
TECHNICAL DATA >
FULL RANGE SOUND OUTPUT
Speaker type: 6” coaxial
Nominal impedence: 8 Ω
Crossover: two way on board
Frequency range: 50-20,000 Hz (-6dB)
Sensitivity (1W-1m): 89 dB
Speaker Max Power: 300W
Speaker RMS Power: 150W
Recommended amplifi er power: 200W (Class D)
SUBWOOFER SOUND OUTPUT
Speaker type: 6” Woofer
Nominal impedence: 8 Ω
Crossover: DSP needed (HP 35 Hz 12dB/oct min; LP 120 Hz 12 dB/oct min)
Frequency range: 42-150 Hz (-6dB)
Sensitivity (1W-1m): 89 dB
Speaker Max Power: 300W
Speaker RMS Power: 150W
Optional LIGHTING MOOD
MATERIALS>
Body: Concrete (Grey, Black, White, Red); Marbles (Limestone, White Carrara, Black Marquina and other marbles) and Terracotta
Base: Brass (painted or oxidized) and 316L Steel (Satin or Polished)
Concept
The SPHERES are the AS "signature" speakers.
Representing wholeness and harmony, it subtly envisions the propagation of sound in circular waves.
Omnidirectional loudspeaker characterized by a full and warm tonal balance, the Sphere adapts to any type of environment. It is available in a wide range of materials
and finishing, full-range or subwoofer, with two different options for the base design,
The Lighting option is available for all variants of the Sphere line.
This product belongs to collection:
Specifications
Usage
Contract, Interior construction, Outdoor / Garden, Residential

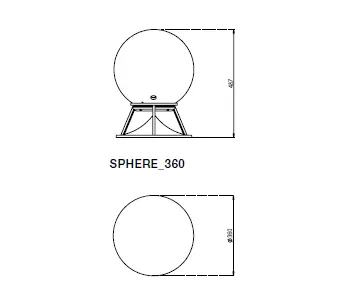

Design files
