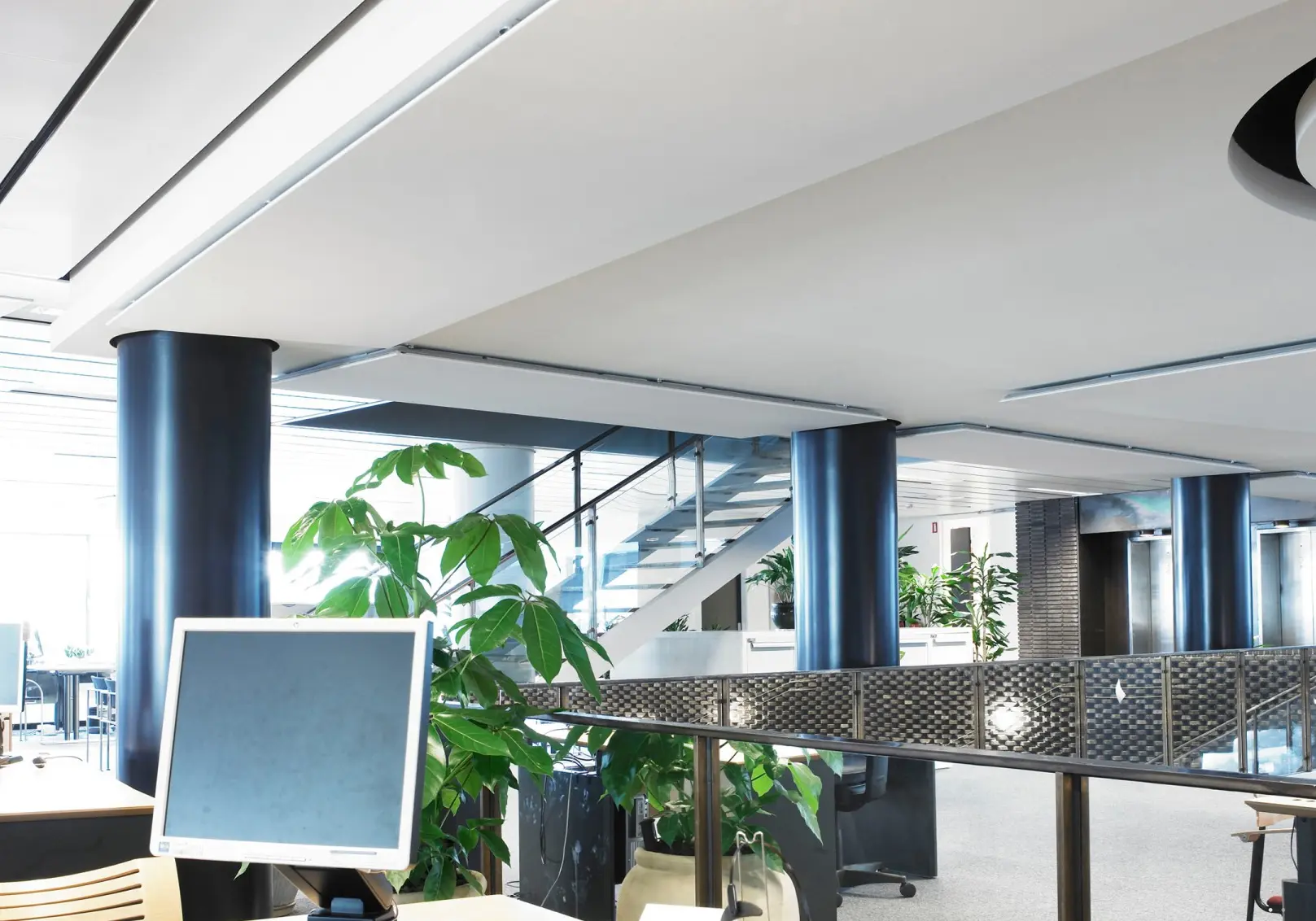

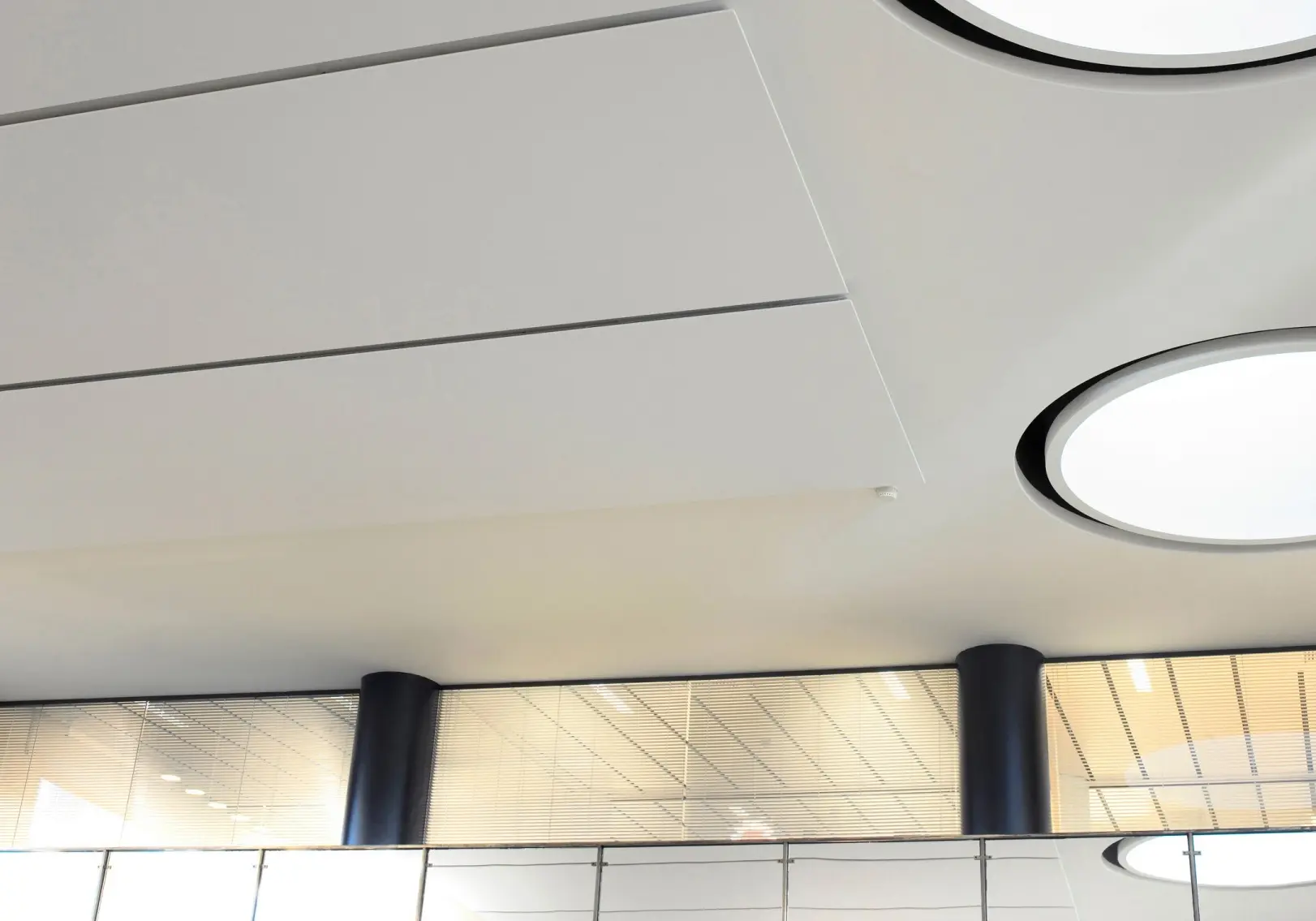

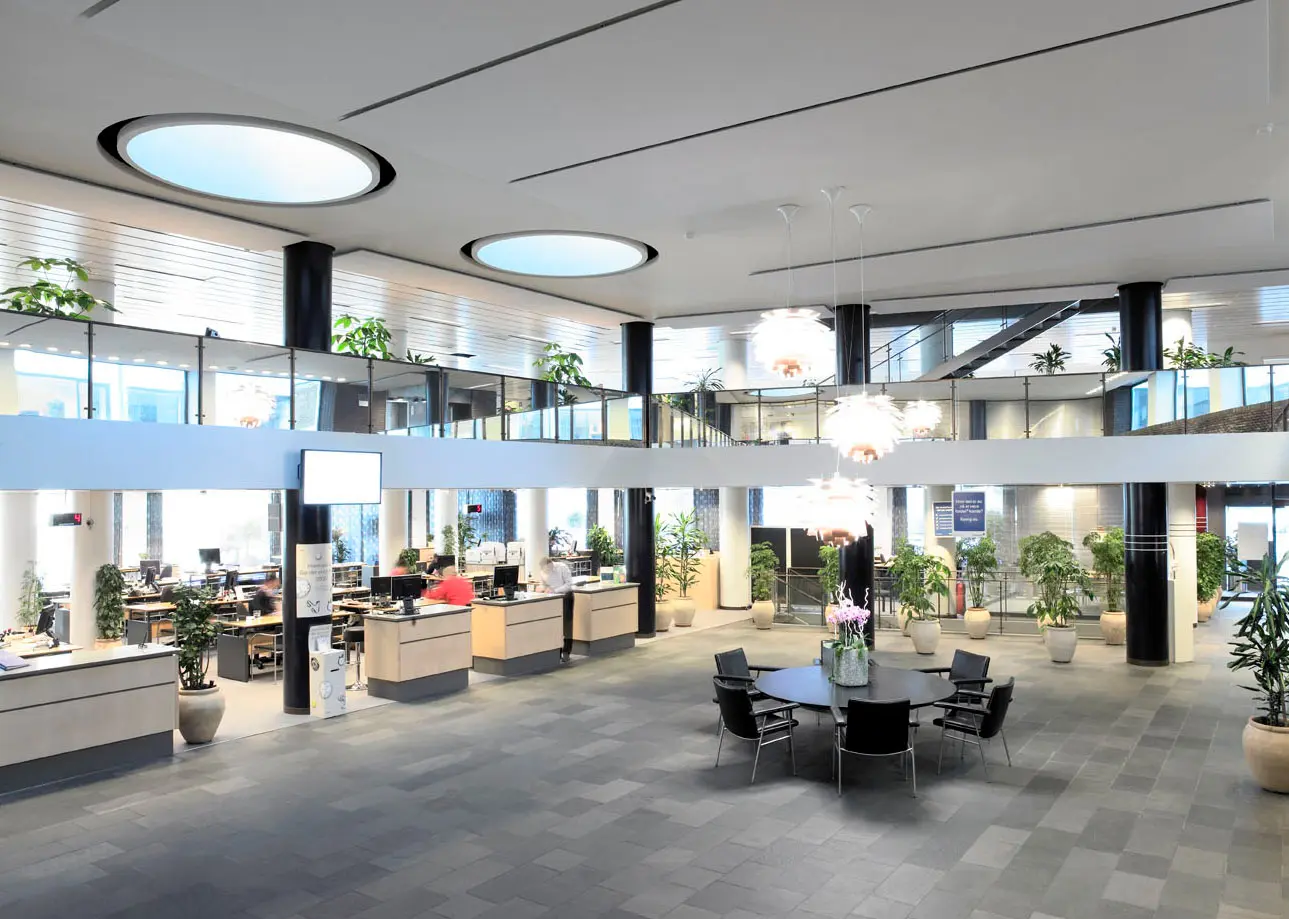

Soft Cells Broadline | Ceiling installation

Soft Cells Broadline delivers Class-A acoustic absorption, according to ISO 11654. It is appropriate for all rooms where a premium acoustic solution is required.

Featuring acoustic padding as an extra absorber behind the front textile layer, Soft Cells Broadline panels deliver broadband conditioning in all relevant octaves between 125 and 5,000 Hertz. In doing so, they deliver top-tier acoustic performance.

The acoustic performance is identical when installing Soft Cells Broadline to the ceiling or walls using the magnet components and creating a finished surface 55mm from the structural element.

At a glance

The patented aluminium frame has a hidden tensioning mechanism, which ensures that the covering textile stays perfectly taut

Thanks to the tensioning mechanism, the textile covering is unaffected by changes in temperature and humidity

Suitable for all kinds of interior

Easy to mount on walls and ceilings at any angle

Can be manufactured in large sizes

Selection of six standard fabric coverings, offering a total of 242 different colours

Can easily be taken down, reassembled and reupholstered to meet changing requirements. Optimum coverage of the entire frequency range, Class-A sound absorber

Choice of different mounting systems to best meet individual requirements

All Soft Cells systems installed by our Certified White Glove Technicians are covered by a 10 year technical guarantee

The Soft Cells specialists and architectural support work closely with the architects in developing customised solutions

Technical data

Applications: Interior walls and ceilings

Structural form: Single-sided, single-layer tensioned textile, with a 40 mm wide acoustic padding core

Dimensions: From 200 × 200mm to 2300 × 6000mm, depending on choice of textile

System depth: Wall mounted version: 55 mm from installation surface Ceiling mounted version with magnet: 55 mm from installation surface Ceiling mounted version with steel wire: min. 100 mm

Frame profile: Aluminium hollow section profile Height: 36 mm

Frame colour: Silver anodised

Acoustic performance

The textile chosen, Time 300, typifies the performance of most acoustically tested Soft Cells textiles. Acoustic results for specific textiles can be supplied upon request, or downloaded from www.softcells.com.

Mounting system

Walls: magnets Ceilings: magnets, steel wires or hinged ceiling solution

Textile: Standard fabric collection: Topas 2, Pro 2, Toto, Time 300, Remix 2, Divina 3. All textiles have been tested for sound absorption according to EN ISO 354.

Acoustic core: Incorporated 3 mm behind covering textile

Material: acoustic padding, 40 mm thick Rated as a Class A sound absorber, in accordance with DIN EN ISO 11654

Accessories

Hinges and magnets: If access is required from above, Soft Cells panels should be mounted with hinges and magnets.

Material: mild steel and die-cast aluminium alloy Overall depth of the panels from the face of the installation surface: 55 mm

Magnets: Allow for the dismantling of panels without tools. Suitable for mounting on walls and ceilings.

Material: steel, pot magnet Overall depth of the panels from the face of the installation surface: 55 mm

Steel wire: For ceiling mounting where a suspended ceiling is required.

Material: stainless steel wire Minimum dimension of the front side of the panel to the installation surface: 100 mm

End caps: For covering the small gap between wall and Soft Cells.

Material: aluminium Width: 55 mm, length adjusted to length or width of Soft Cells, max. 3000mm in one piece
