Smoothy 1
About this product
Architonic ID: 1409318
recessed for outdoor applications; recessed (ceiling, wall, floor); max 2W (max 700mA); 2.5W, 3.5W (24Vdc); Lumen output at source: 224 lm (3000K, 700mA, CRI 80), 168 lm (3000K, 2,5W, CRI 80); Delivered lumen output: 188 lm (3000K, 700mA, 22°, CRI 80), 141 lm (3000K, 22°, 2,5W, CRI 80); 1 power LED, 1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 13°, 22°, 30°, sharp 35°, 48°, diffuse; CRI: 80, 90; body in anodized aluminium, trim in AISI 316L stainless steel, screen in tempered, transparent extra-clear glass (optics version), screen in sandblasted, tempered extra-clear glass (diffuse version); Ingress protection: IP67; Impact resistance: IK08; Protection systems: IPS; Appliance class: III; Weight: 270 g; Dimensions: Ø54x64 mm
Concept

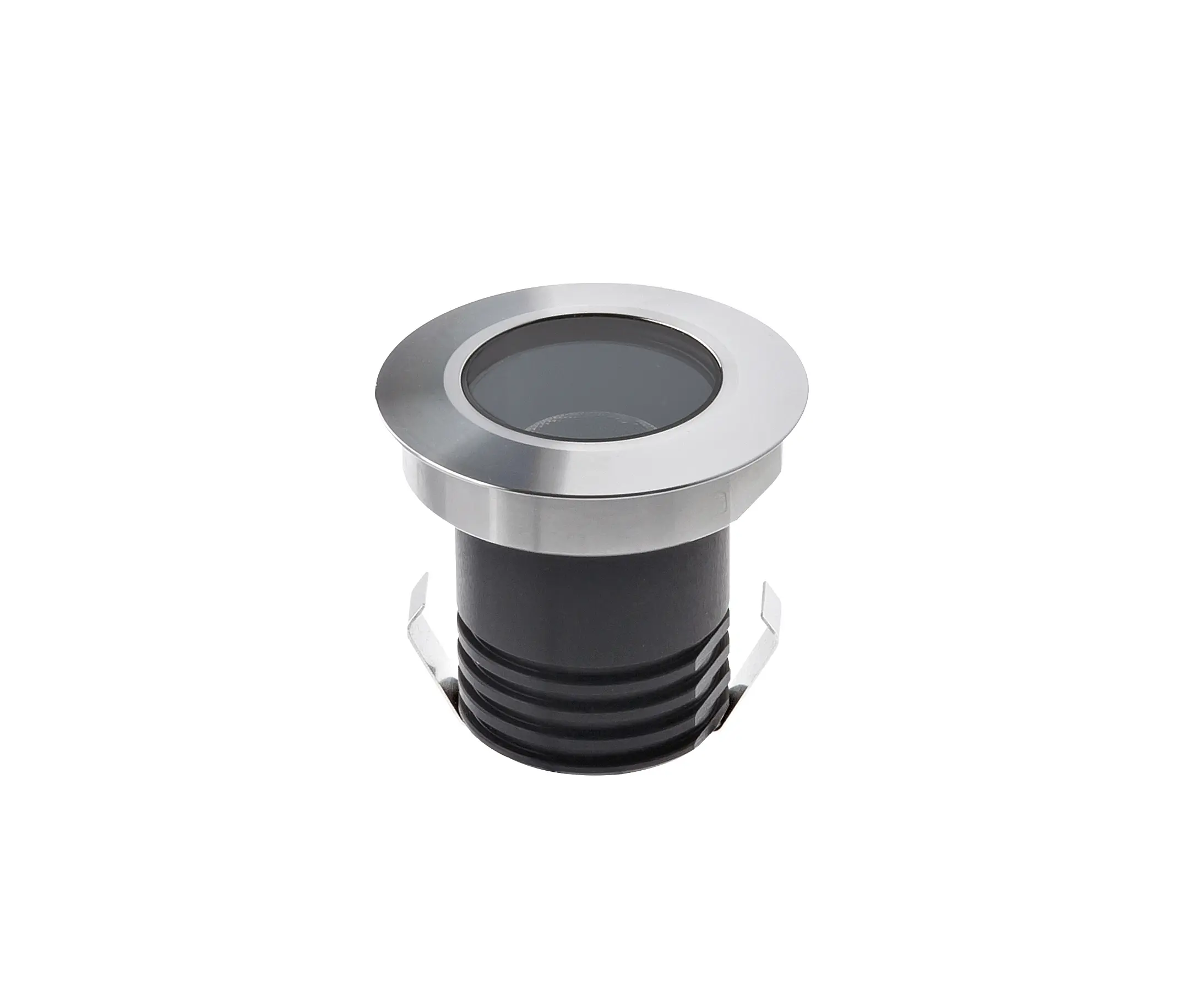

Smoothy is the family of outdoor recessed fixtures from L&L that features a pared-down design of a circular trim in stainless steel, with no visible screws.
The family offers a great variety of possible combinations: there is a choice of wattages and power supply units, fixed or tiltable optics, and LEDs with a colour rendering index of 80 or >90, as well as a wide range of optics to suit the chosen lighting solution. Anti-glare accessories complete the offer: a honeycomb louvre or a screen that is half transparent and half serigraphed black.
This product belongs to collection:
Specifications
Category
General lighting, Spotlights
Feature
LED lights, Orientation lights
Usage
Building construction, Contract, Outdoor / Garden, Urban space
