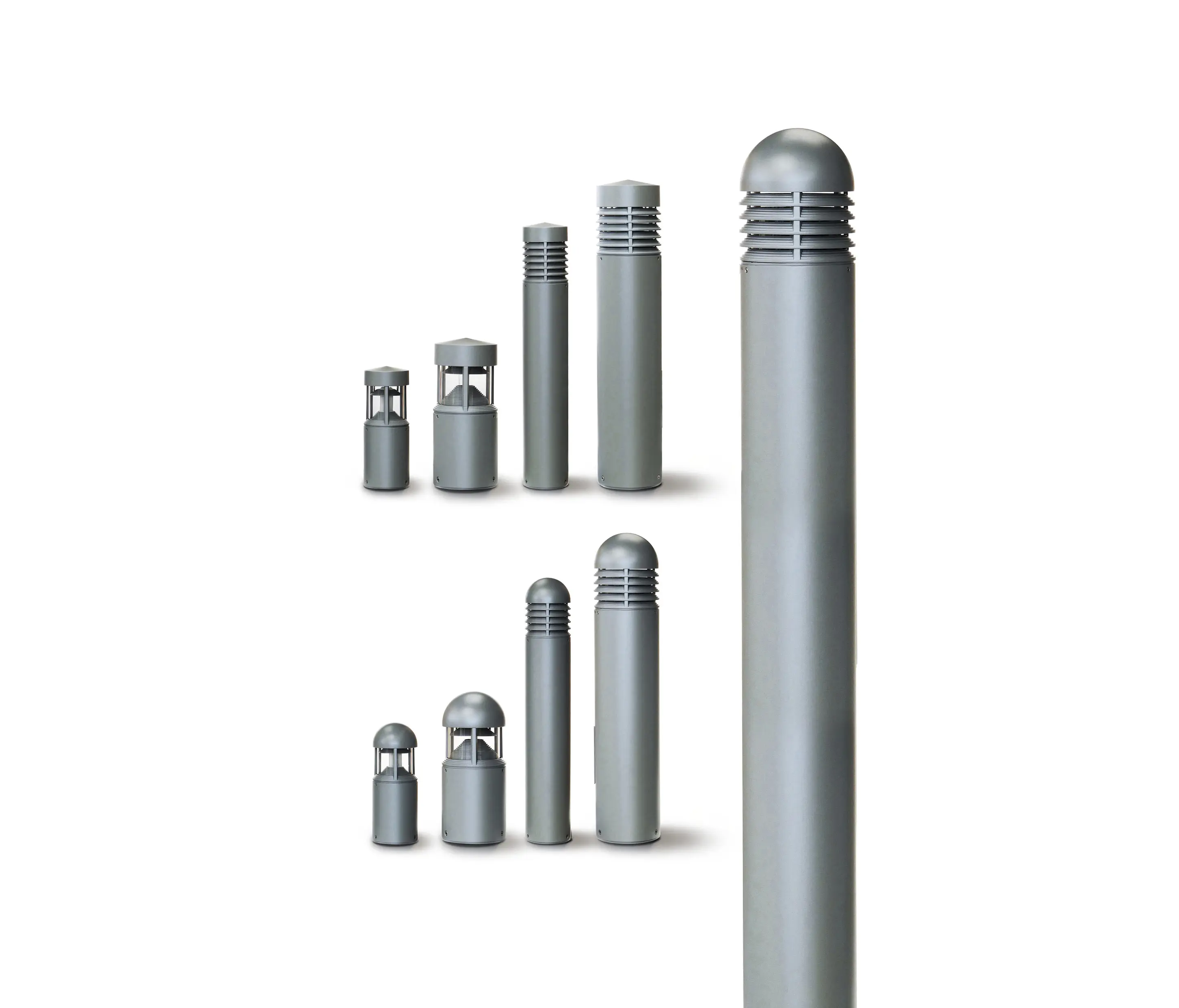

Column bollard H 250cm

HIT-CE/S 70W CLEAR E27

Rated luminaire luminous flux: 2268lm

Rated input power: 84W

Luminaire efficacy: 27lm/W (LOR: 36%)

Magnetic trasformer 230÷240V 50Hz

EEI=A3, LOSSES=12.2W

CE- ENEC 03

PRODUCT TYPE

Bollard fitting. IP rating IP 65

MATERIAL CHARACTERISTICS

Extruded EN AW-6060 aluminium profile, die-cast EN AB-47100 aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process : 3 Step Process

1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 10

LIGHTING PERFORMANCE

Clear polycarbonate lens with controlled downward light emission for avoiding any glare, UV-stabilised and vandalproof. Lamp fixed position. LOR 36%

WIRING

Is supplied with 2.1m cable H07RN-F and fast connector IP67 (Ø 12÷16 mm). With door for electrical inspections and connection box with fuses. Isolation: CLASS II. Available colours: Aluminium grey (cod.14). Weight: 22 Kg Glow Wire test: 750°C

Lamp not included.

This luminaire is compatible with bulbs of the energy classes: A+ (Regulation UE 874/2012).
